NEW W.F. WELLS M-36-3
Overview

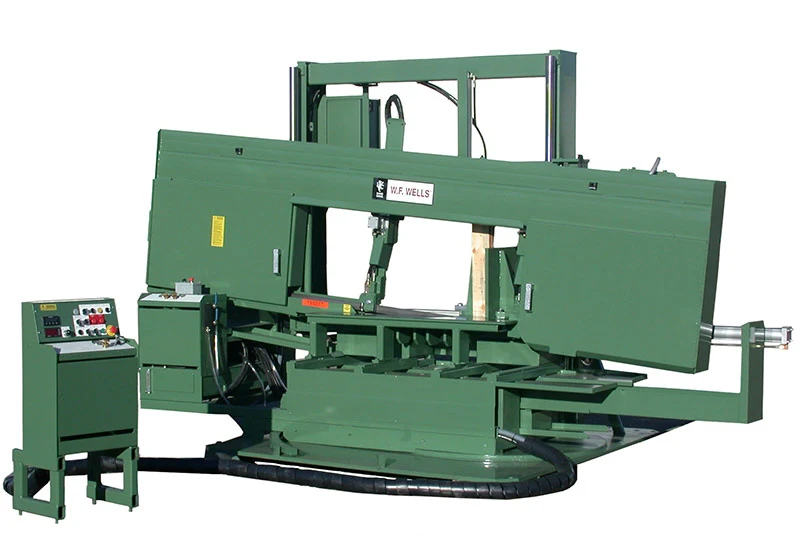

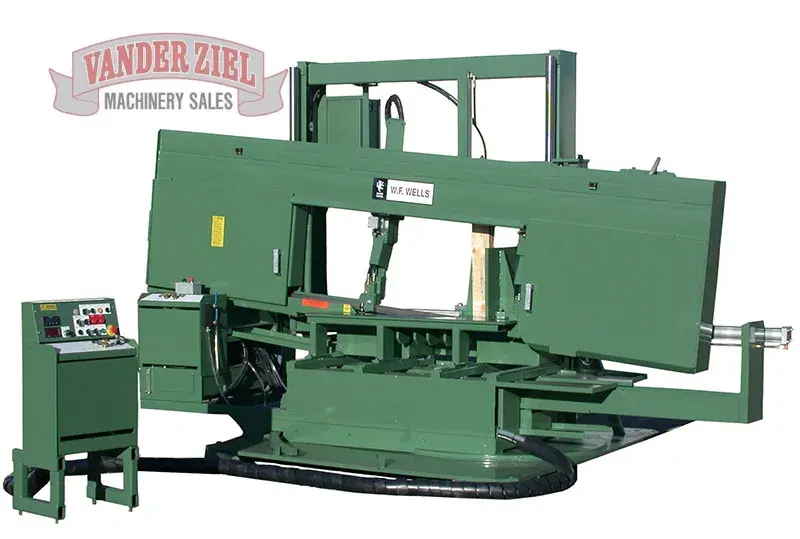

W.F. Wells 22" x 48" Semi-Automatic Miter Saw, Model M-36-3 - NEW
SKU#4020038
Machine
Specs
Specifications
Capacity: 22" H X 48" W @ 90°, 22" H X 36" W @ - 45°
22" H X 31 1/2 W @ + 45°
Frame Cant: 6°
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2" X .063" X 28′ 6"
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Band Wheel Size: 26"
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 34"
Outfeed Table: 7" X 52"
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Hydraulic Hold down, Saw Vise
Hydraulic Swivel Base with Miter Vise
Digital Angle Display
In Feed Roller
Free Standing Control Console
Blade Break/Stall Switch
Electronic Door Interlocks
Shipping Weight: 12,000 Shipping Dimensions....200"L x 98"W x 105"H
Electrics: Wired to NFPA 79 Machine Tool Standards
