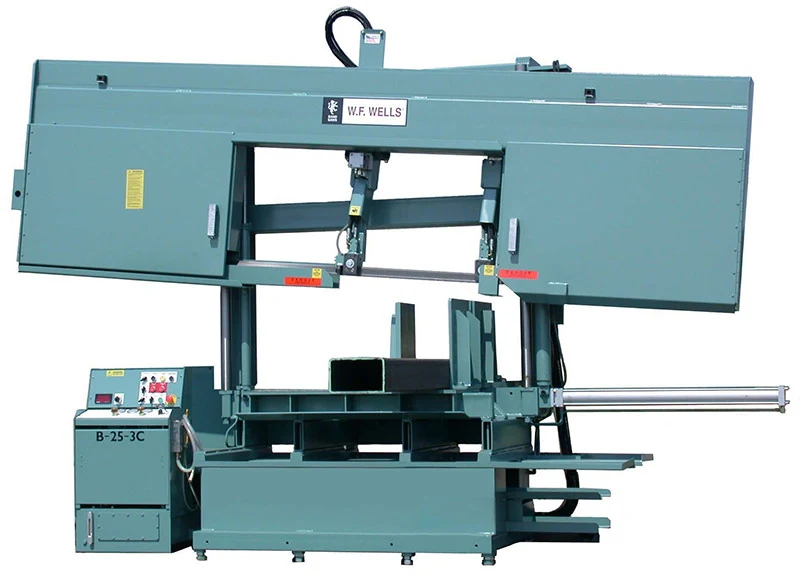

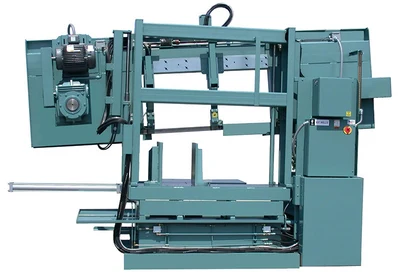

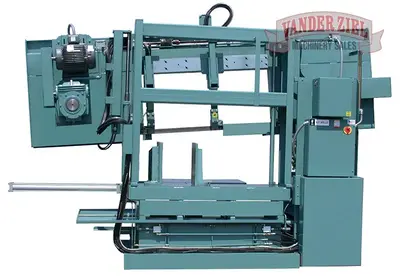

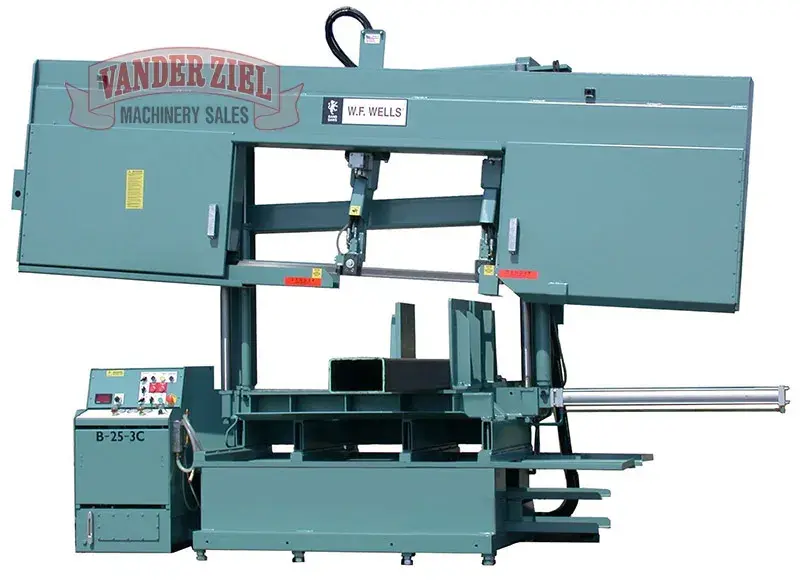

NEW W.F. WELLS B-25-3C

W.F. Wells 22″ x 40″ Semi-Automatic Horizontal Saw, Model B-25-3C – NEW

Machine Specifications
Capacity: Rectangular at 90° 22″ High X 40″ Wide (25″ Round, 24″ Square)
Rectangular at 45° 22″ High X 24″ Wide
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2″ X .063″ X 26′-6″
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 34″
Outfeed Table: 24″ X 40″
Vise Jaw Height: 17”
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Blade Tension Indicator
Blade Break/Stall Switch
Electronic Door Interlocks
Shipping Weight: 7,500 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 170” Length x 55″ Width x 105″ Height
