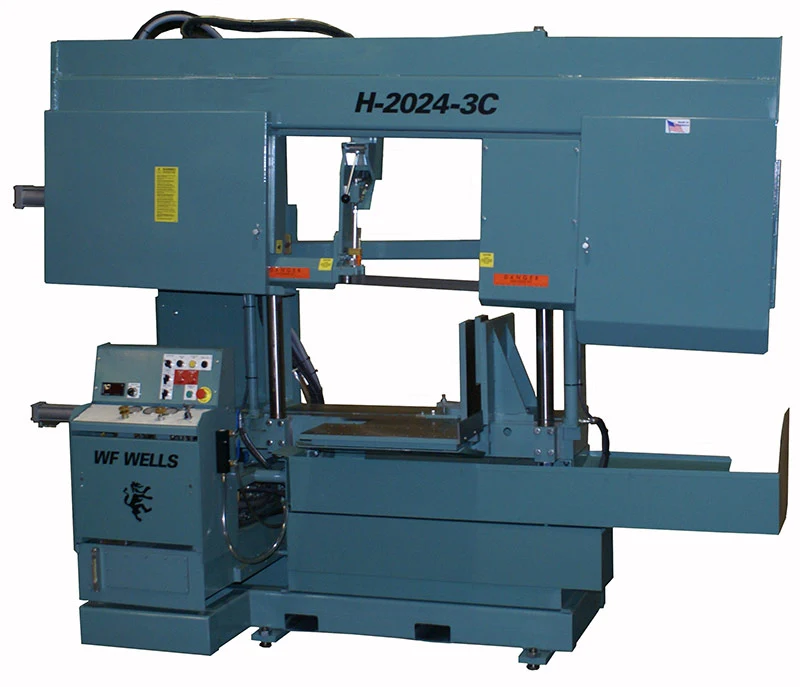

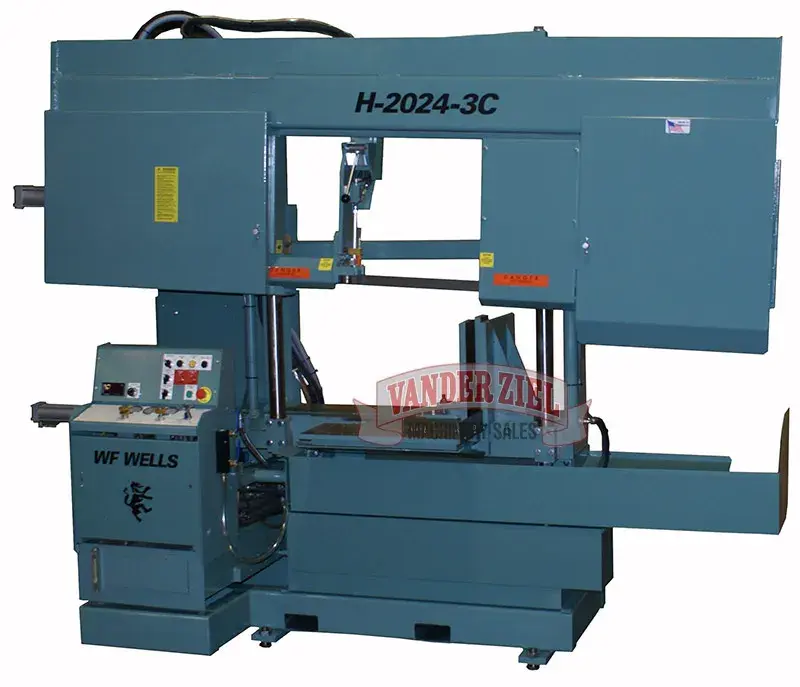

NEW W.F. WELLS H-2024-3C

W.F. Wells 19.5″ x 24″ Semi-Automatic Horizontal Saw, Model H-2024-3C – NEW

Machine Specifications
Capacity: Rectangular @ 90° 19-½” H x 24″ W, Round at 90° 20″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1½” X .050″ X 20′-0”
Blade Guide: Roller Guides with Carbide Inserts
Blade Tension: Hydraulic Order
Bandwheel Size: 22″
Vise: Manual or Full Stroke Hydraulic, 15”
Blade Drive: 10 HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Shipping Weight: 3,900 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Shipping Dimensions: 103”L x 50”W x 93”H
