NEW W.F. WELLS H-2024-1

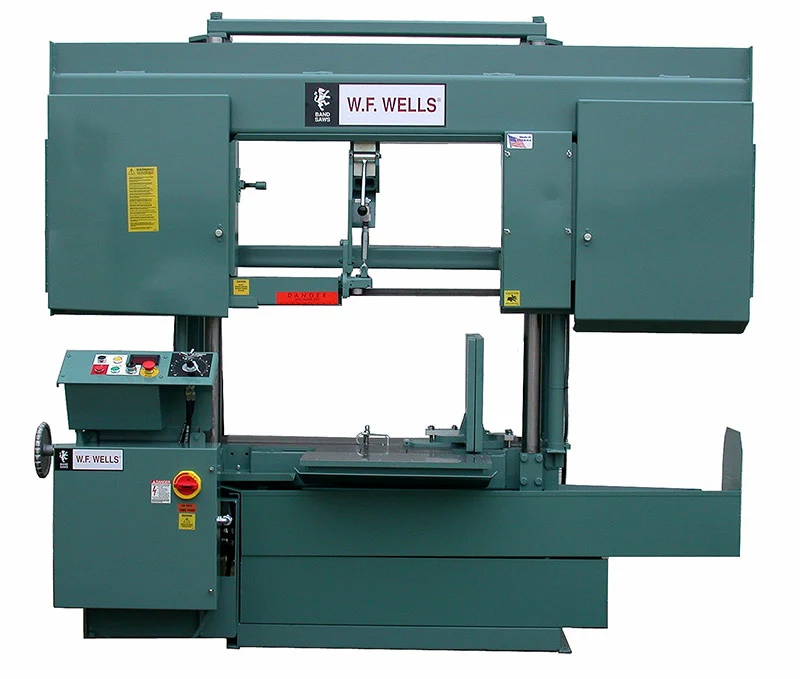

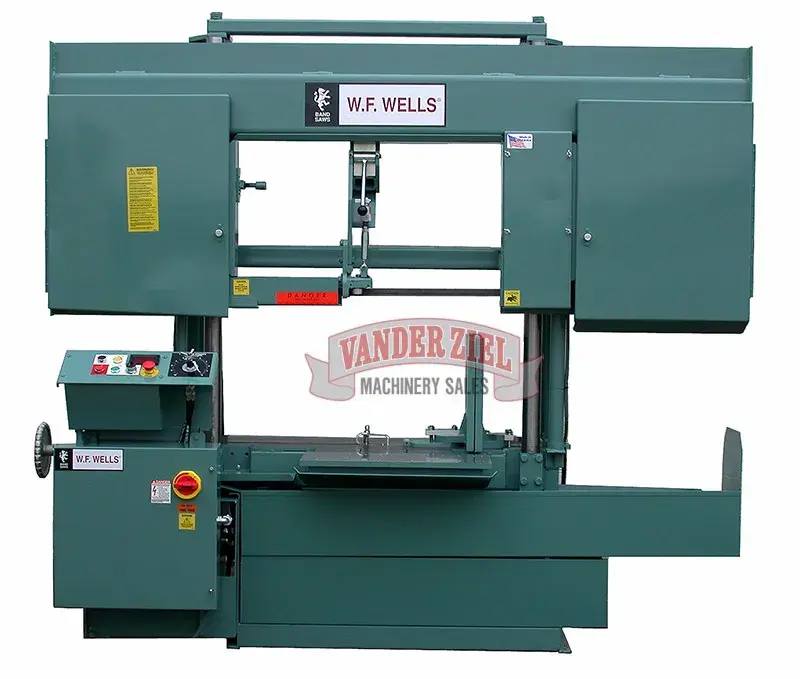

W.F. Wells 20″ x 24″ Semi-Automatic Horizontal Saw, Model H-2024-1 – NEW

Machine Specifications
Capacity: Rectangular at 90º 20” High x 24” Wide, Round at 90º 20” Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042” X 17′ -8″
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Manual with Indicator
Bandwheel Size: 20”
Vise: Manual, 15”
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: ¾ Gallon
Hydraulic Drive: ⅓ HP Motor
Work Height: 26”
Shipping Weight: 2,800 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Shipping Dimensions: 101”L x 40”W x 86”H
