NEW W.F. WELLS F-1630-2
Overview
Description

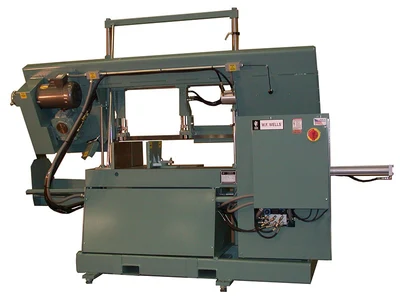

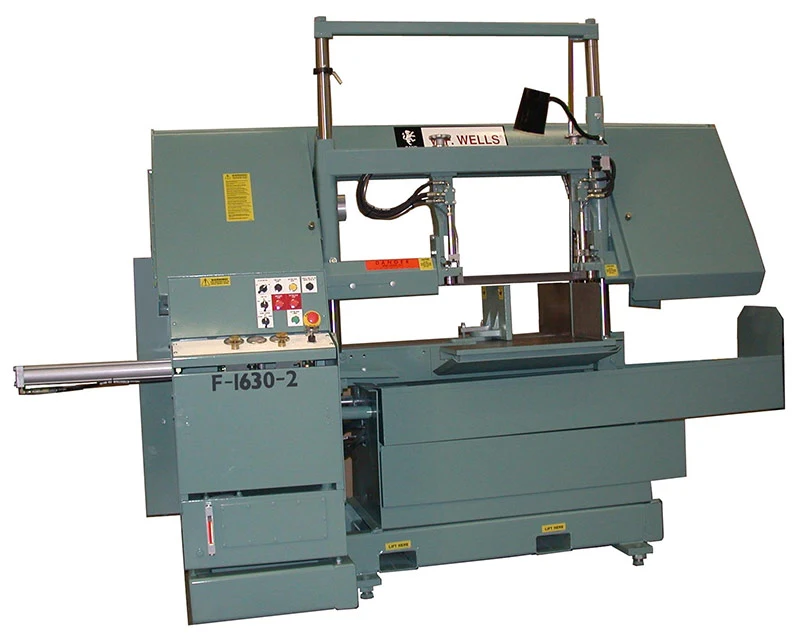

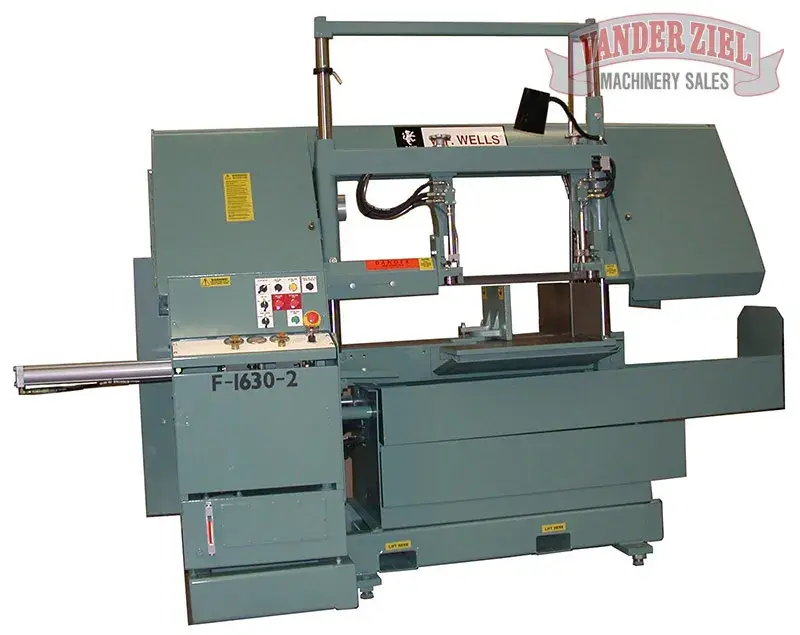

W.F. Wells 16″ x 30″ Semi-Automatic Horizontal Saw, Model F-1630-2 – NEW
Specifications
Machine Specifications
Capacity: Rectangular at 90º 16″ High x 30″ Wide, Round at 90º 16″ Diameter
Rectangular at 45º 16″ High X 13″ Wide, Round at 45º 13″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 16’8″
Sawing Feed: Variable, Hydraulic
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20″
Vise: Hydraulic, Full Stroke, 8-1/2”
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Shipping Weight: 2,700 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 118″ Length x 52″ Width x 88″ Height
