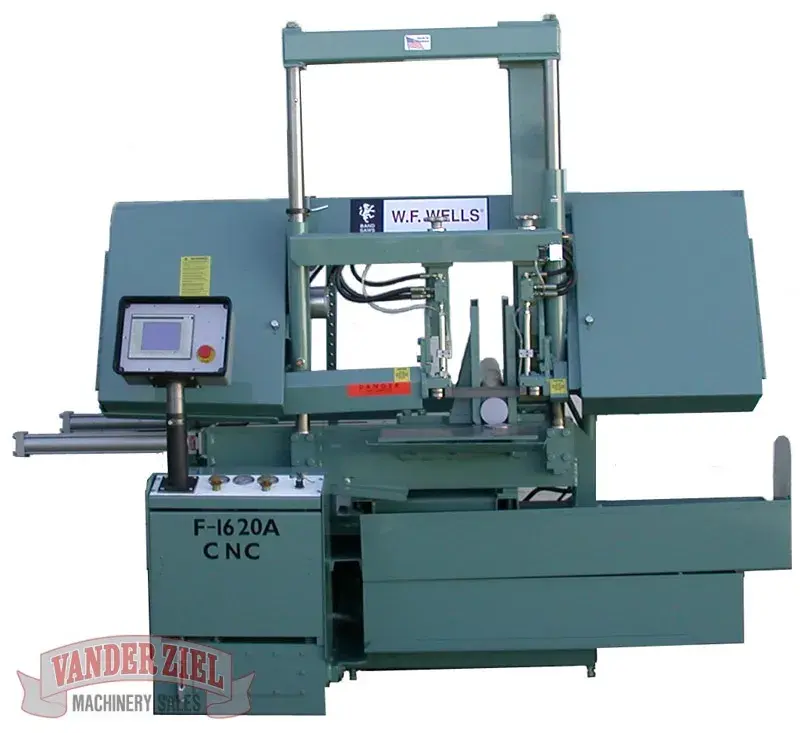

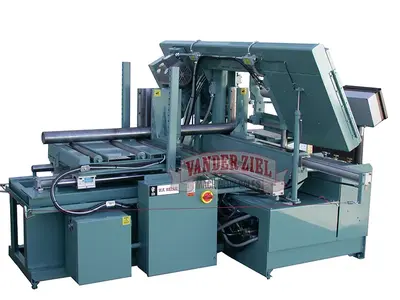

NEW W.F. WELLS F-1620-A CNC

W.F. Wells 16" x 20" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-1620-A CNC - NEW
SKU#4020027
Machine

Specifications

Capacity: Rectangular at 90º 16" High x 20" Wide, Round 16" Diameter

Weight Capacity: 5,000 lbs

Blade Speed: 60-500 SFPM

Blade Size: 1 1/4" X .042" X 15′

Blade Guide: Roller Guides with Carbide Inserts

Vise: Hydraulic, Full Stroke, 15" High

Bandwheel Size: 20"

Blade Tension: Hydraulic

Blade Drive: 7 1/2 HP, AC Vector Drive

Sawing Force: 0-750 lbs

Coolant Capacity: 15 Gallons

Hydraulic Capacity: 20 Gallons

Hydraulic Drive: 2 HP Motor

Work Height: 35"

Barfeed Projection: 0 - 25" CNC Controlled

Shuttle Indexes: Unlimited

Projection Accuracy: +/-.002"

Remnant End: 4"

CNC Programmable Controller with Color Touch Screen

500+ Job Selection

Automatic Kerf Compensation

Blade Break/Stall Switch

Bed and Vise Wear Strips

Shipping Weight: 4,000 lbs

Electrics: Wired to NFPA 79 Machine Tool Standards

Machine Dimensions: 104" Length x 101" Width x 88" Height
