NEW W.F. WELLS F-16-1

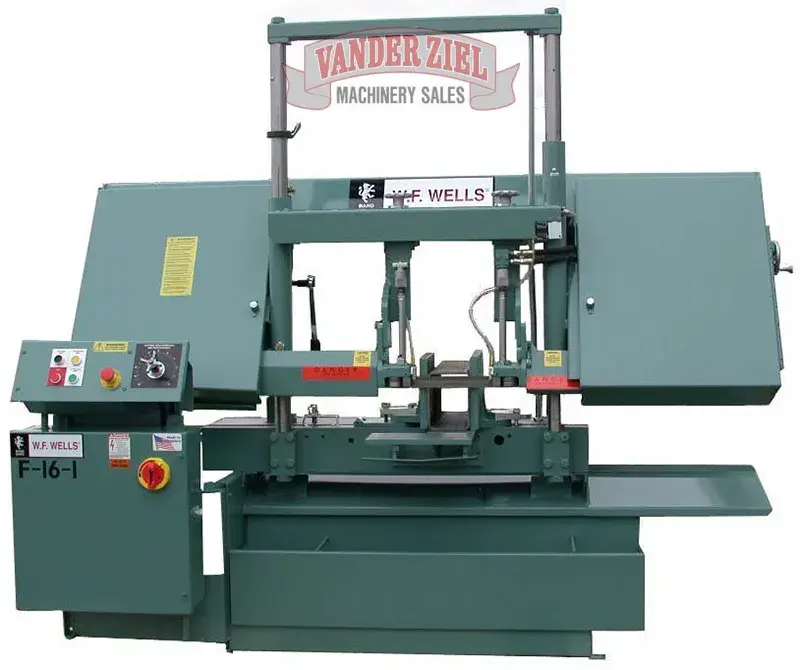

W.F. Wells 16" x 20" Semi-Automatic Horizontal Saw, Model F-16-1 - NEW
SKU#4020004
Machine

Specifications

Capacity: Rectangular at 90° 16" High x 20" Wide, Round at 90° 16" Diameter
Rectangular at 45° 16" High X 9" Wide, Round at 45° 9" Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-425 SFPM
Blade Size: 1 1/4" X .042" X 15′
Sawing Feed: Variable, Hydraulic
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Manual with Indicator
Bandwheel Size: 20" Voltage
Vise: Manual, 8-1/2" 208-60-3
Blade Drive: 7 1/2 HP, 3ph, AC Vector Drive 230-60-3
Sawing Force: 30-120 lbs 460-60-3
Coolant Capacity: 15 Gallons 575-60-3 (5 HP)
Hydraulic Capacity: 3/4 Gallon
Hydraulic Drive: 1/3 HP Motor
Work Height: 26"
Shipping Weight: 2,100 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 97" Length x 49" Width x 83" Height
