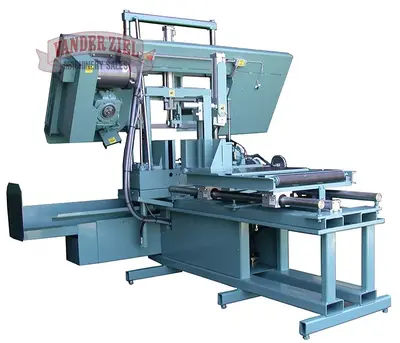

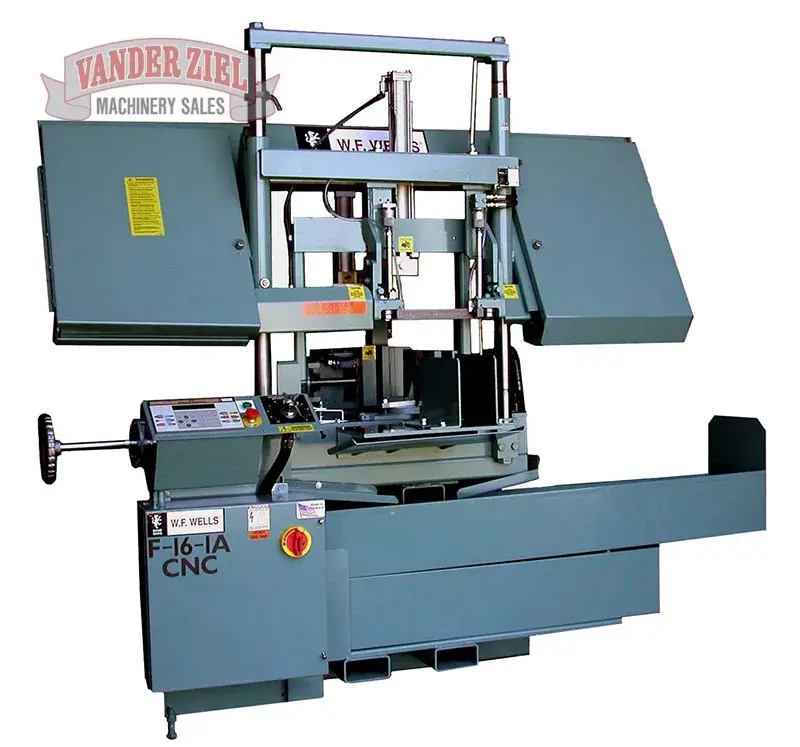

NEW W.F. WELLS F-16-1A CNC

W.F. Wells 16" x 18" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-16-1A CNC - NEW
SKU#4020026
Machine

Specifications

Capacity: Rectangular at 90° 16" High x 18" Wide, Round 16" Diameter

Weight Capacity: 5,000 lbs

Blade Speed: 60-425 SFPM

Blade Size: 1 1/4" X .042" X 15′

Blade Guide: Roller Guides with Carbide Inserts

Vise: Air, 8 1/2" High

Bandwheel Size: 20"

Blade Tension: Manual with Indicator

Blade Drive: 7 1/2 HP Variable Speed, AC Vector

Sawing Force: 30-120 lbs

Coolant Capacity: 15 Gallons

Hydraulic Capacity:  3/4 Gallon

Hydraulic Drive:  3/4 HP Motor

Work Height: 35"

Barfeed Projection: Hydraulic 0-25" CNC Controlled

Shuttle Indexes: Unlimited

Projection Accuracy: +/-.002"

Remnant End: 12"

CNC Programmable Controller with Color Touch Screen

Machine Diagnostics & Programming Prompting

99+ Job Selection

Automatic Kerf Compensation

Blade Break/Stall Switch

Fork Lift Pockets in Base

Tipoff Worktable: 19 1/2" Wide x 15 1/2" Deep

Shipping Weight: 3,250 lbs

Electrics: Wired to NFPA 79 Machine Tool Standards

Machine Dimensions: 93" Length x 90" Width x 86" Height
