NEW W.F. WELLS H-1051-2GRS

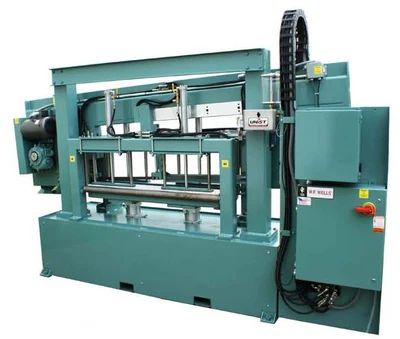

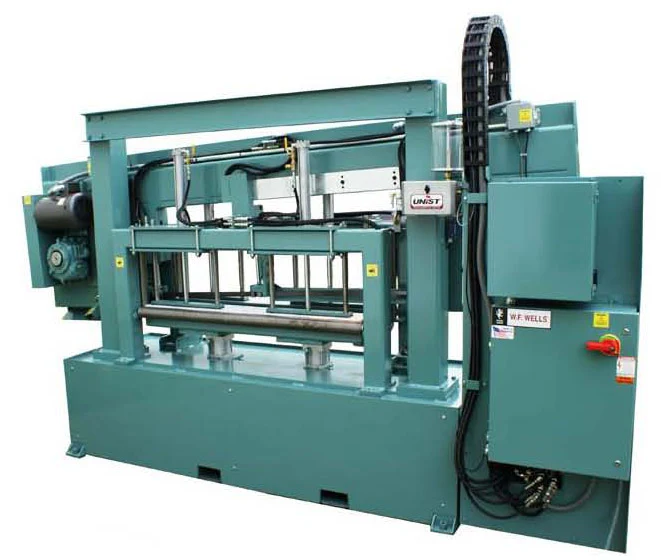

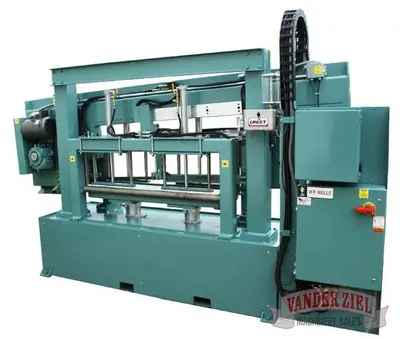

W.F. Wells 10″ x 51″ Semi-Automatic Horizontal Saw, Model H-1051-2GRS – NEW

Machine Specifications
Capacity: Rectangular, 10” High x 51” Wide, 3° Canted Frame
Weight Capacity: 5,000 lbs – with Bed in Full Upper Position
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042” X 22′ -3″ – with Easy Change Tilt Feature
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Full Time Hydraulic
Bandwheel Size: 20”
Vises: Vertical (4), Both Sides of Blade
Front and Back Independent with Arma Plate Surface and Vertical Stationary Datum Rollers
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-500 lbs
Coolant: Mist System, 32 oz Capacity
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor – Full Time
Saw Bed: 35” Work Height
Hydraulic Saw Bed Raise/Lower Feature with Replaceable UHMW Wear Surface(s) and Horizontal Infeed and Outfeed Rollers
Cutting Head Traverse: Linear Motion Ball Rail
Laser Cut Line: Wired In
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 140” Wide x 48” Deep x 86” High
Shipping Weight: 4,500 lbs
Fork Lift Pockets in Base: Side Loaded
