NEW ELLIS 4000

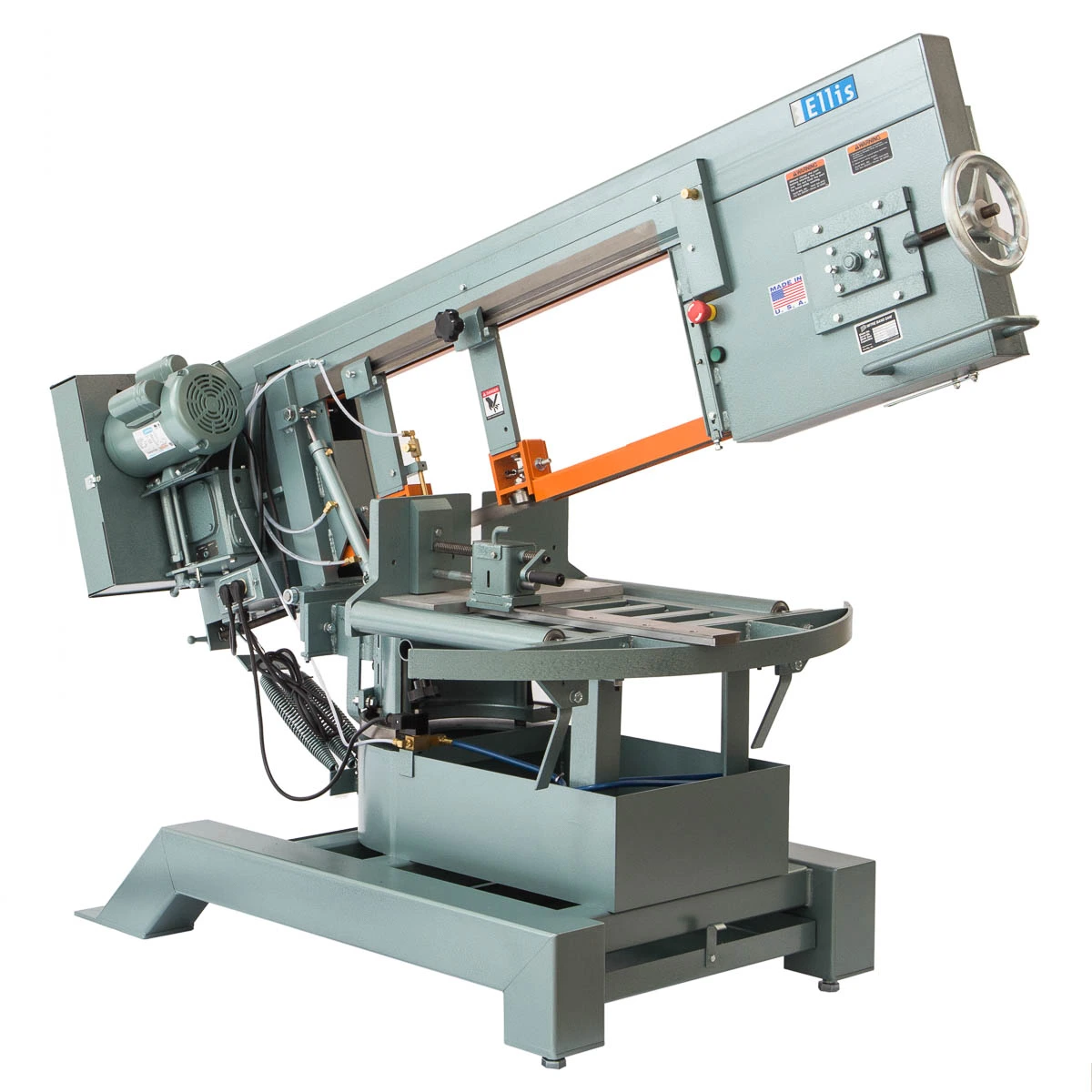

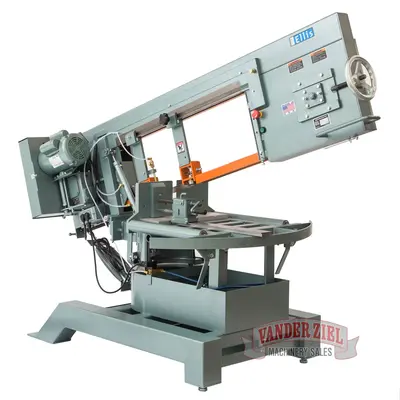

Ellis 13″ x 16″ Horizontal Saw, Model 4000 – NEW

Specifications:
Capacity
(90° & 45°)
13-1/2” Round at 90°
12” Pipe at 90°
22” Flat at 90°
13” H x 16” W Tube at 90°
13-1/2” Round at 45°
12” Pipe at 45°
14” Flat at 45°
13” Square Tube at 45°
Blade Speeds (variable)
60-180 FPM
Blade Size
15’0” x 1-1/4”
Feed Control
Hydraulic Adjusting
Vise
Quick Adjusting Screw Type
Shut Off
Automatic
Motor – Standard
2 H.P. 220 Volt Single Phase
Optional
3 PH 220-440-460-480-575
Shipping Weight
1250 lbs.
Size
Table Height 29-3/8”
Length 90”
Width 43-1/4”
Height 50”
Construction
Heavy Steel; Welded & Machined for Accuracy & Durability
Sealed Oil Bath Worm Gear
Standard
Removable Chip Tray
Standard
Air  System
Standard
Table Back 7-1/4”
Standard
*Specifications are subject to change without notice
