NEW ELLIS 1800

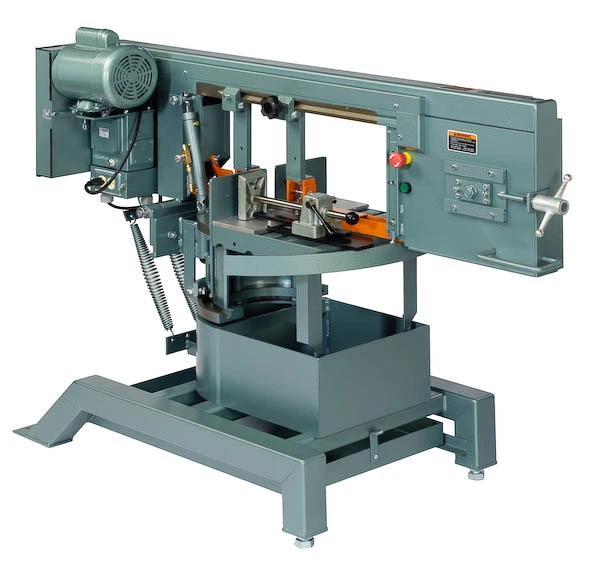

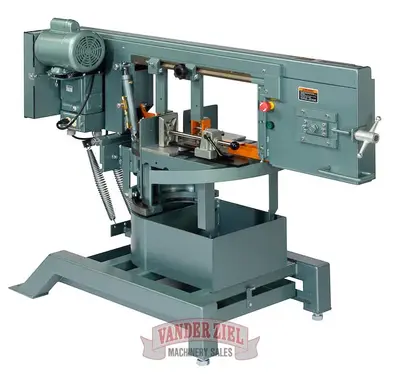

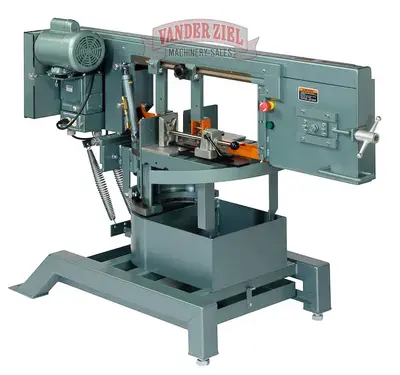

Ellis 10″ x 11″ Horizontal Saw, Model 1800 – NEW

Specifications:
Capacity
(90° & 45°)
11” Round at 90°
10” Pipe at 90°
14” Flat at 90°
11” H x 10” W at 90°
9” Round at 45°
8” Pipe at 45°
9” Flat at 45°
11” H x 6” W at 45°
Blade Speeds (3)
55-115-230 FPM
Blade Size
11’0” x 1”
Feed Control
Hydraulic Adjusting
Vise
Quick Adjusting Camlock
Shut Off
Automatic
Motor – Standard
1 H.P. 110/220 Volt Single Phase
Optional
3 PH 220-440-460-480-575
Optional
Mobil Unit Kit – Dual Wheel
(Must be factory installed!)
Shipping Weight
650 lbs.
Size
Table Height 28”
Length 66”
Width 29-3/8”
Height 47”
Sealed Oil Bath Worm Gear
Standard
Removable Chip Tray
Standard
Construction
Heavy Steel; Welded & Machined for Accuracy & Durability
*Specifications are subject to change without notice
