NEW DOALL 400S

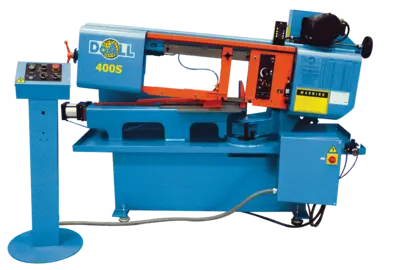

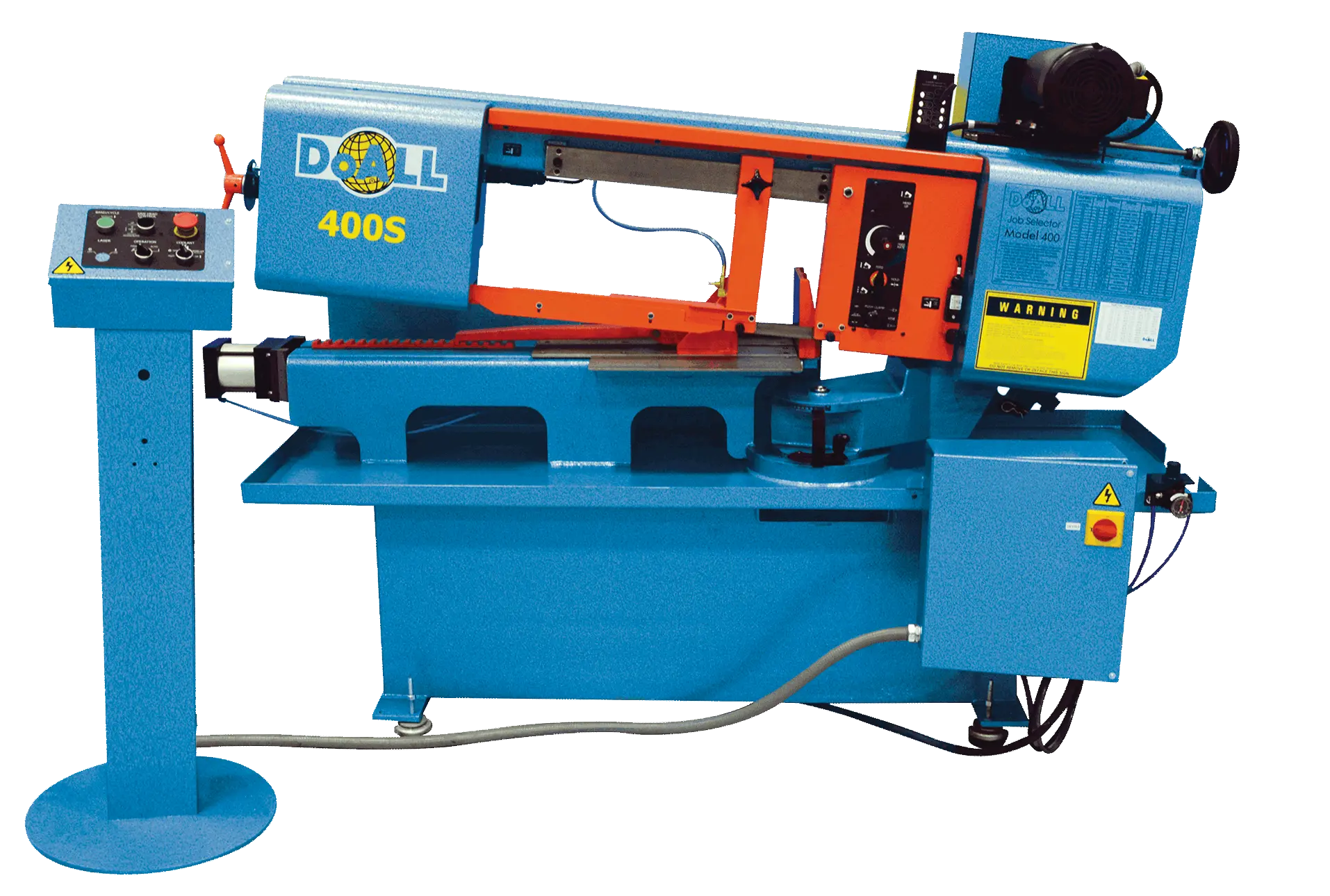

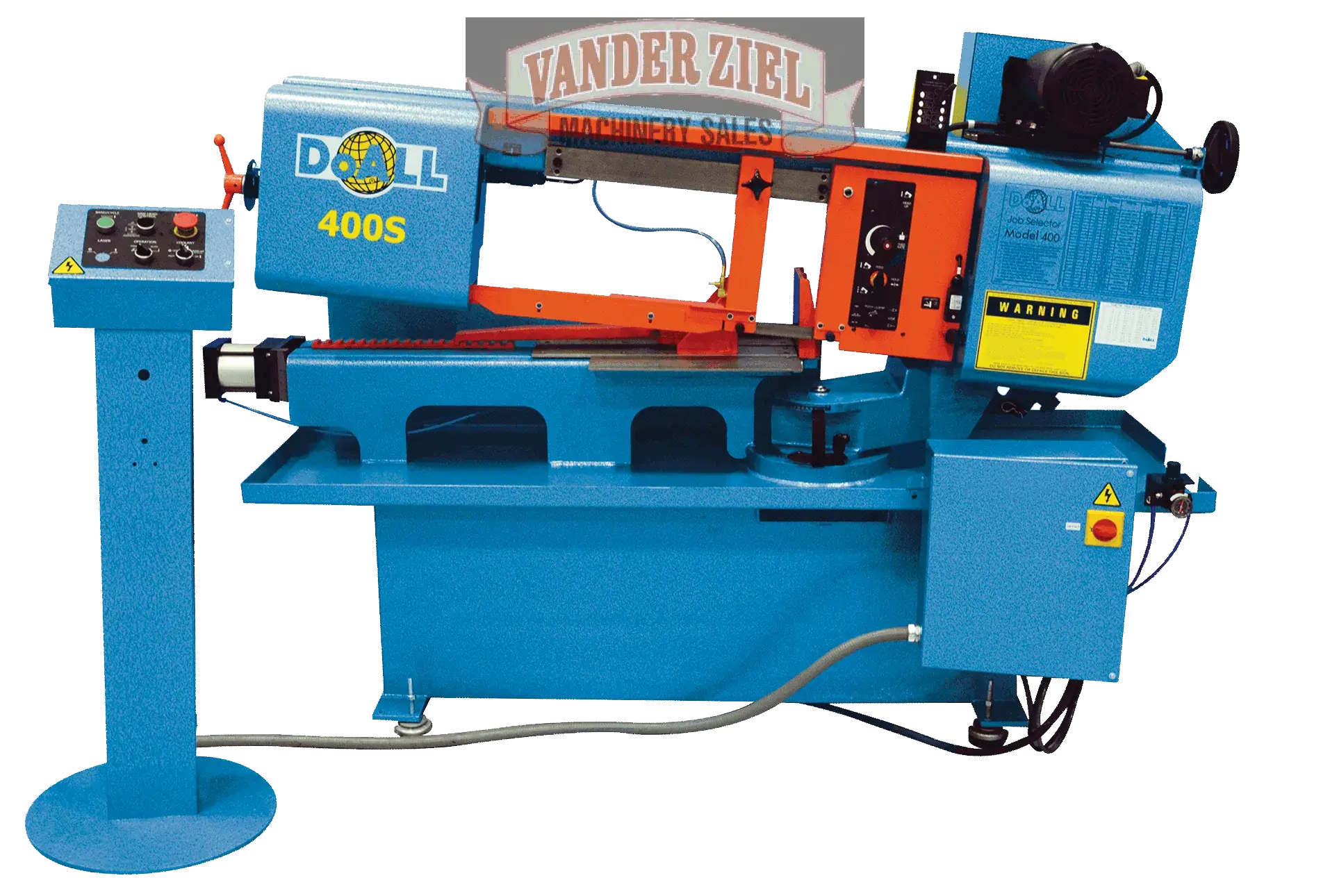

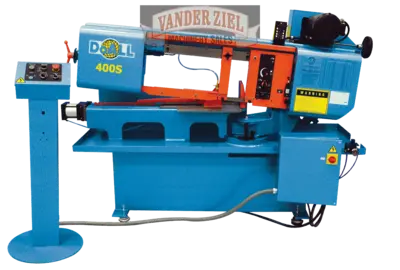

DoAll 9″ x 16″ Horizontal Saw, Model 400S – NEW

Machine Capacity: 9″ x 16″ (229×406 mm)
Production Level: Low
The DoALL 400S general purpose band saw is part of the StructurALL® family of horizontal metal cutting scissor saws. Swiveling 45 degrees, it’s the ideal machine for the small to medium fabricator or machine shop, looking to make extremely accurate (straight or miter) cuts in smaller quantities. The 400S features a 9″ (229mm) high x 16″ (406mm) wide capacity of rectangles and 10-3/4″ (273mm) rounds. This 400S manual machine can be equipped with a variety of options to further ease operation, such as pneumatic head-lift and pneumatic vise attachments.

Capacity at 90° Rectangle: 9″ x 16″ (229x406mm)
Capacity at 90° Round: 10-3/4″ (273mm)
Capacity at 45° Rectangle: 9″ x 10-3/4″ (229x273mm)
Capacity at 45° Round: 10-3/4″ (273mm)
Recommended Band Type: 1″ x 0.035″ (25×0.89mm)
Maximum Band Length: 158″ (4,013mm)
Band Speed: Variable, 105-275 fpm (32-82mpm)
Band Tension: Spring Loaded by Hand Wheel
Feed Control: Infinitely Variable, Hydraulic
Head: Counter-Balanced
Vise: Manual
Wheels: 14.5″ (368mm) diameter, Cast Iron
Material Pass Line Height: 29-1/8″ (740mm)
Table Capacity: 1800 lbs (816kg)
Floor Space Required: 87x 42×55″ (2210x1067x1397mm)
Weight: 1200 lbs (544kg)
Standard Equipment:
Swivel head to 45 degrees
Recirculating coolant system
Saw guides, spring-loaded, solid carbide inserts
Rapid saw head approach control
Band door interlocks
Fine adjustment head feed control
Complimentary coolant package
Powered band brush
Replaceable steel wear plates on bed
Discharge tray
Shovel rake
Instruction plate with sawing recommendations
Saw blade guard
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
