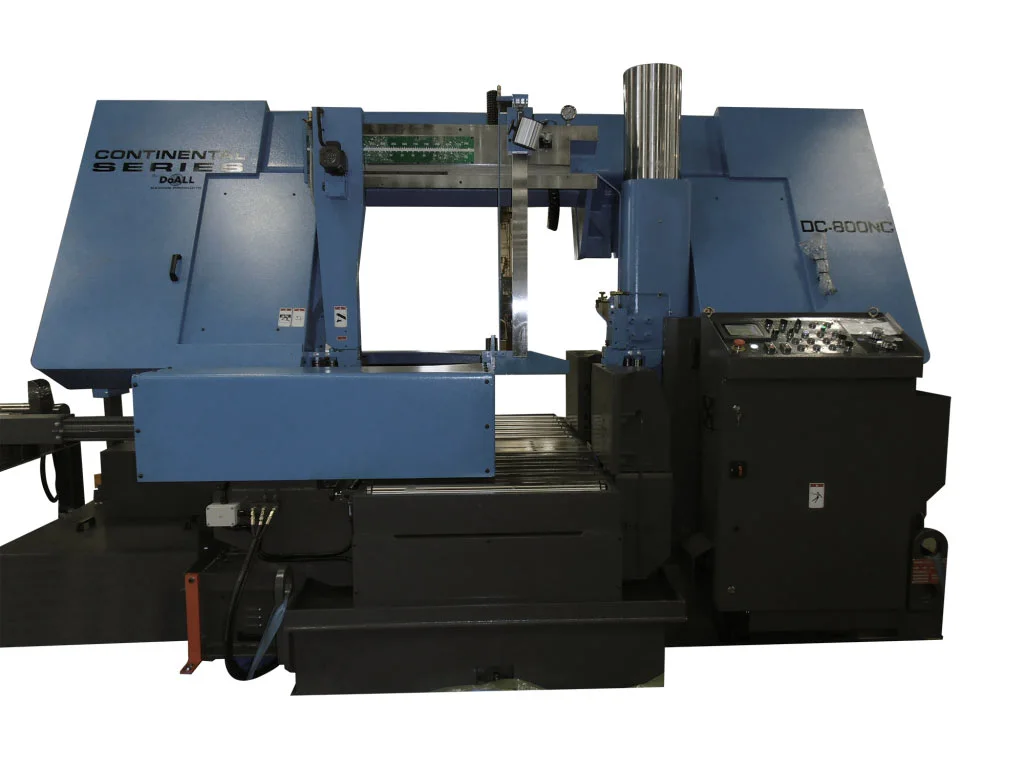

NEW DOALL DC-800NC

DoAll 39″ x 31″ Production Horizontal Saw, Model DC-800NC – NEW

Machine Capacity: 39.3″ x 31.4″ (998x800mm)
Production Level: High
The DC-800NC Continental Series™ high production horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-800NC offers automatic operation, numerical control and features solid heavy-duty construction, which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

Cutting Capacity Round: 7.8″ – 31.4″ (200-800mm)
Cutting Capacity Rectangle: 39.3″ x 31.4″ (1000 x 800mm)
Bundle Capacity Maximum: 25-5/8″ x 14-5/8″ (650 x 370mm)
Bundle Capacity Minimum: 14-1/8″ x 10-1/4″ (360 x 260mm)
Band Saw Blade: 2-5/8″ x 346″ (67mm x 8788mm)
Band Speed: 52 – 275 FPM (16-85 m/min)
Band Drive: 15 HP (11.1kW)
Hydraulic Pump: 3 HP (2.23kW)
Hydraulic Tank Capacity: 34 Gal. (130 Liters)
Coolant Tank Capacity: 63 Gal. (240 Liters)
Automatic Index Length Single: 15.75″ (400mm)
Automatic Index Length Multiple: 236.2″ (6000mm)
Material Pass Line Height: 36.2″ (920mm)
Machine Weight: 25,350 lbs. (11500kg)
Standard Equipment:
PLC control for all electric and hydraulic functions
Infinitely variable speed controlled by VFD
Hydraulic retractable shuttle vise material indexer
Rapid and creep speed index vise control
Multi-step full stroke vises with split front vise and variable vise pressure control
Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One 6 ½ ft. (2M) conveyor
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
