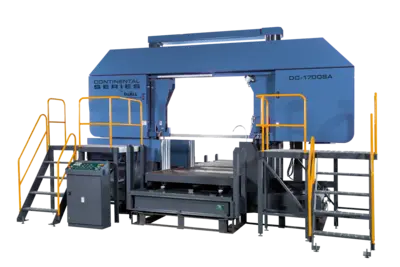

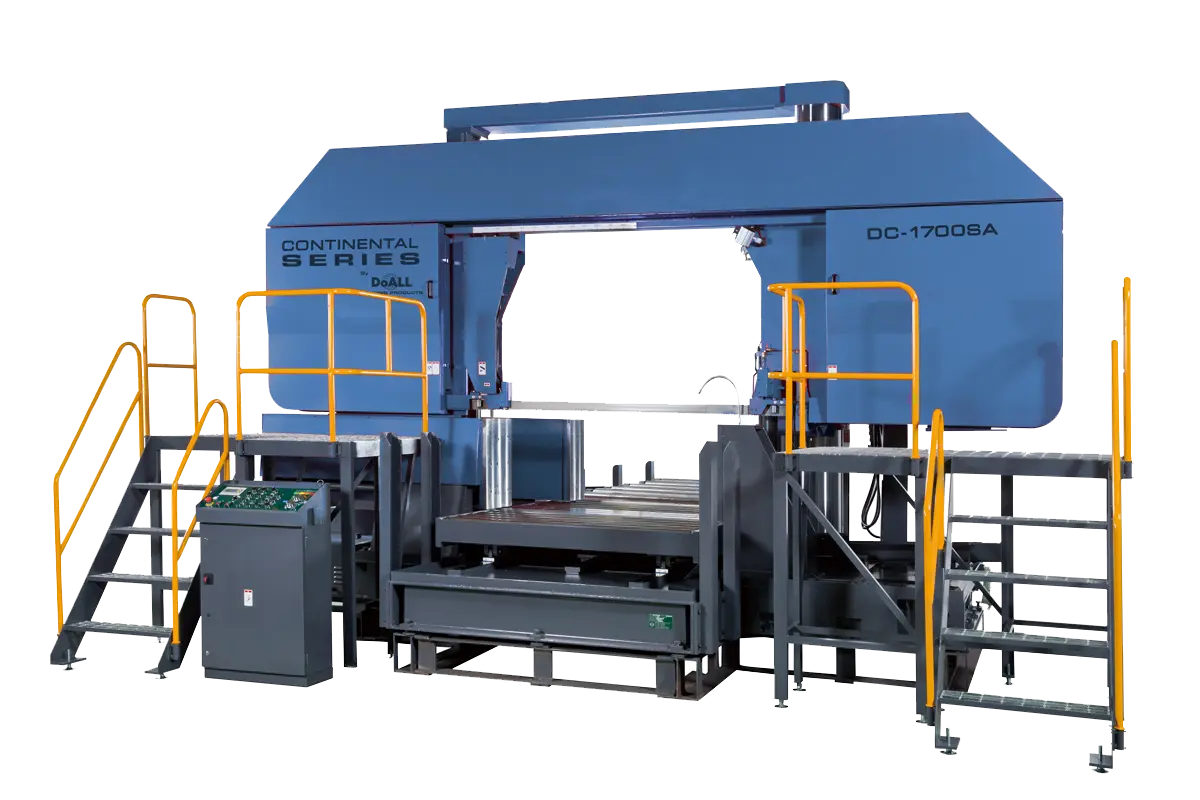

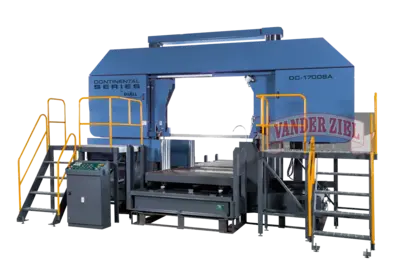

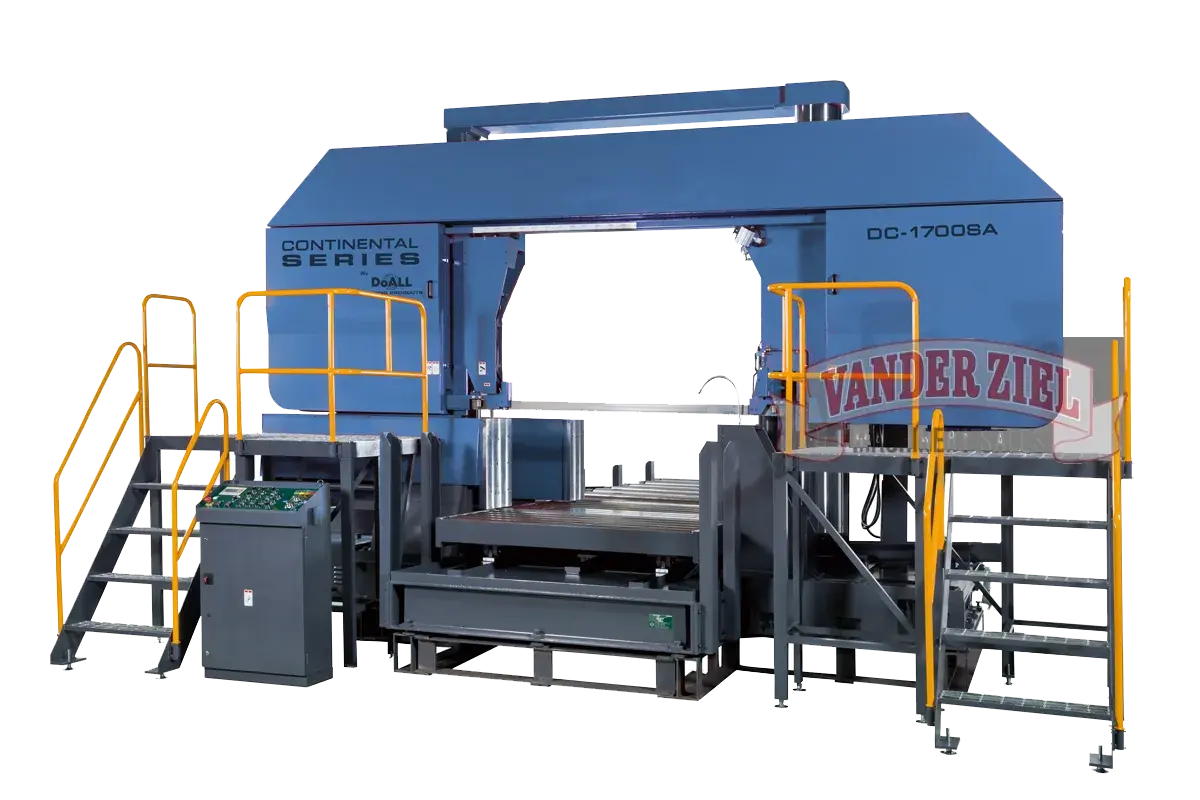

NEW DOALL DC-1700SA

DoAll 51.25" x 67" Dual Column Semi-Automatic Horizontal Saw, Model DC-1700SA - NEW
SKU #1120027
Machine Capacity: 51-1/4 x 67" (1300x1700mm) | Round: 51-1/4" (1300mm)
Production Level: High
The DC-1700SA Dual Column, Semi-Automatic Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.

Cutting Capacity Round: 51.2" (1100mm)

Cutting Capacity Rectangle: 67" x 51.2" (1700x1300mm)

Band Saw Blade (L x W x Gage): 512 x 3-3/20 x 0.063" (13000x80x1.6mm)

Band Speed: 39-246 FPM (12 - 75 m/min)

Band Drive: 20 hp (15 kw)

Hydraulic Pump: 5 hp (3.7kW)

Hydraulic Tank Capacity: 43.6 gal (165 L)

Coolant Pump:  1/4 hp (0.2 kw)

Coolant Tank Capacity: 74 gal (280 L)

Material Pass Line Height: 26.8" (680 mm)

Machine Weight: 46297 lbs (21000 kg)

Dimensions W x L x H: 244 x 110.2 x 149.6" (6200 x 2800 x 3800 mm)

Standard Equipment:

Programmable Logic Controller (PLC) control for all electric and hydraulic functions

Power driven, coolant flushed, blade cleaning wire brush

Flushing hose and auxiliary coolant nozzles

Hydraulic blade tension

Automatic chip conveyor

Blade breakage/stall motion detector shut off switch

Band door interlocks

One set of 6-foot (2-meter) roller stands

Set up tools and tool box

Complimentary DoALL Cutting Fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
