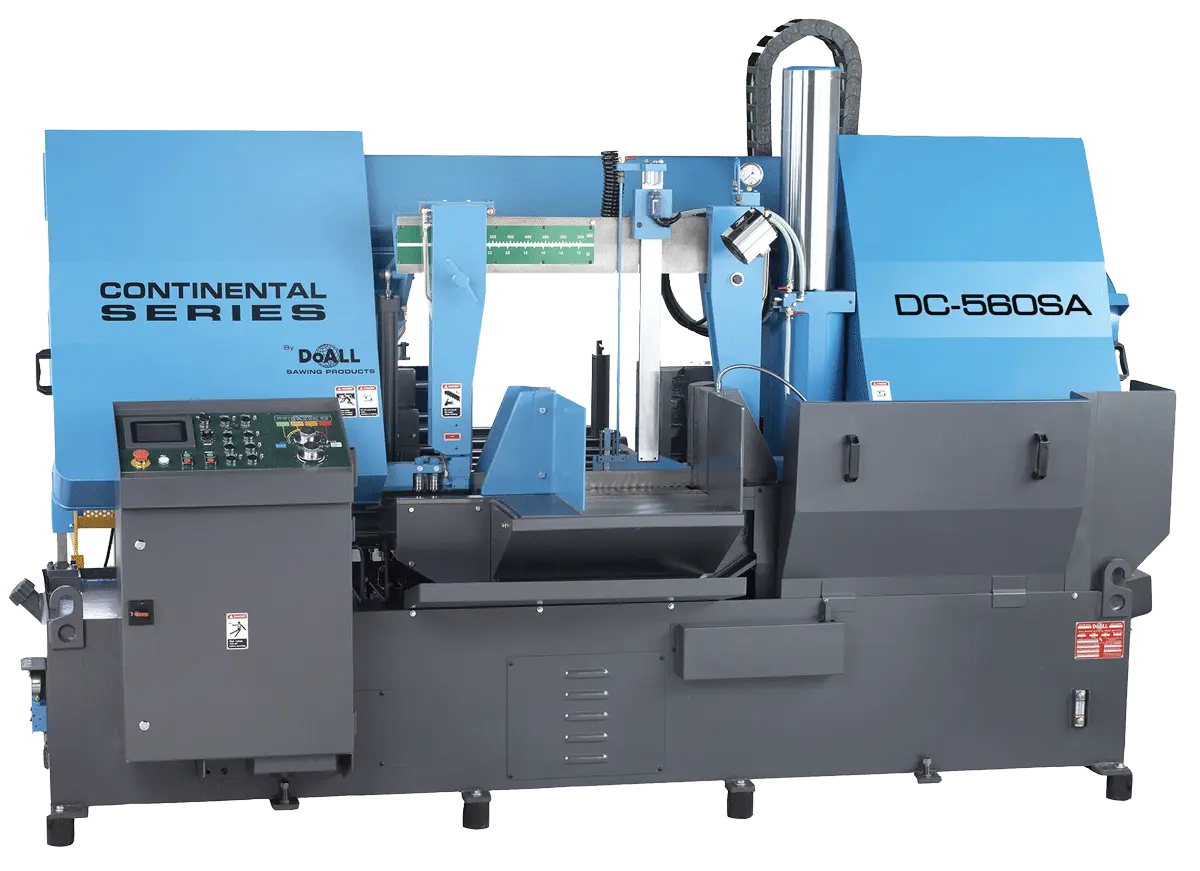

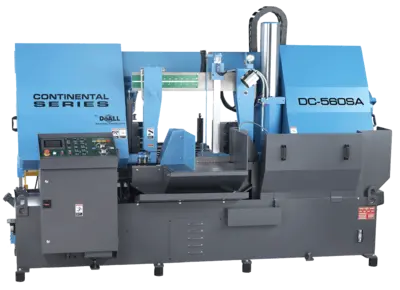

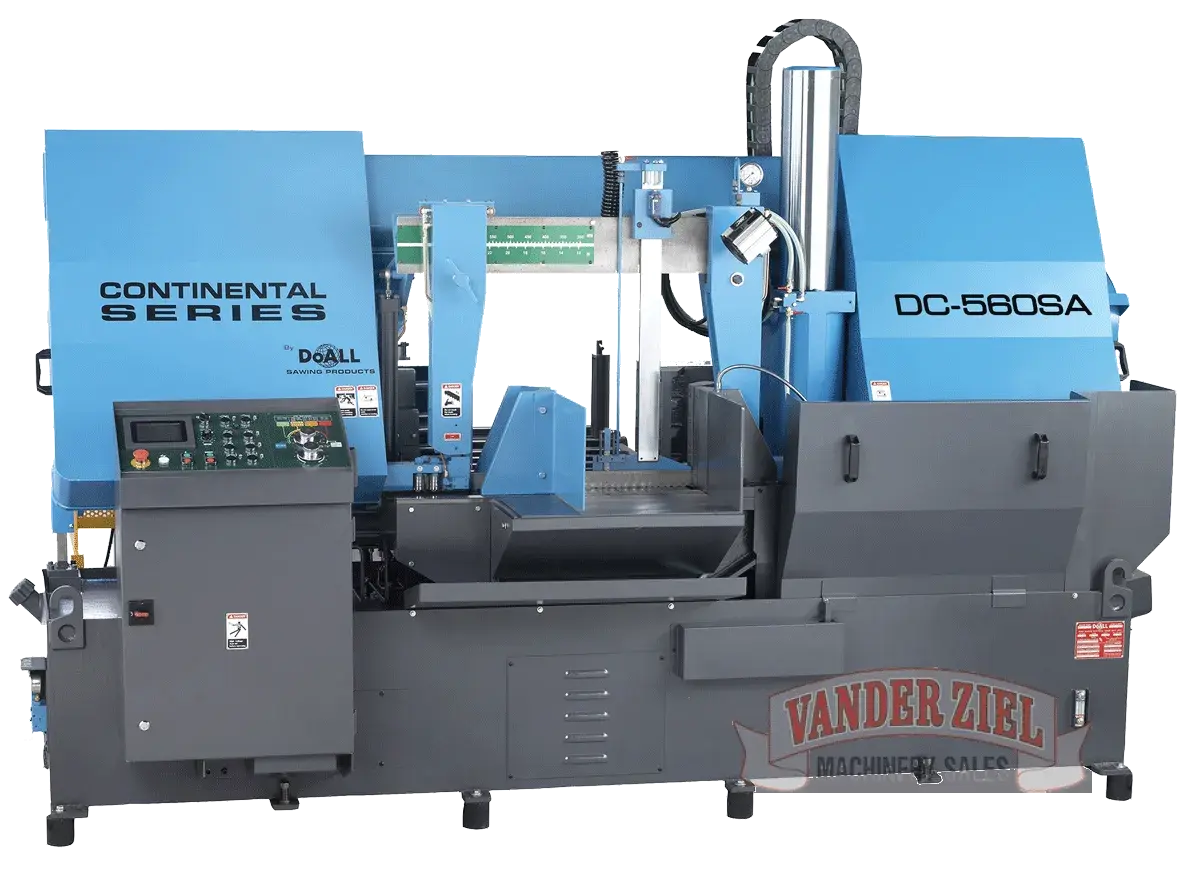

NEW DOALL DC-560SA

DoAll 31.5″ x 22″ Semi-Automatic Horizontal Saw, Model DC-560SA – NEW

Machine Capacity: 31.5 x 22″ (560x500mm) – Round: 22″ (560mm)
Production Level: High
The DC-560SA Semi-Automatic Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.

Cutting Capacity Round: 22″ (560mm)
Cutting Capacity Rectangle: 31.5 x 22″ (800×560 mm)
Band Saw Blade (L x W x Gage): 268 x 2 x 0.063″ (6800x54x1.6 mm)
Band Speed: 52-279 FPM (16 – 85 m/min)
Band Drive: 10 hp (7.5 kw)
Hydraulic Pump: 3 hp (2.2 kw)
Hydraulic Tank Capacity: 31.7 gal (120 L)
Coolant Motor: ¼ hp (0.2 kw)
Coolant Tank Capacity: 37 gal (140 L)
Material Pass Line Height: 33-1/2″ (850 mm)
Machine Weight: 8378 lbs (3800kg)
Floor Space Required: 130 x 77 x 79″ (3300x1950x2000mm)
Standard Equipment:
Programmable Logic Controller (PLC) control for all electric and hydraulic functions
Multi-step full stroke vises with split front vise and variable vise pressure control
Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One set of 6-foot (2-meter) roller stands
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
