NEW DOALL DC-1000CNC

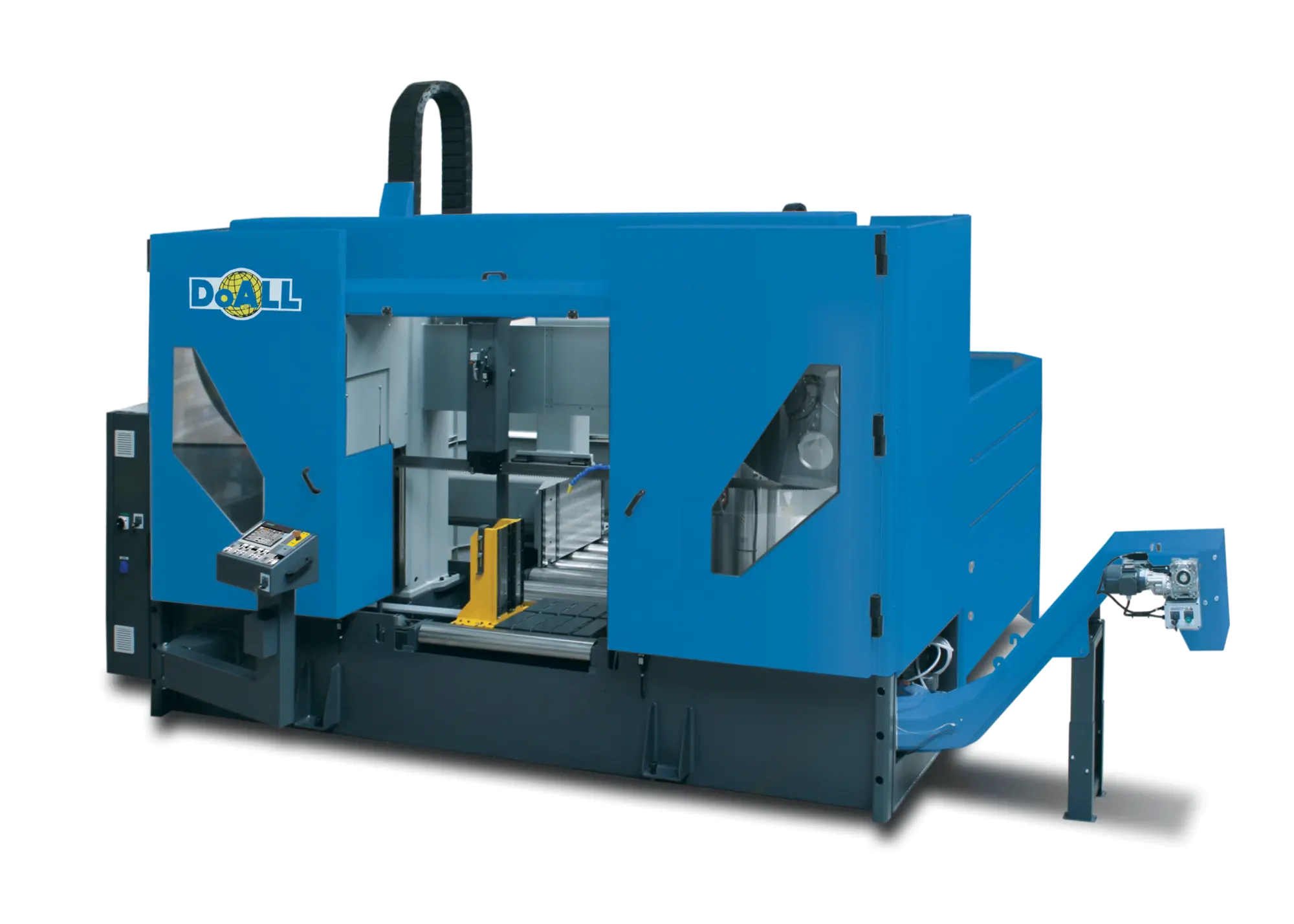

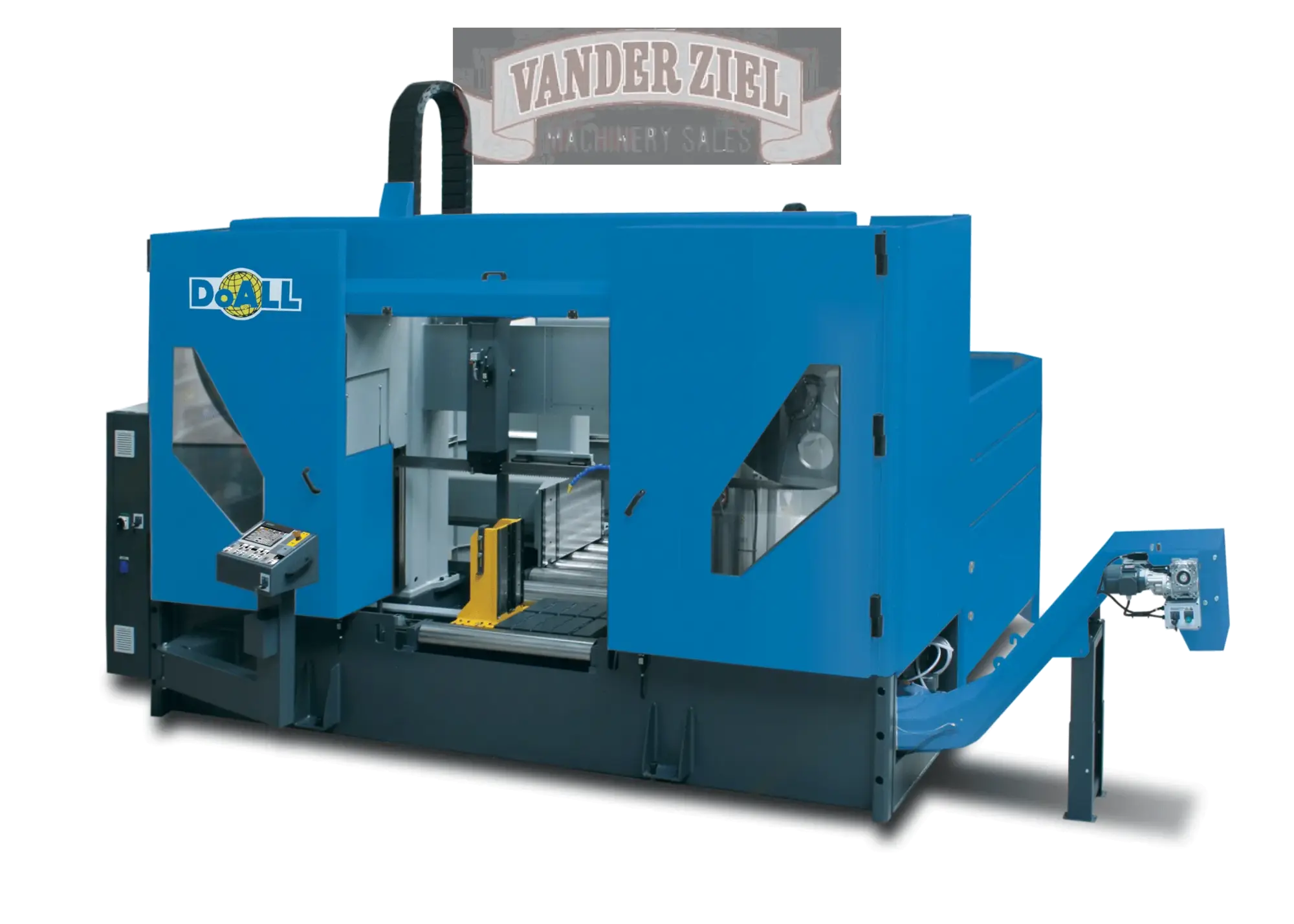

DoAll 33.5" x 40" Dual Column Enclosed CNC Bandsaw, Model DC-1000CNC - NEW
SKU #1120034

Machine Capacity: 33.5 x 40" (850 x 1000mm) | Round (Tube or Solid): 33.5" (850mm)
Production Level: Extreme
The DC-1000CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-1000CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-1000CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

Cutting Capacity Round (Tube or Solid): 33.45" (850mm)

Cutting Capacity Rectangle: 33.45 x 39.37" (1000x850mm)

Maximum Bundle Capacity: 39.37 x 24" (1000x610mm)

Band Saw Blade Width: 2.64 x 0.063" (67x1.6mm)

Maximum Blade Length: 373.6" (9490mm)

Band Speed: 50-262 fpm (15-80mpm)

Band Drive: 15 hp (11.1kW)

Hydraulic Pump: 5.4 hp (4kW)

Coolant Pump: 0.2 hp (0.155kW)

Material Pass Line Height: 24.4" (620mm)

Machine Weight: 30204 lbs (13700kg)

Dimensions W x L x H: 246 x 161 x 128" (6230x4080x3250mm)

Index Single Stroke Min-Max: 0.12-39.4" (3-1000mm)

Auto Index Multiple Stroke Max: 394" (9999mm)

Standard Equipment:

Siemens saw control

Work light

Hydraulic band tension

Work height sensor

Automatic guide arm setting

Automatic feed control with programmable feed rates

Variable vise pressure control - Set of 2

Power-driven, band brush

Chain chip conveyor with large pan

Automatic retraction of material in cycle for protection of carbide blades

Dual acting index vice jaws for crooked stock

Retractable stationary machine vice jaw

Set up tools

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
