NEW DOALL DC-560NC

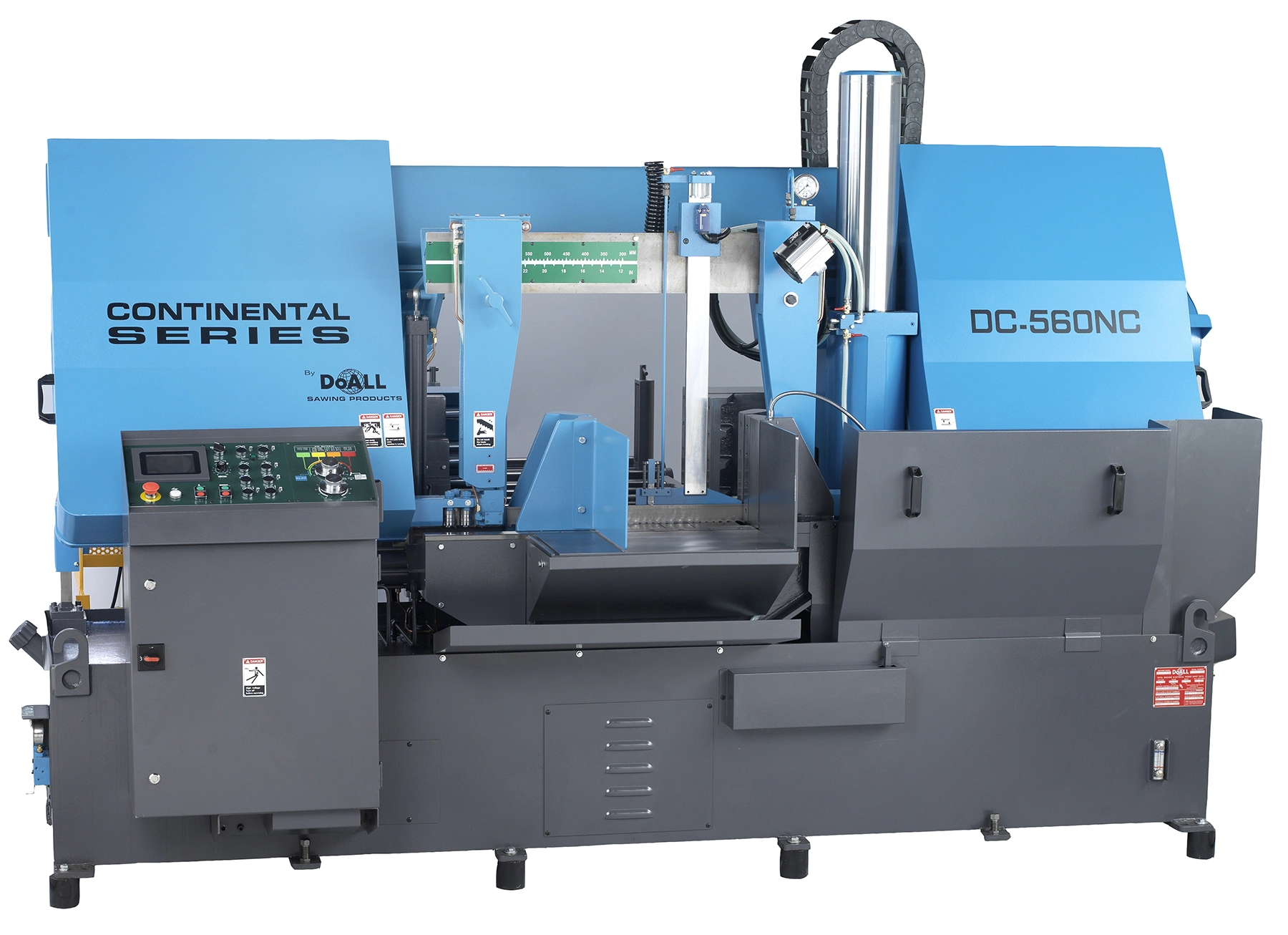

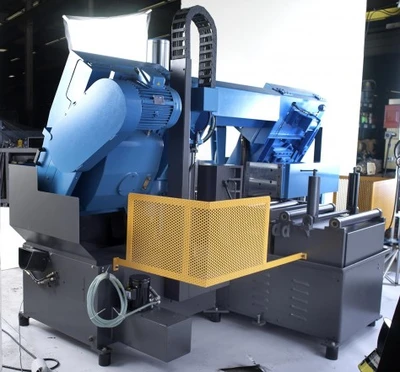

DoAll 24″ x 22″ Production Horizontal Saw, Model DC-560NC – NEW

Machine Capacity: 24 x 22″ (610x560mm) | Round: 22″ (560mm)
Production Level: High
The DC-560NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

Cutting Capacity Round: 22″ (560mm)
Cutting Capacity Rectangle: 24 x 22″ (600x560mm)
Bundle Capacity Maximum: 19-7/8 x 8-7/8″ (505x225mm)
Bundle Capacity Minimum: 9-7/8 x 5-3/4″ (250x145mm)
Band Saw Blade (LxWxGage): 260 x 2 x 0.05″ (6604x51x1.3mm)
Band Speed: 72 – 390 SFPM (22 – 120 m/min)
Band Drive: 10 hp (7.45kW)
Hydraulic Pump: 3 hp (2.3kW)
Hydraulic Tank Capacity: 34 Gal. (130 Liters)
Coolant Tank Capacity: 37 Gal. (140 Liters)
Automatic Index Length Single: 15.75″ (400mm)
Automatic Index Length Multiple: 141.73″ (3600mm)
Material Pass Line Height: 33-1/2″ (850mm)
Machine Weight: 9260 lbs. (4200kg)
Floor Space Required: 127 x 84 x 85″ (3210x2135x2160mm)
Standard Equipment:

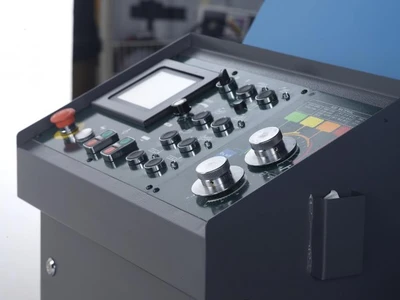

PLC control for all electric and hydraulic functions
Infinitely variable speed controlled by VFD

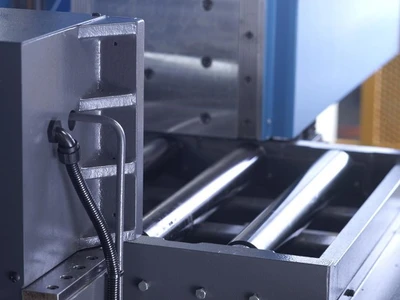

Hydraulic retractable shuttle vise material indexer
Rapid and creep speed index vise control

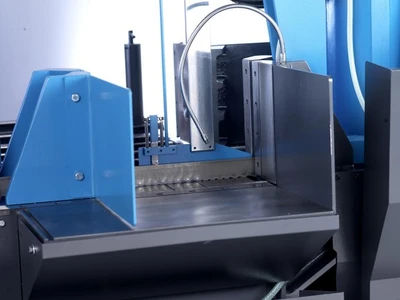

Multi-step full stroke vises with split front vise and variable vise pressure control

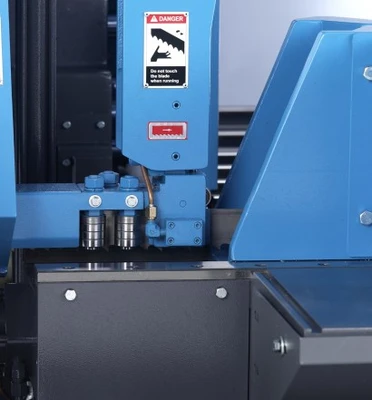

Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush

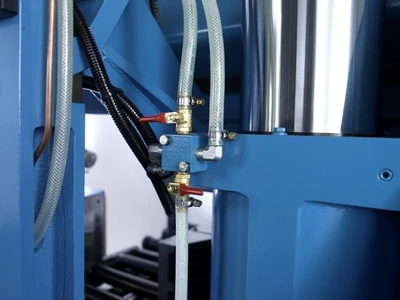

Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One 6 ½ ft. (2M) conveyor
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
