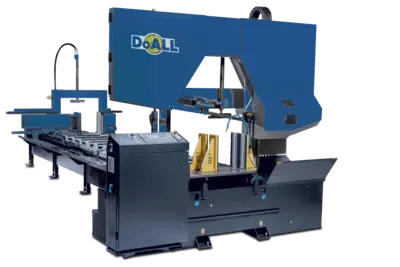

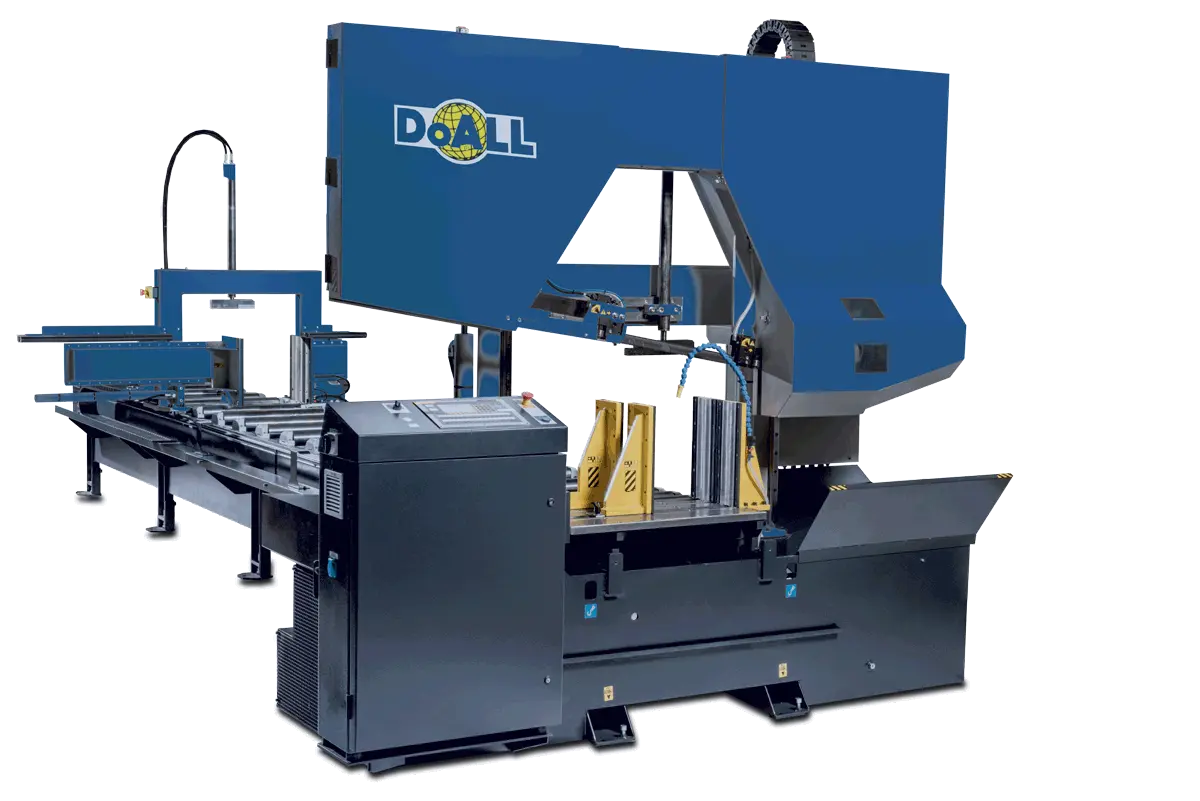

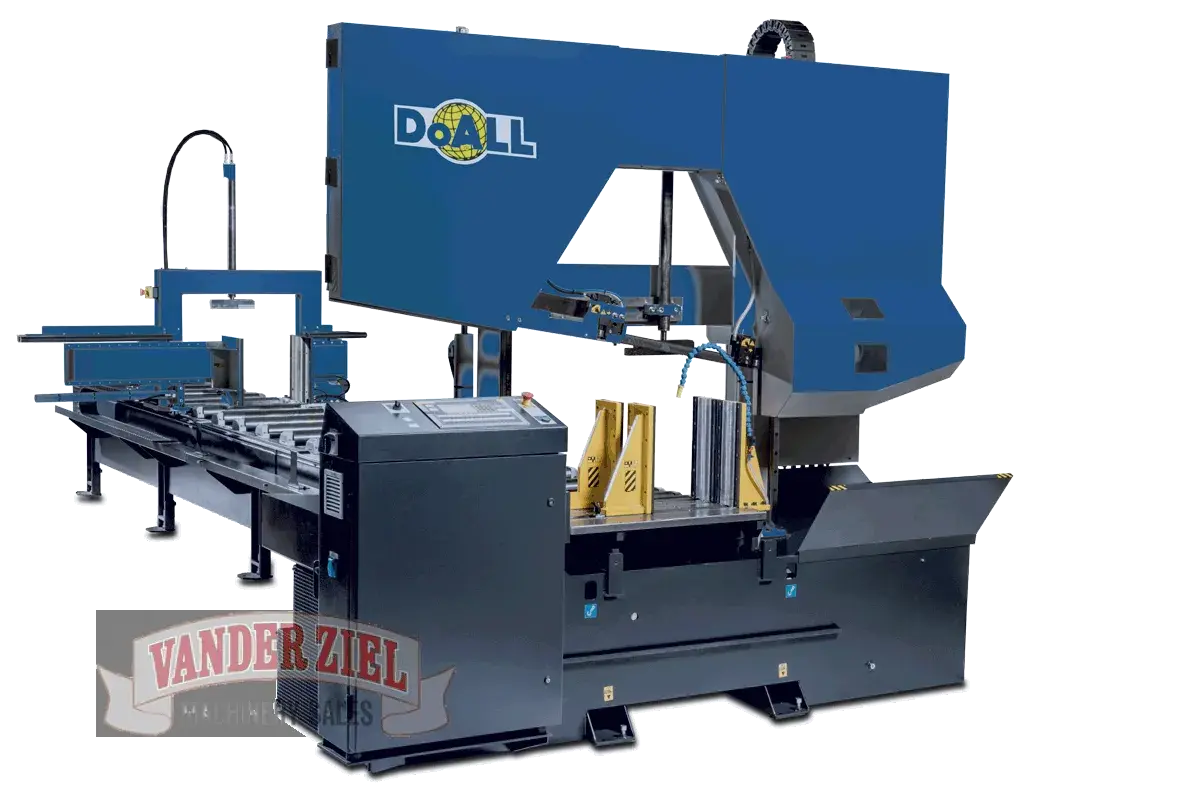

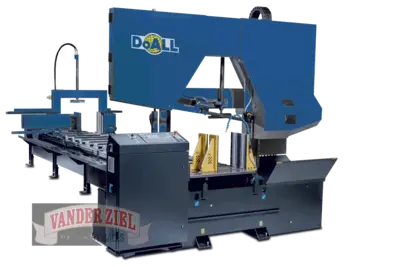

NEW DOALL TDC-600CNC

DoAll 20" x 24" Dual Column Tube CNC Bandsaw, Model TDC-600CNC - NEW
SKU #1120041
Machine Capacity: 20 x 24" (510x600mm) | Round Tube: 24" (600mm)
Production Level: Extreme
The DoALL Olympia™ TDC-600CNC is an automatic dual column, CNC metal-cutting band saw specially designed to cut large tube and pipe. The TDC-600CNC offers bundling to save time and money in high production environments like metal service centers. Also classified as a horizontal power specialty tube cut-off saw, the TDC-600CNC ships with a work light, work height sensor and discharge chute. A large variety of optional accessories are available to customize the machine for specific sawing requirements. The saw blade is 10° cant for high-efficiency cutting on a wide range of structural shapes and configurations of tubing.

Cutting Capacity Round Tube: 24" (600mm)

Cutting Capacity Rectangle: 20 x 24" (510x600mm)

Maximum Bundle Capacity: 16.34 x 24" (415x610mm)

Minimum Bundle Capacity: 1.2" (30mm)

Auto Index Single Stroke: 0.12-78" or 236" (3-1981mm or 5994mm)

Auto Index Multiple Stroke: 394" (9999mm)

Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)

Maximum Blade Length: 245-1/4" (6230mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 5 hp (4kW)

Hydraulic Pump: 10 hp (7.4kW)

Coolant Pump: 0.16 hp (0.12kW)

Coolant Tank Capacity: 24 gal (90 lit)

Material Pass Line Height: 31-1/2" (800mm)

Machine Weight: 8664lbs (3930kg)

Dimensions W x L x H: 169 x 141 x 97" (4300x3570x2460mm)

Standard Equipment:

Siemens saw control with touch screen

Work light

Automatic feed control

Variable vise pressure control - Set of 2

Power-driven

band brush

Automatic retraction of material in cycle for protection of carbide blades

Dual acting index vise jaws for crooked stock

Hydraulic band tension

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
