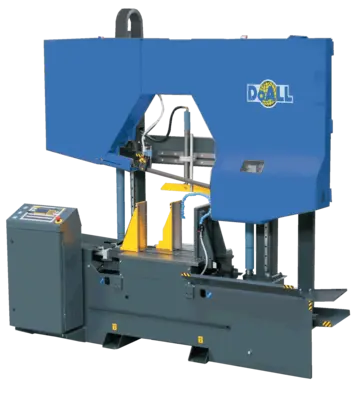

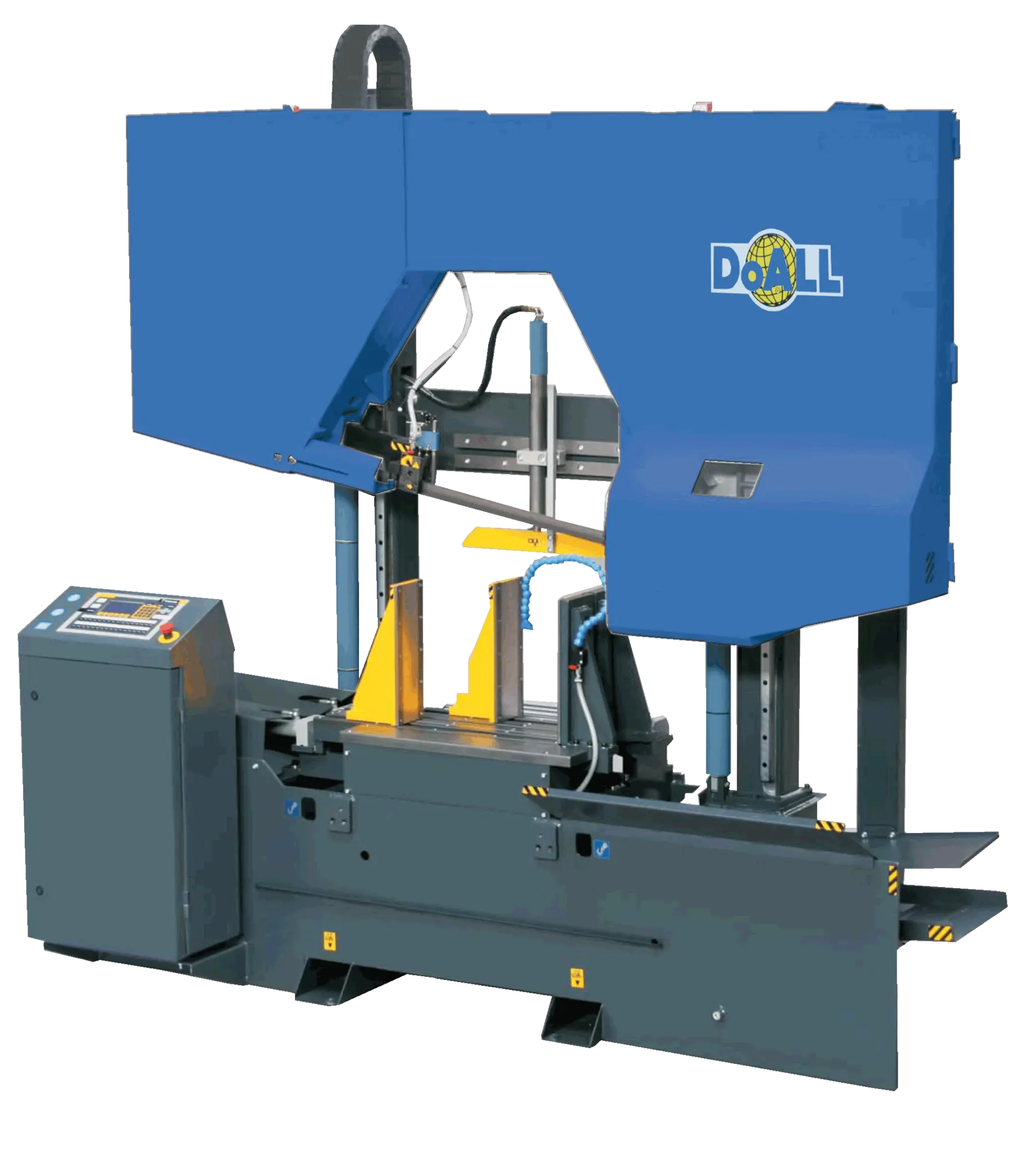

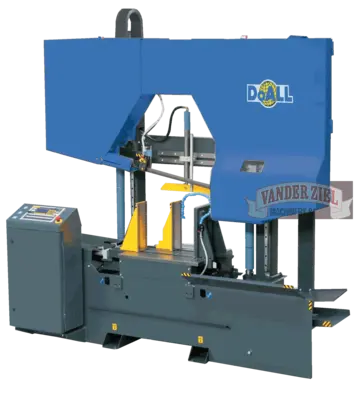

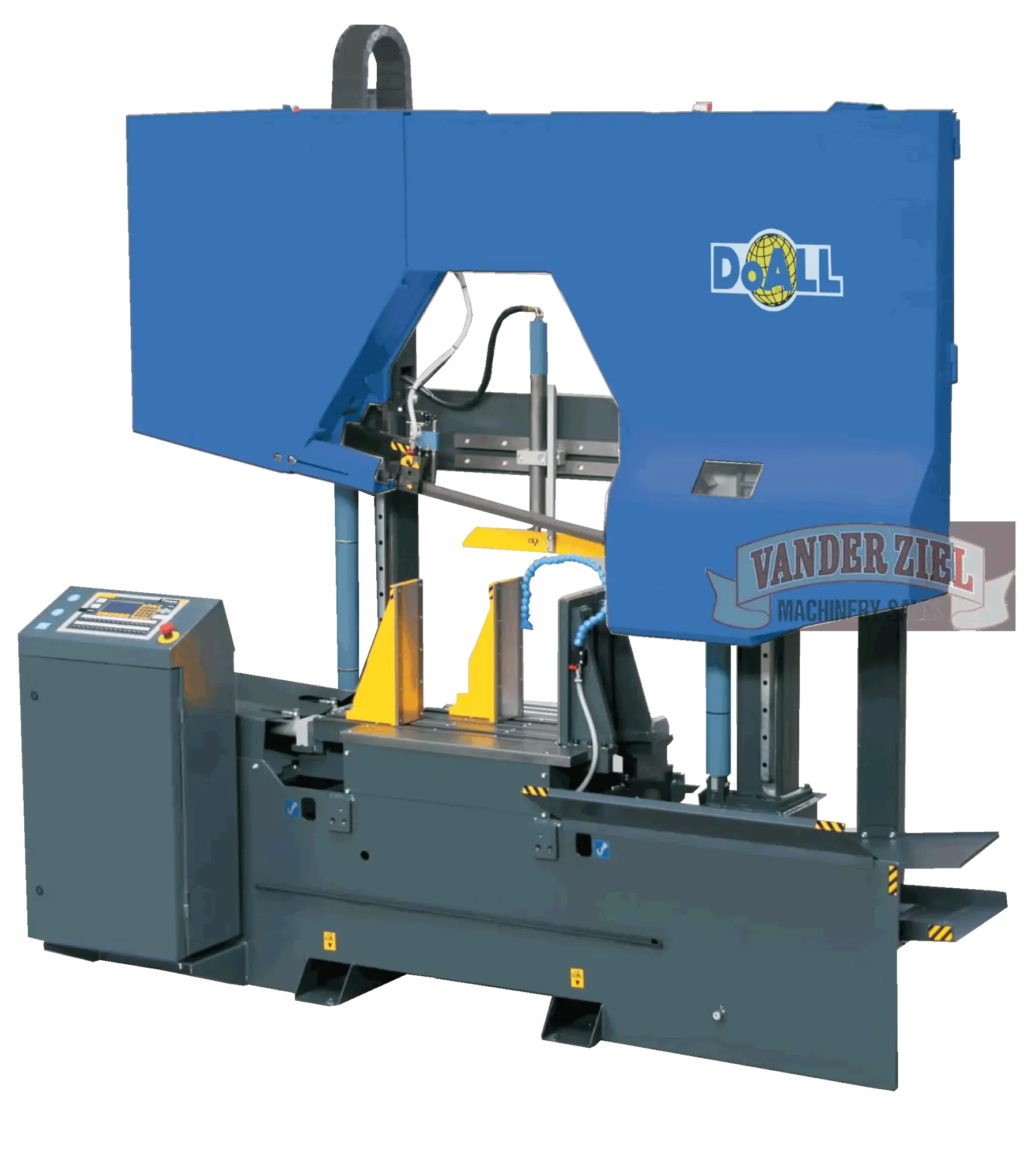

NEW DOALL TDC-600SA

DoAll 20" x 24" Dual Column Tube Bandsaw, Model TDC-600SA - NEW
SKU #1120038
Machine Capacity: 20 x 24" (510x610mm) | Round Tube: 24" (610mm)
Production Level: Extreme
The DoALL Olympia™ TDC-600SA high production, horizontal tube cutting band saws from DoALL are highly productive semi-automatic, hydraulically manipulated dual column machines. The TDC-600SA offers a unique construction with three pulleys and blade that is 10° cant to guarantee high-efficiency cutting. The TDC-600SA is designed for vertical cuts and is ideal for cutting all types of tube and pipe. The DoALL TDC-600 features robust construction which enables the ability to cut wide range of materials including stainless and tool steel. After starting the machines, the vices clamp automatically, the cut is made via the operations panel so the only activity for the operator is to control the material.

Cutting Capacity Round Tube: 24" (600mm)

Cutting Capacity Rectangle: 20 x 24" (510x600mm)

Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)

Maximum Blade Length: 245-1/4" (6230mm)

Maximum Bundle Capacity: 23.6 x 16.3" (600x415mm)

Minimum Bundle Capacity: 1.2" (30mm)

Remnant Length Drop: 2" (50mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 5 hp (4kW)

Hydraulic Pump: 10 hp (7.4kW)

Coolant Pump: 0.16 hp (0.12kW)

Coolant Pump Capacity: 24 gal (90 lit)

Material Pass Line Height: 31-1/2" (800mm)

Machine Weight: 5688 lbs (2580kg)

Dimensions W x L x H: 112 x 51 x 102" (2850x1300x2600mm)

Standard Equipment:

Mahler saw control

Work light

Automatic feed control

Hydraulic band tension

Variable vise pressure control

Power-driven, band brush

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
