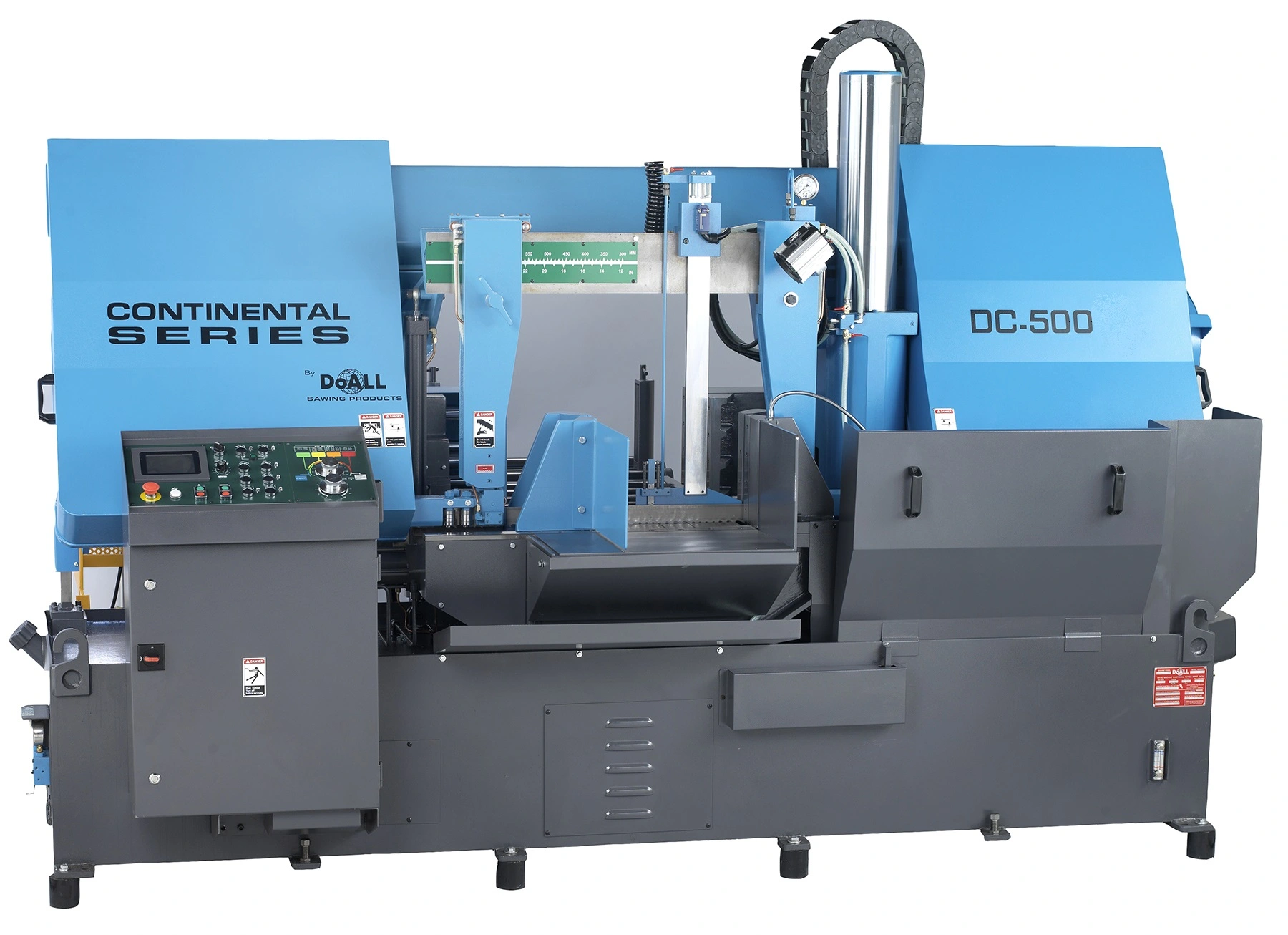

NEW DOALL DC-500SA

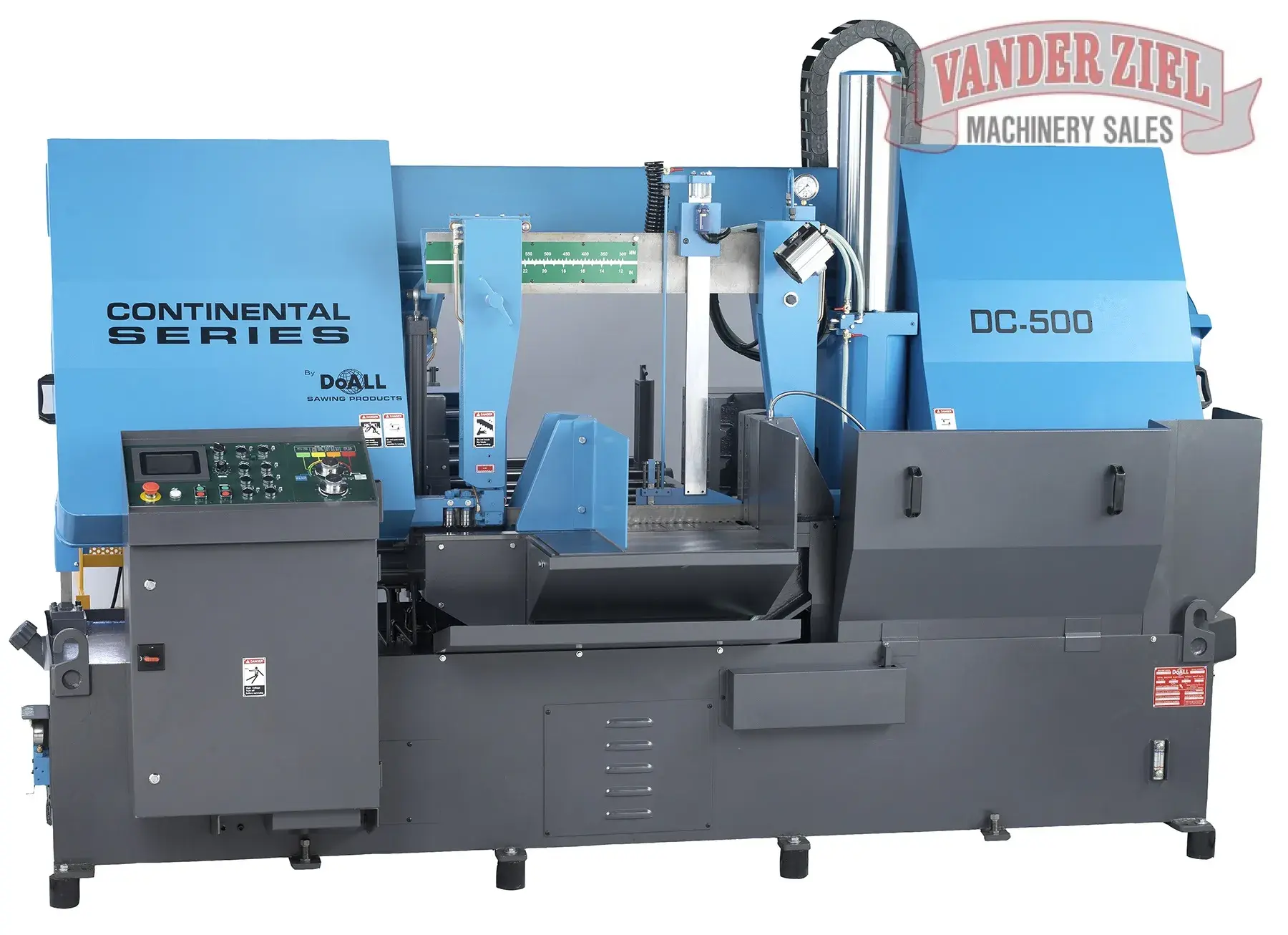

DoAll 20″ x 22″ Semi-Automatic Horizontal Saw, Model DC-500SA – NEW

Machine Capacity: 20 x 22″ (500x560mm) – Round: 20″ (500mm)
Production Level: High
The DC-500SA Semi-Automatic Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.

Cutting Capacity Round: 19.7″ (500mm)
Cutting Capacity Rectangle: 22 x 19.7″ (560 x 500 mm)
Band Saw Blade (L x W x Gage): 215 x 1-1/2 x 0.05″ (5450x41x1.3mm)
Band Speed: 66-262 FPM (20 – 80 m/min)
Band Drive: 7.5 hp (5.5 kw)
Hydraulic Pump: 2 hp (1.5 kw)
Hydraulic Tank Capacity: 22.5 gal (85 L)
Coolant Motor: ¼ hp (0.2 kw)
Coolant Tank Capacity: 29 gal (110 L)
Material Pass Line Height: 29.5″ (750 mm)
Floor Space Required (L x W x H): 114 x 61 x 71″ (2890x1550x1800mm)
Standard Equipment:
Programmable Logic Controller (PLC) control for all electric and hydraulic functions
Multi-step full stroke vises with split front vise and variable vise pressure control
Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One set of 6-foot (2-meter) roller stands
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
