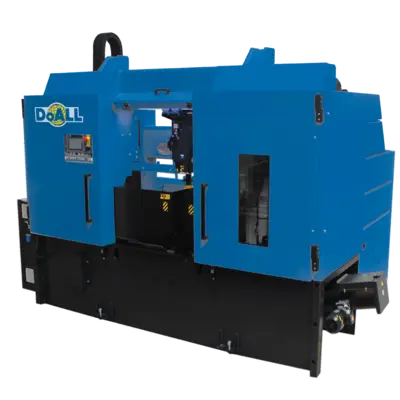

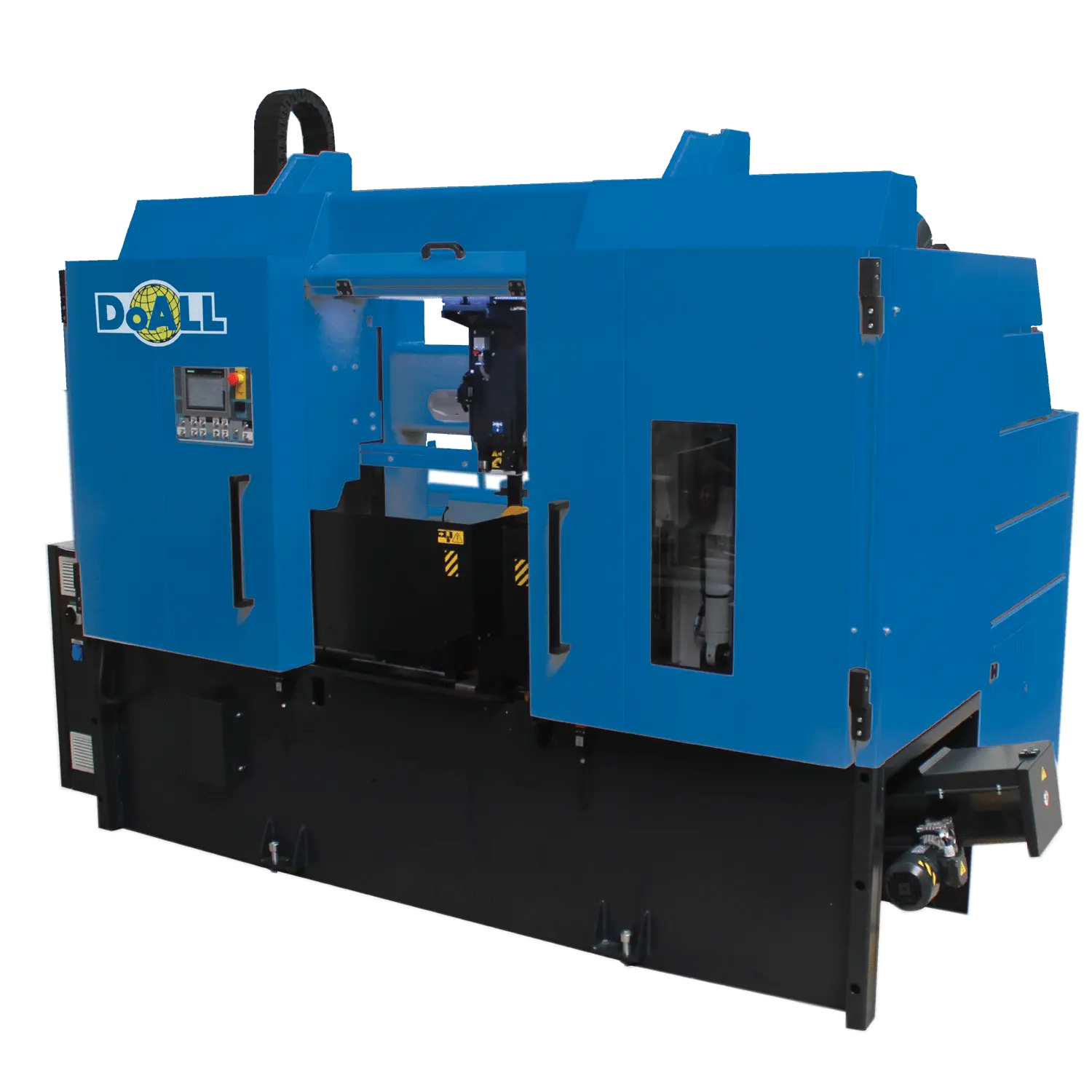

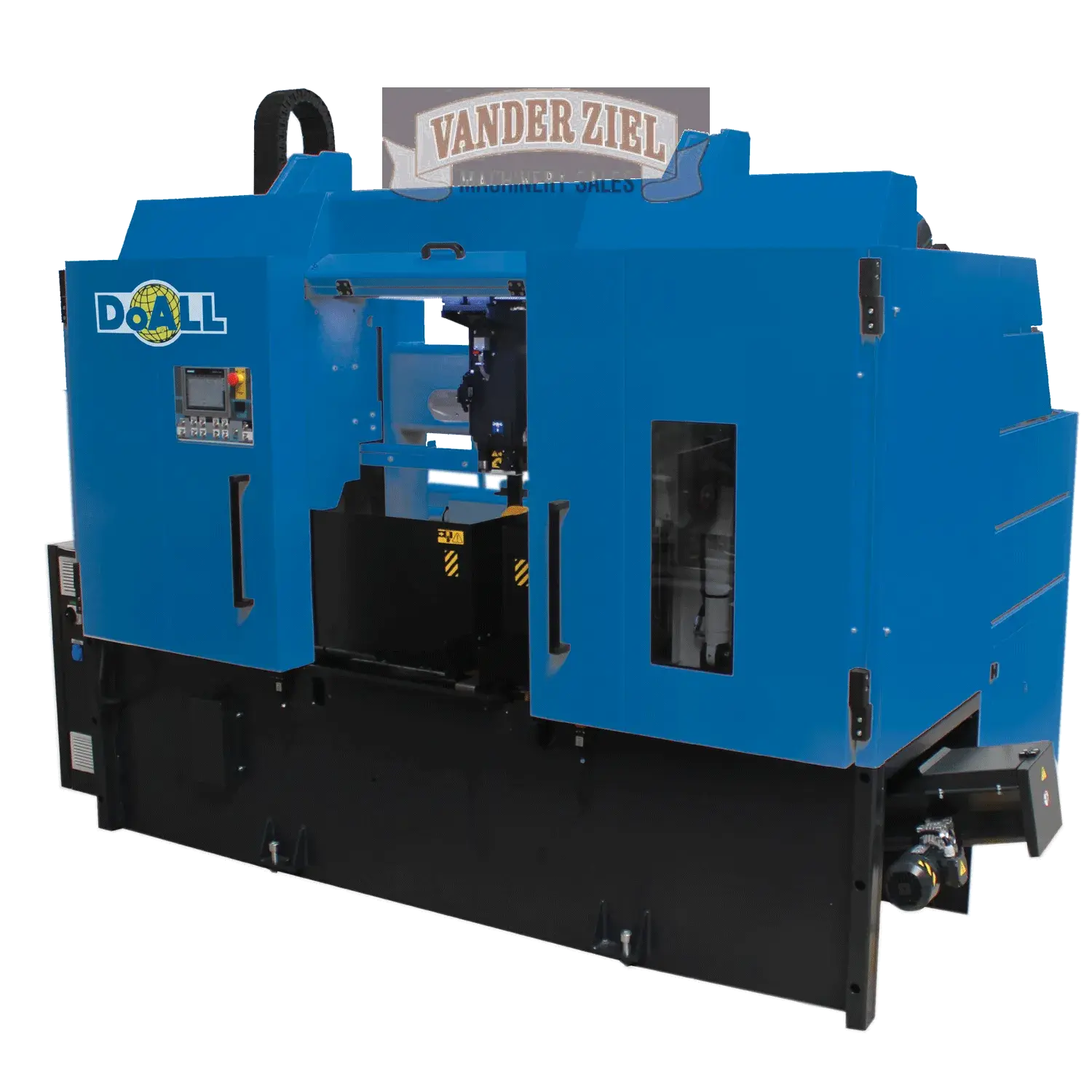

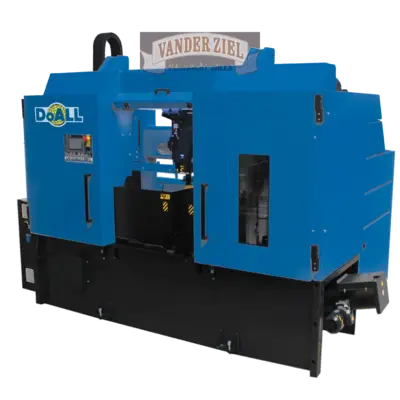

NEW DOALL DC-510CNC

DoAll 20″ x 20″ Dual Column Enclosed CNC Bandsaw, Model DC-510CNC – NEW

Machine Capacity: 20×20″ (510x510mm) | Round (Tube or Solid): 20″ (510mm)
Production Level: High
The DC-510CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-510CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-510CNC it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

Cutting Capacity Round (Tube or Solid): 20.08″ (510mm)
Cutting Capacity Rectangle: 20.08 x 22″ (510x560mm)
Maximum Bundle Capacity: 19.6 x 17.7″
Band Saw Blade Width: 2 x 0.063″ (54×1.6mm)
Maximum Blade Length: 238-1/2″ (6060mm)
Band Speed: 50-262 fpm (15-80mpm)
Band Drive: 10 hp (7.5kW)
Hydraulic Pump: 2 hp (1.5kW)
Coolant Pump: 0.16 hp (0.12kW)
Material Pass Line Height: 31-1/2″ (800mm)
Machine Weight: 13713lbs (6220kg)
Dimensions W x L x H: 122 x 94.5 x 102.5″ (3100x2400x2600mm)
Index Single Stroke Min-Max: 0.12-21.7″ (3-550mm)
Auto Index Multiple Stroke Max: 394″ (9999mm)
Standard Equipment:
Siemens saw control
Ball screw feed
Work light
Work height sensor
Power-driven, band brush
Hydraulic band tension
Worm chip conveyor
Automatic feed control with programmable feed rates
Automatic guide arm setting
Variable vise pressure control – Set of 2
Automatic retraction of material in cycle for protection of carbide blades
Dual acting index vice jaws for crooked stock
Flood coolant
Tool kit
Complimentary DoALL cutting fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
