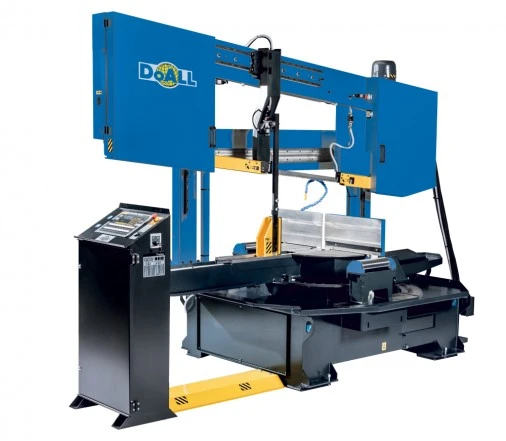

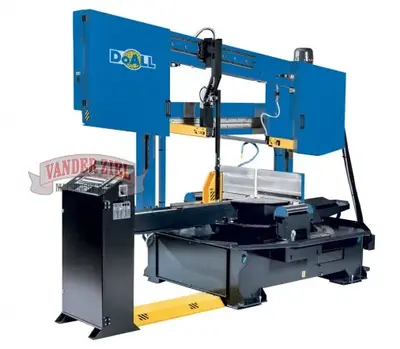

NEW DOALL DCDS-750SA

DoAll 19" x 30" Dual Column Semi-Automatic Horizontal Saw, Model DCDS-750SA - NEW
SKU #1120001
Machine Capacity: 19x30" (480x750mm)
Round Tube: 20" (500mm) | Round Solid: 15-3/4" (400mm)
Production Level: Extreme
The DoALL DCDS-750SA high production, horizontal StructurALL®, semi-automatic, dual column, dual mitering metal cutting band saw offers up to 19x30" (480x750mm) rectangular and a 20" (500mm) round cutting capacity. Also classified as a double column, dual swivel, the DCDS-750SA is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-750SA offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, semi-automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-750SA is the ideal machine for a fabricator cutting multiple angles in the same work piece.

Cutting Capacity Round Tube: 19.69" (500mm)

Cutting Capacity Round Solid: 15-3/4" (400mm)

Cutting Capacity Rectangle: 18.9 x 29.53" (480x750mm)

Maximum Bundle Capacity: 29.5 x 10.2" (750x260mm)

Miter Cutting: 60° left and right

Capacity Round at 45°: 19.7" (500mm)

Capacity Rectangle at 45°: 13" x 18.9" (330x480mm)

Capacity Round at 60°: 13" (330mm)

Capacity Rectangle at 60°: 4.7 x 4.3" (120x110mm)

Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)

Maximum Blade Length: 256" (6500mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 5 hp (4kW)

Hydraulic Pump: 3 hp (2.2kW)

Coolant Pump: 0.16 hp (0.12kW)

Material Pass Line Height: 32" (815mm)

Machine Weight: 4409 lbs (2000kg)

Dimensions W x L x H: 142 x 67 x 94.5" (3600x1700x2400mm)

Standard Equipment:

Mitsubishi saw control

Digital read out of cutting angle

Work light

Laser line generator

Hydraulic angular rotation (position and lock)

Feed rate indicator - in/min or mm/min

Overfeed protection

Automatic guide arm setting

Pulley-driven band brush

Hydraulic band tension

Safety covers

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
