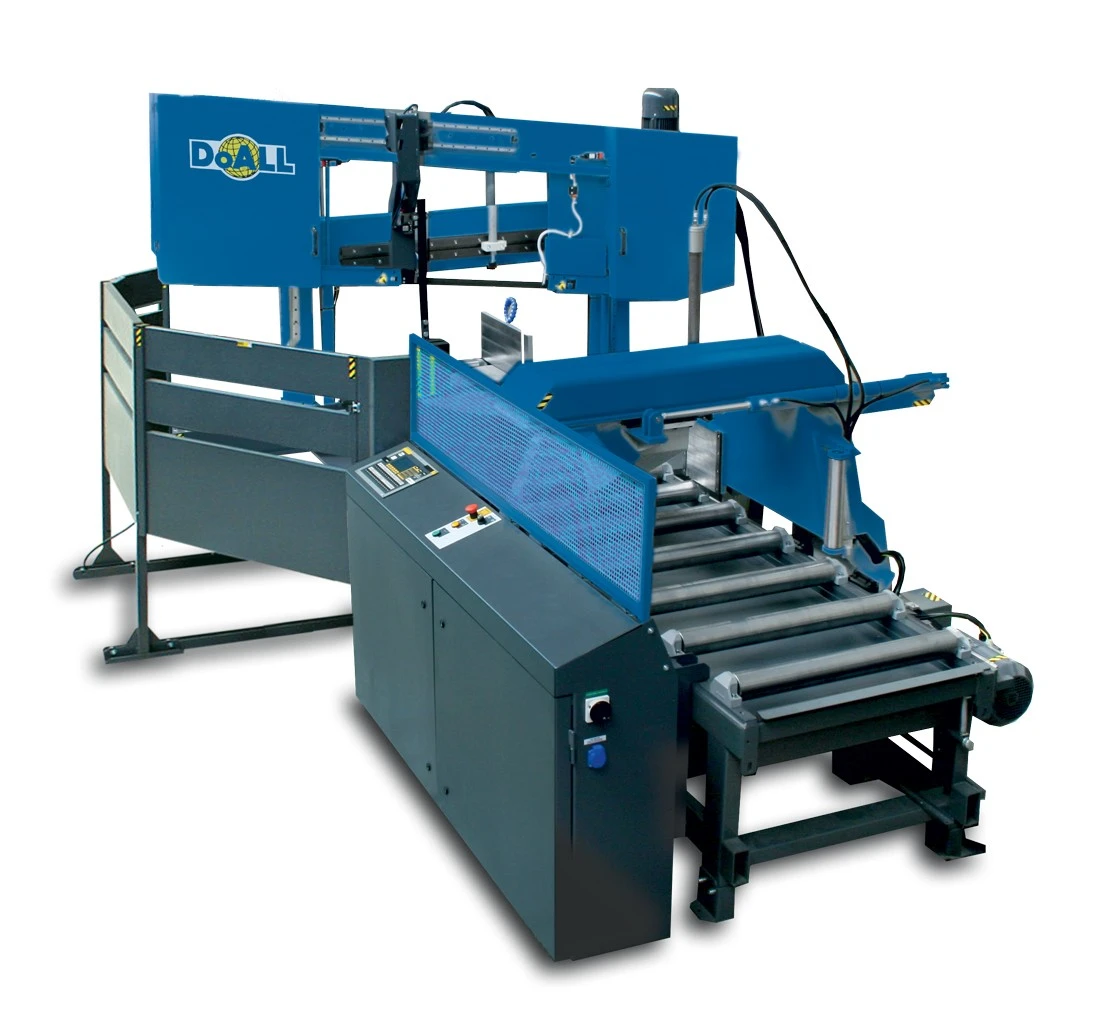

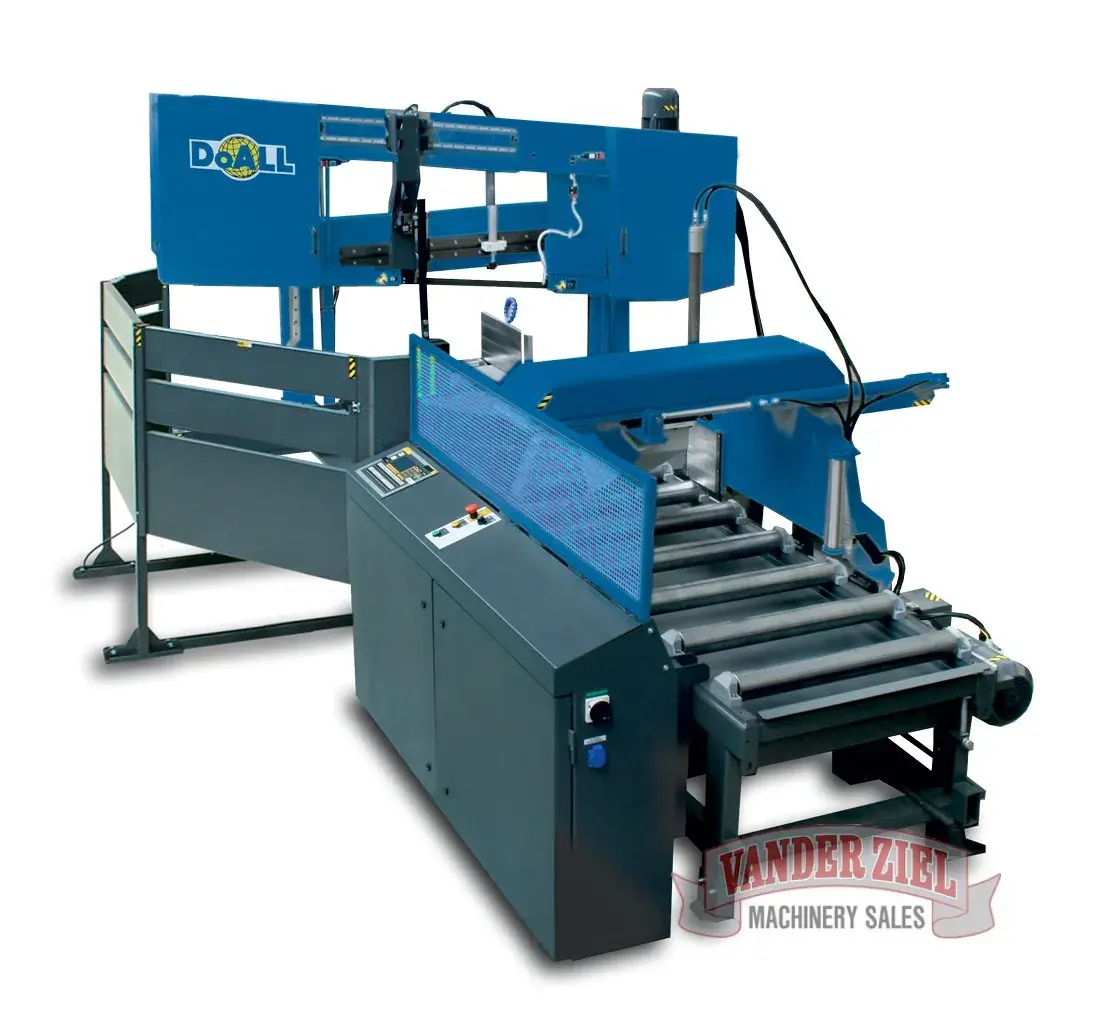

NEW DOALL DCDS-750NC

DoAll 19" x 30" Dual Column Miter Horizontal Saw, Model DCDS-750NC - NEW
SKU #1120003
Machine Capacity: 19x30" (480x750mm)
Round Tube: 20" (510mm) | Round Solid: 15-3/4" (400mm)
Production Level: Extreme
The DoALL DCDS-750NC high production, horizontal StructurALL®, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 19x30" (480x750mm) rectangular cutting capacity and 20" round capacity. Also classified as a double column, dual swivel, the DCDS-750NC is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-750NC offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-750NC is the ideal machine for a fabricator cutting multiple angles in the same work piece.

Cutting Capacity Round Tube: 19.7" (500mm)

Cutting Capacity Round Solid: 15-3/4" (400mm)

Cutting Capacity Rectangle: 29.5 x 18.9" (750x480mm)

Maximum Bundle Capacity: 29.5 x 10.2" (750x260mm)

Miter Cutting: 60° left and right

Capacity Round at 45°: 19.7" (500mm)

Capacity Rectangle at 45°: 19.7 x 18.9" (500x480mm)

Capacity Round at 60°: 13" (330mm)

Capacity Rectangle at 60°: 13 x 18.9" (330x480mm)

Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)

Maximum Blade Length: 256" (6500mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 5 hp (4kW)

Hydraulic Pump: 3 hp (2.2kW)

Coolant Pump: 0.16 hp (0.12kW)

Material Pass Line Height: 32" (815mm)

Machine Weight: 9149lbs (4150kg)

Dimensions W x L x H: 142 x 231.5 x 94.5" (3600x5880x2400mm)

Index Single Stroke Min-Max: 0.12-78.7" (3-2000mm)

Auto Index Multiple Stroke Max: 394" (9999mm)

Standard Equipment:

Siemens saw control with touch display

Digital read out of cutting angle

Work light

Hydraulic band tension

Feed rate indicator

Automatic feed control

Automatic guide arm setting

Pulley-driven band brush

Variable vise pressure control - set of 2

Hydraulic angular position and lock

Safety covers and 3 panel work area surround

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
