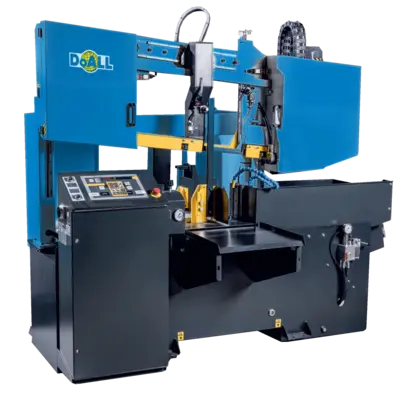

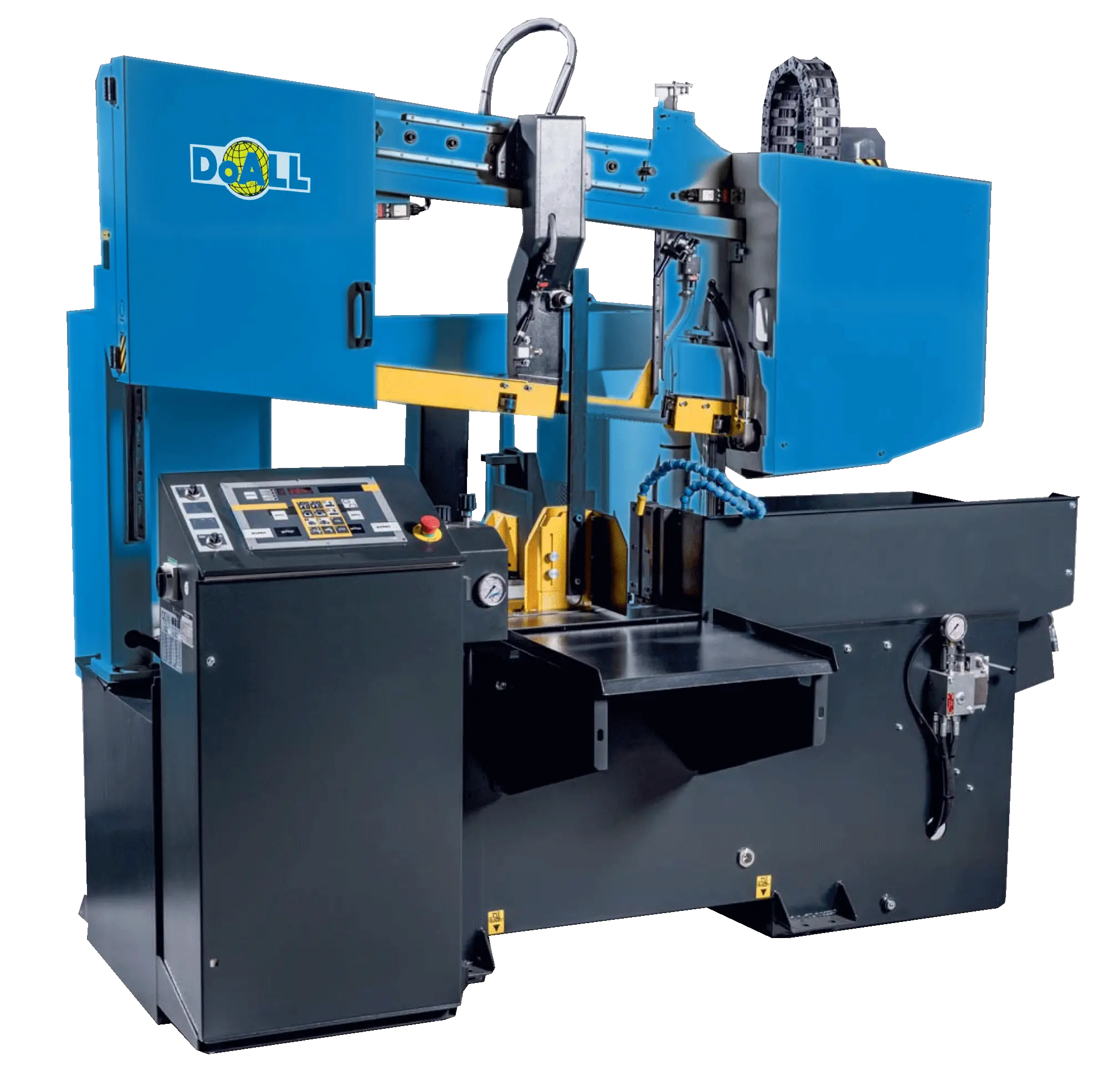

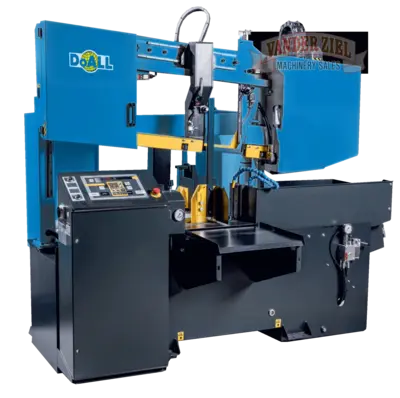

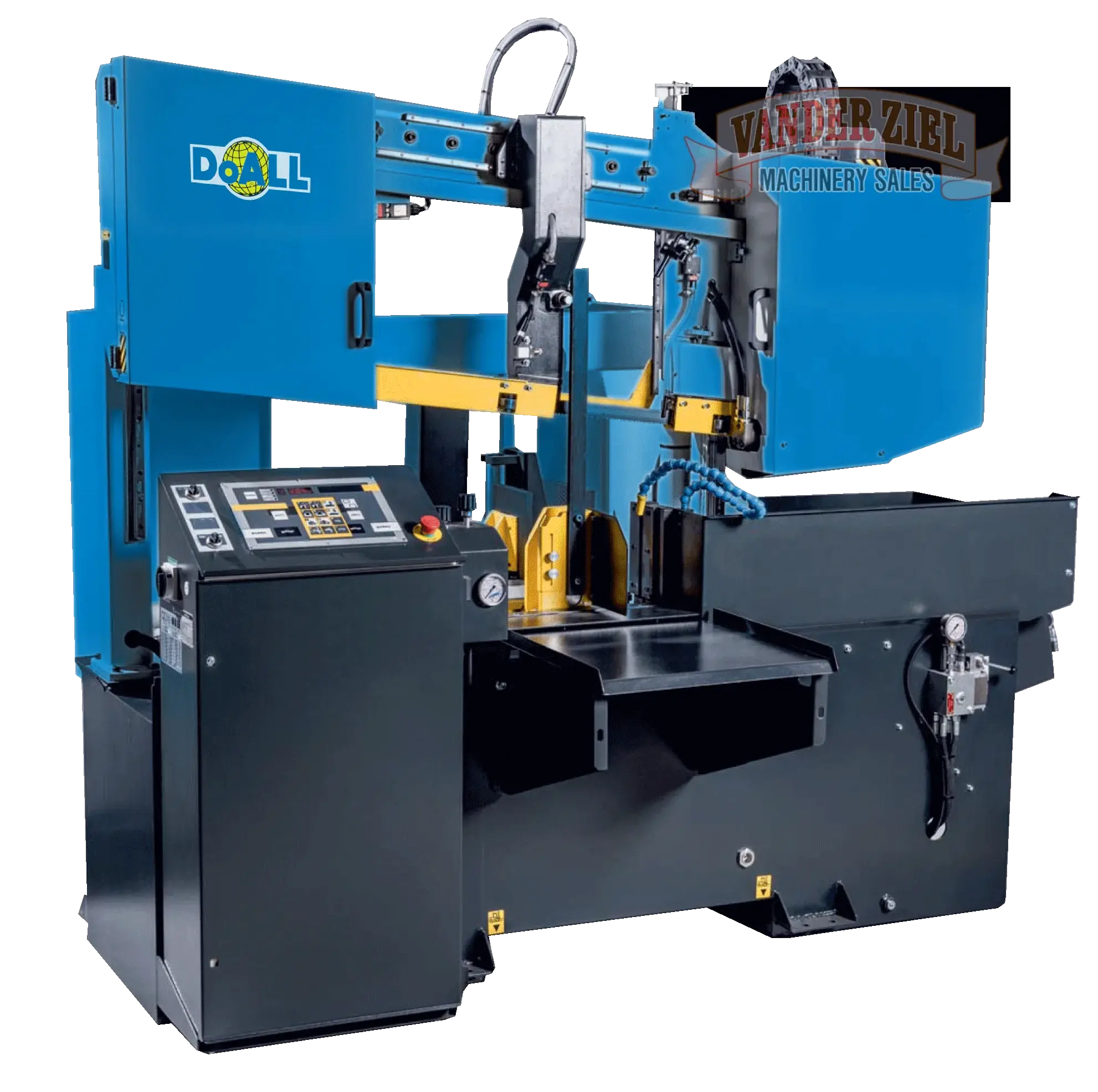

NEW DOALL TDC-400CNC

DoAll 16" x 16" Dual Column Tube CNC Bandsaw, Model TDC-400CNC - NEW
SKU #1120040
Machine Capacity: 16 x 16" (400x400mm) | Round Tube: 16" (400mm)
Production Level: Extreme
The DoALL Olympia™ TDC-400CNC is an automatic dual column, CNC metal-cutting band saw specially designed to cut standard tube and pipe. The TDC-400CNC offers bundling to save time and money in high production environments like metal service centers. Also classified as a horizontal power specialty tube cut-off saw, the TDC-400CNC ships with a work light, work height sensor and discharge chute. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

Cutting Capacity Round Tube: 16" (410mm)

Cutting Capacity Rectangle: 16 x 16" (400x400mm)

Maximum Bundle Capacity: 15.8 x 13.4" (400x340mm)

Minimum Bundle Capacity: 1.2" (30mm)

Auto Index Single Stroke Lengths: 0.12-19.9" (3-505mm)

Auto Index Multiple Stroke Lengths: 394" (9999mm)

Band Saw Blade Width: 1-1/4 x 0.042" (34x1.1mm)

Maxiumum Blade Length: 178" (4520mm)

Remnant Length Drop: 6" (150mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 4 hp (3kW)

Hydraulic Pump: 1 hp (0.75kW)

Coolant Pump: 0.12 hp (0.09kW)

Coolant Tank Capacity: 16 gal (60 lit)

Material Pass Line Height: 31-1/2" (800mm)

Machine Weight: 2866 lbs (1300kg)

Dimensions W x L x H: 63 x 88 x 81" (1600x2200x2050mm)

Standard Equipment:

Saw-Micro saw control

Variable frequency drive

Work light

Pulley-driven, band brush

Automatic guide arm setting

Work height sensor

Overfeed protection

Variable vise pressure control - Set of 2

Discharge chute

Hydraulic band tension

Worm chip conveyor

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
