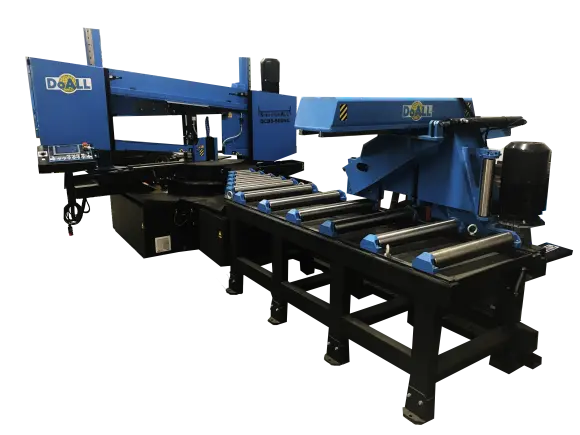

NEW DOALL DCDS-600NC

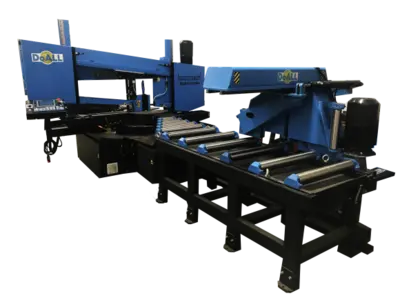

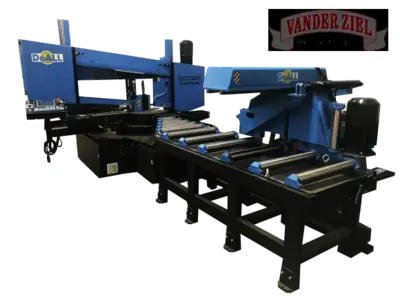

DoAll 16" x 24" Dual Column Miter Horizontal Saw, Model DCDS-600NC - NEW
SKU #1120002
Machine Capacity: 16x24" (440x600mm)
Round Tube: 18.5" (470mm) | Round Solid: 9-7/8" (250mm)
Production Level: Extreme
The DoALL DCDS-600NC high production, horizontal StructurALL®, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 16x24" (440x600mm) rectangular cutting capacity and 18-1/2" round capacity. Also classified as a double column, dual swivel, the DCDS-600NC is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-600NC offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-600NC is the ideal machine for a fabricator cutting multiple angles in the same work piece.

Cutting Capacity Round Tube: 18.5" (470mm)

Cutting Capacity Round Solid: 9-7/8" (250mm)

Cutting Capacity Rectangle: 24 x 16.14" (610x410mm)

Maximum Bundle Capacity: 24" x 10" (610x255mm)

Miter Cutting: 60° left and right

Capacity Round at 45°: 18.5" (470mm)

Capacity Rectangle at 45°: 19.5" x 16.3" (495x415mm)

Capacity Round at 60°: 13" (330mm)

Capacity Rectangle at 60°: 12 x 16.7" (305x425mm)

Band Saw Blade Width: 1-1/4 x 0.043" (34x1.1mm)

Maximum Blade Length: 238.6" (6060mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 5 hp (4kW)

Hydraulic Pump: 3.8 hp (2.84kW)

Coolant Pump: 0.16 hp (0.12kW)

Material Pass Line Height: 31-1/2" (800mm)

Machine Weight: 8454lbs (3835kg)

Dimensions W x L x H: 126 x 192 x 94" (3200x4880x2390mm)

Index Single Stroke Min-Max: 0.12-78.7" (3-2000mm)

Auto Index Multiple Stroke Max: 394" (9999mm)

Standard Equipment:

Mahler saw control

Automatic feed control

Automatic guide arm setting

Work light

Digital read out of cutting angle

Pulley-driven, band brush

Feed rate indicator

Variable vise pressure control - Set of 2

Hydraulic band tension

Hydraulic angular position and lock

Safety covers

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
