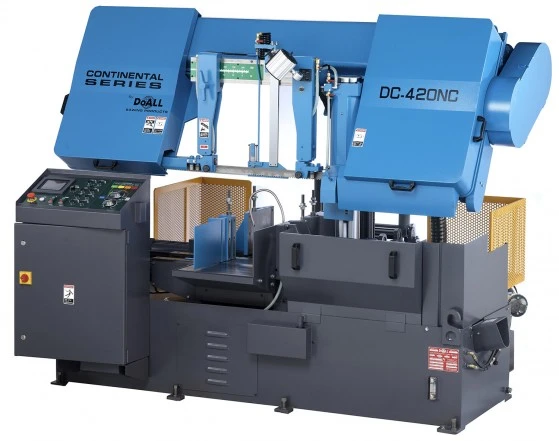

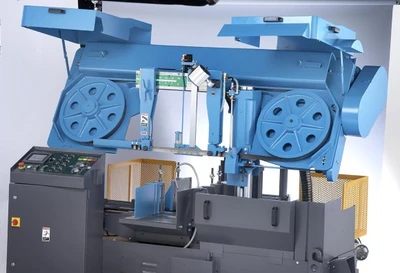

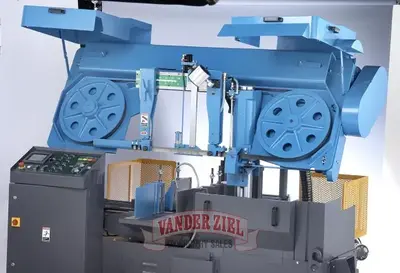

NEW DOALL DC-420NC

DoAll 16.5″ x 16.5″ Production Horizontal Saw, Model DC-420NC – NEW

Machine Capacity: 16-1/2 x 16-1/2″ (420x420mm) | Round: 16-1/2″
Production Level: High
The DC-420NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

Cutting Capacity Round: 16-1/2″ (420mm)
Cutting Capacity Rectangle: 16-1/2″ x 16-1/2″ (420mm x 420mm)
Bundle Capacity Maximum: 14-1/2″ x 7-5/8″ (370mm x 200mm)
Bundle Capacity Minimum: 6-1/2″ x 3-1/4″ (165mm x 80mm)
Band Saw Blade (L x W x Gage): 192 x 1-1/2 x 0.05″ (4880x38x1.3mm)
Band Speed: 72 – 390 SFPM (22 – 120 m/min)
Band Drive: 10 HP (7.5kW)
Hydraulic Pump: 2HP (1.5kW)
Hydraulic Tank Capacity: 22 Gal. (85 Liters)
Coolant Tank Capacity: 26 Gal. (100 Liters)
Automatic Index Length Single: 19.68″ (500mm)
Automatic Index Length Multiple: 177.16″ (4500mm)
Material Pass Line Height: 27-1/2″ (698mm)
Floor Space Required: 97 x 88 x 66″ (2450x2235x1665mm)
Machine Weight: 5512 lbs (2500kg)
Standard Equipment:
PLC control for all electric and hydraulic functions
Infinitely variable speed controlled by VFD

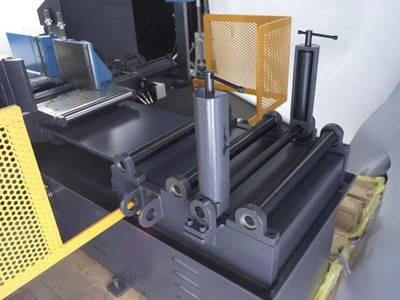

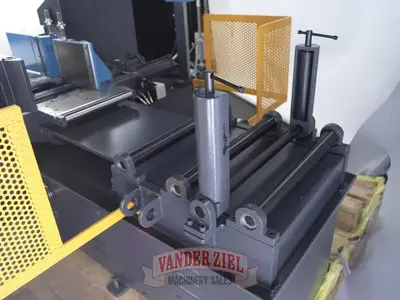

Hydraulic retractable shuttle vise material indexer
Rapid and creep speed index vise control
Multi-step full stroke vises with split front vise and variable vise pressure control
Nesting fixture for bundle cutting

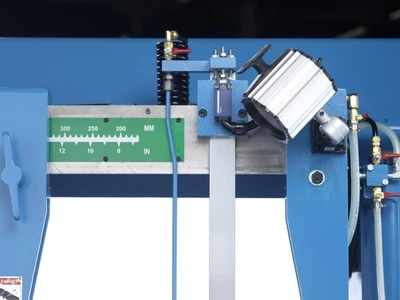

Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One 6 ½ ft. (2M) conveyor
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
