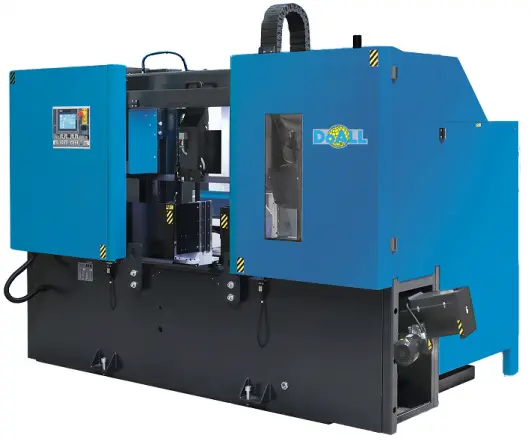

NEW DOALL DC-400CNC

DoAll 16" x 16" Dual Column Enclosed CNC Bandsaw, Model DC-400CNC - NEW
SKU #1120029
Machine Capacity: 16x16" (400x400mm) | Round Tube or Solid: 16" (400mm)
Production Level: Extreme
The DC-400CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-400CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation.

Cutting Capacity Round (Tube and Solid): 15.75" (400mm)

Cutting Capacity Rectangle: 15.75" x 15.75" (400x400mm)

Maximum Bundle Capacity: 15.75 x 9.8" (400x250mm)

Band Saw Blade Width: 1-1/2" x 0.05" (41x1.3mm)

Maximum Blade Length: 220" (5580mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 7.5 hp (5.6kW)

Hydraulic Pump: 2 hp (1.5kW)

Coolant Pump: 0.16 hp (0.12kW)

Material Pass Line Height: 30-1/2" (775mm)

Machine Weight: 6040lbs (2740kg)

Dimensions W x L x H: 117 x 102.5 x 87" (2970x2600x2200mm)

Index Single Stroke Min-Max: 0.12-21.7" (3-550mm)

Auto Index Multiple Stroke Max: 394" (9999mm)

Standard Equipment:

Siemens saw control

Work light

Work height sensor

Power-driven, band brush

Hydraulic band tension

Worm chip conveyor

Automatic guide arm setting

Automatic feed control with programmable feed rates

Variable vise pressure control - Set of 2

Automatic retraction of material in cycle for protection of carbide blades

Dual acting index vice jaws for crooked stock

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
