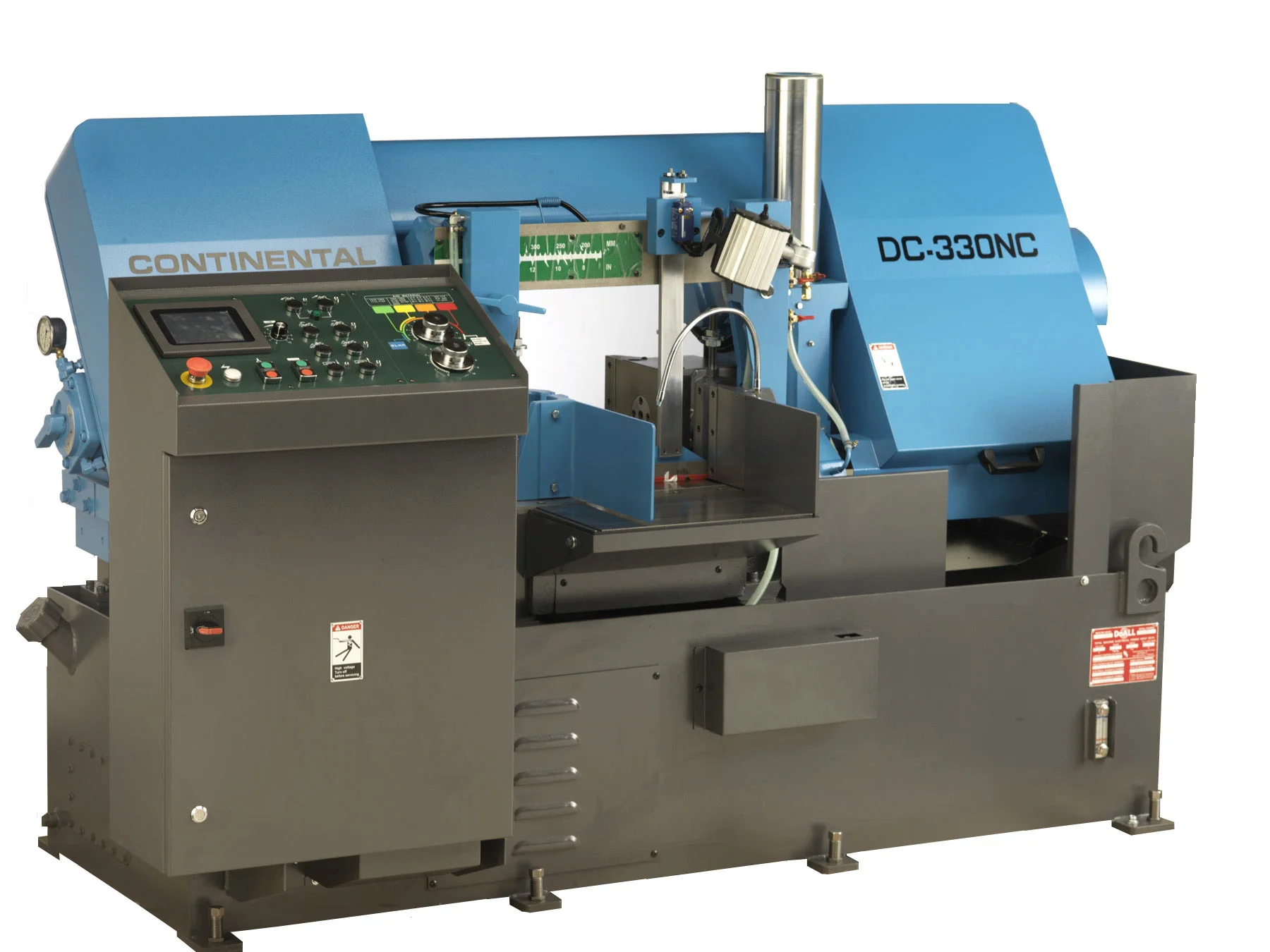

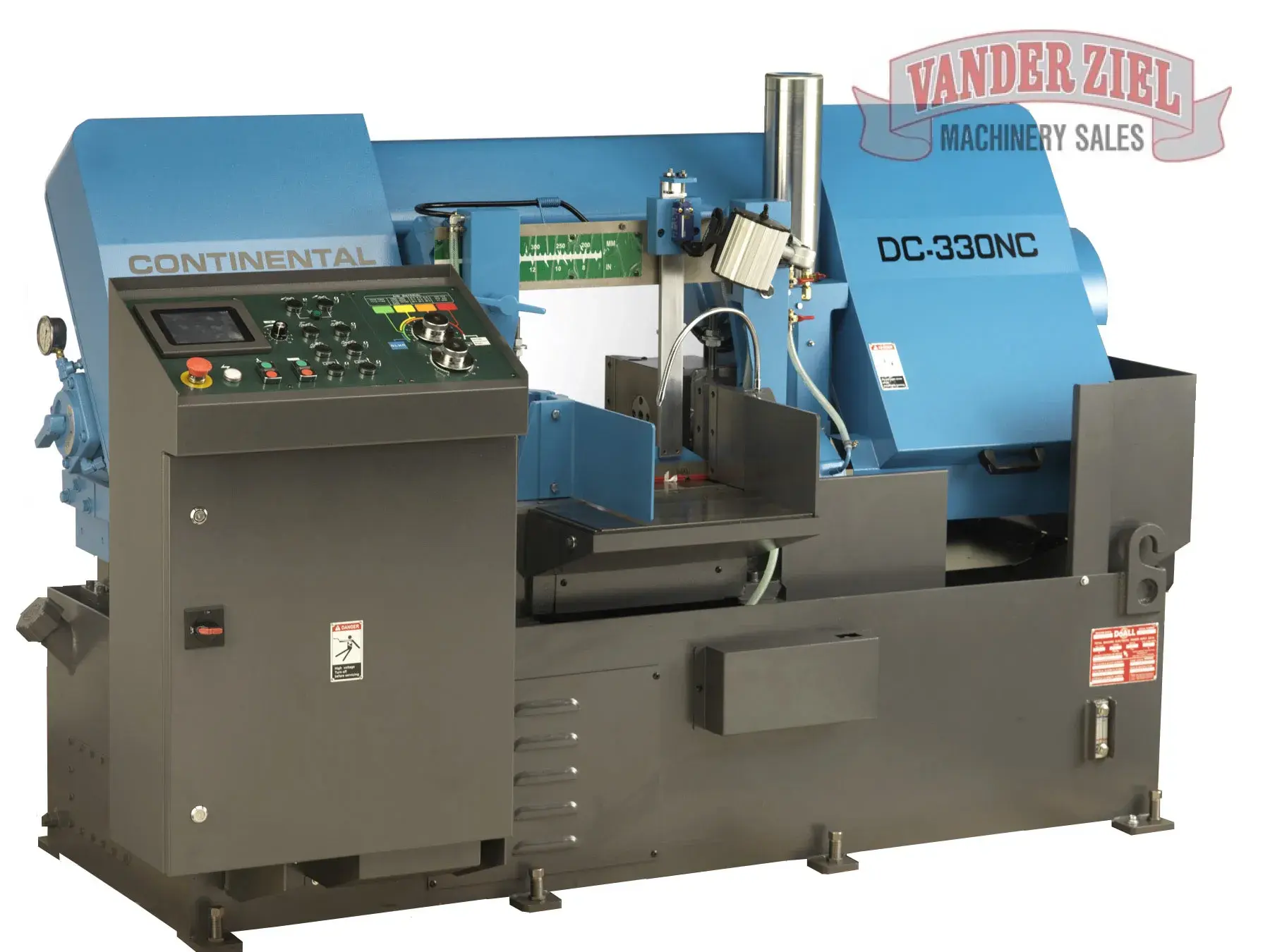

NEW DOALL DC-330NC

DoAll 15.75″ x 13″ Production Horizontal Saw, Model DC-330NC – NEW

Machine Capacity: 15-3/4 x 13″ (400x330mm) | Round: 13″ (330mm)
Production Level: High
The DC-330NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

Cutting Capacity Round: 13″ (330mm)
Cutting Capacity Rectangle: 15-3/4 x 13″ (400mm x 330 mm)
Bundle Capacity Maximum: 14-1/2 x 6-5/8″ (370mm x 170mm)
Bundle Capacity Minimum: 6-1/2″ x 2″ (165mm x 170mm)
Band Saw Blade: 1-1/4 x 0.042 x 167″ (32mm x 1.1x4242mm)
Band Speed: 72 – 390 SFPM (22 – 120 m/min)
Band Drive: 5 hp (3.75kW)
Hydraulic Pump: 1 hp (.75kW)
Hydraulic Tank Capacity: 16 Gal. (60 Liters)
Coolant Tank Capacity: 24 Gal. (90 Liters)
Automatic Index Length Single: 19.68″ (500mm)
Automatic Index Length Multiple: 177.16″ (4500mm)
Material Pass Line Height: 27-1/2″ (700mm)
Floor Space Required: 89 X 87 x 56″ (2250x2195x1400mm)
Machine Weight: 4410 lbs. (2000kg)
Standard Equipment:
PLC control for all electric and hydraulic functions
Infinitely variable speed controlled by VFD
Hydraulic retractable shuttle vise material indexer
Rapid and creep speed index vise control
Multi-step full stroke vises with split front vise and variable vise pressure control
Nesting fixture for bundle cutting
Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One 6 ½ ft. (2M) conveyor
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
