NEW DOALL DS-500SA

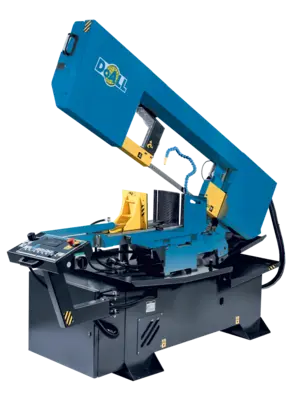

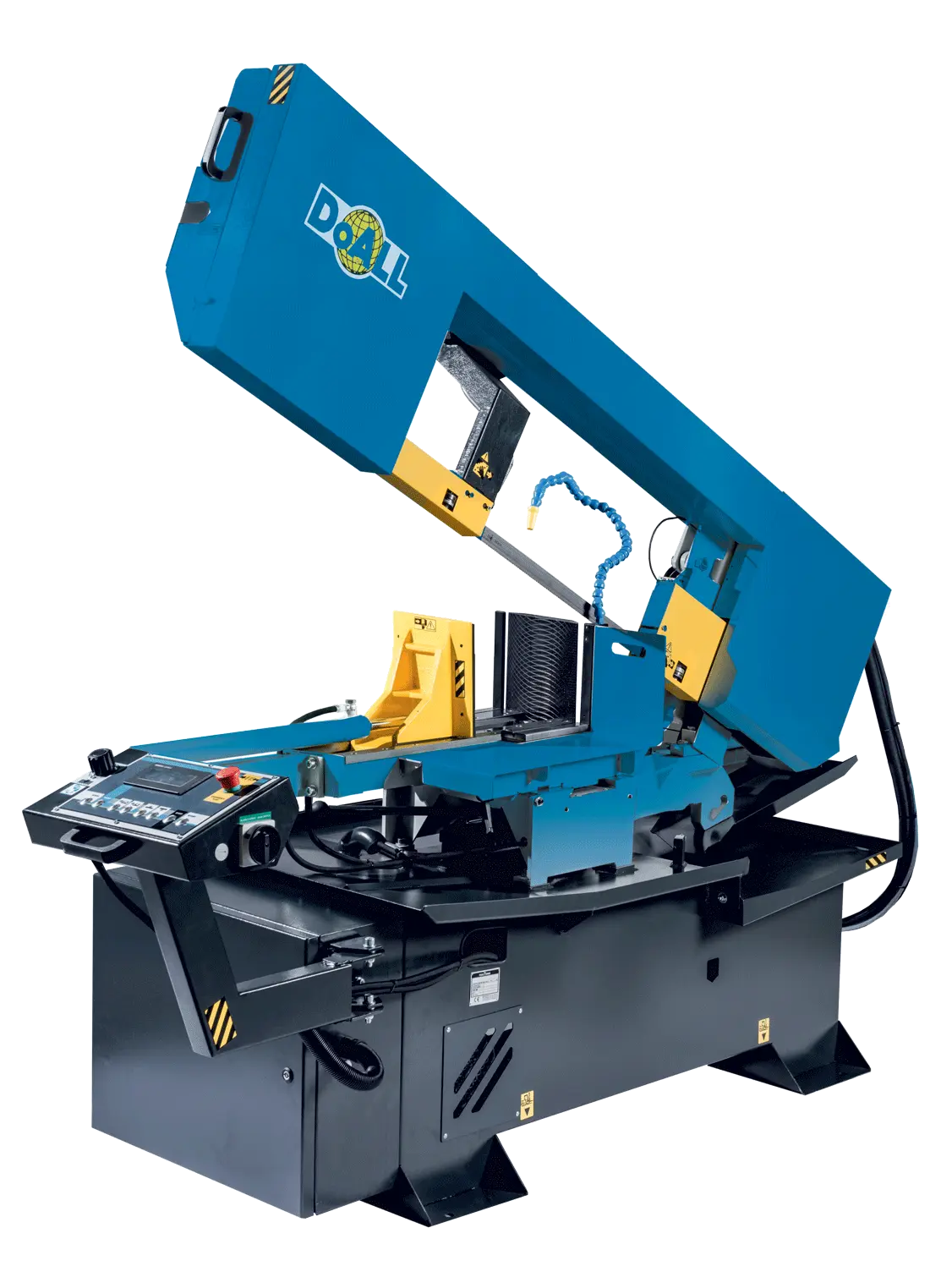

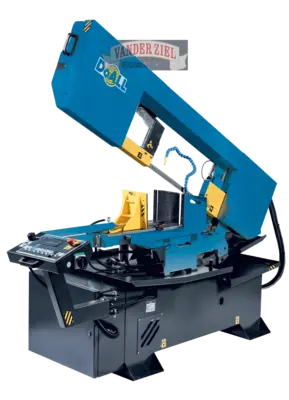

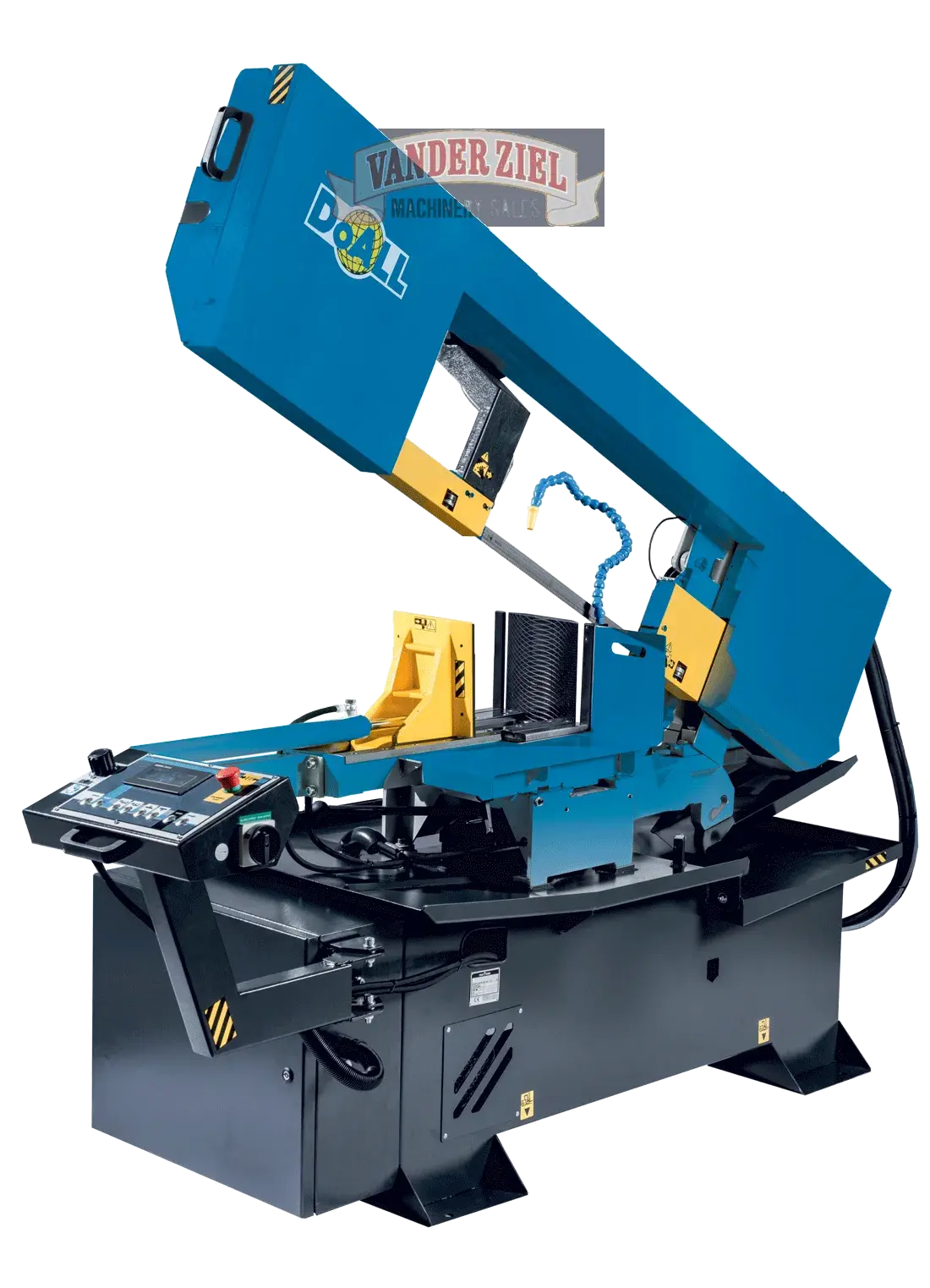

DoAll 14″ x 20″ Dual Miter Semi-Automatic Horizontal Saw, Model DS-500SA – NEW

Machine Capacity: 14×20″ (360x500mm)
Round Tube: 15″ (380mm) | Round Solid: 9-7/8″ (250mm)
Production Level: Intermittent
The DoALL DS-500SA StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the DS-500SA is ideal for machine shops, repair facilities and industrial manufacturing plants that need to occasionally cut metal solid and profile material. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

Cutting Capacity Round Tube: 14.17″ (360mm)
Cutting Capacity Rectangle: 14.17×19.69″ (360x500mm)
Cutting Capacity Round Solid: 9-7/8″ (250mm)
Miter Cutting: 60° left and 60° right
Capacity Round at 45°: 14.2″ (360mm)
Capacity Rectangle at 45°: 15.75″ x 7.5″ (400x190mm)
Capacity Round at 60°: 12.2″ (310mm)
Capacity Rectangle at 60°: 10.6″ x 12.6″ (270x320mm)
Band Saw Blade Width: 1-1/4″ x 0.042″ (34×1.1mm)
Maximum Blade Length: 188″ (4780mm)
Band Speed: 65-328 fpm (20-100mpm)
Band Drive: 4 hp (3kW)
Hydraulic Pump: 0.07 hp (0.05kW)
Coolant Pump: 0.6 hp (0.44kW)
Material Pass Line Height: 32-1/3″ (820mm)
Machine Weight: 1576 lbs (715kg)
Dimensions W x L x H: 109 x 38 x 90″ (2750x950x2270mm)
Standard Equipment:
Mitsubishi saw control
Variable frequency drive
Pulley-driven, band brush
Overfeed protection
Digital read out of cutting angle
Work light
Flood coolant
Tool kit
Complimentary DoALL cutting fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
