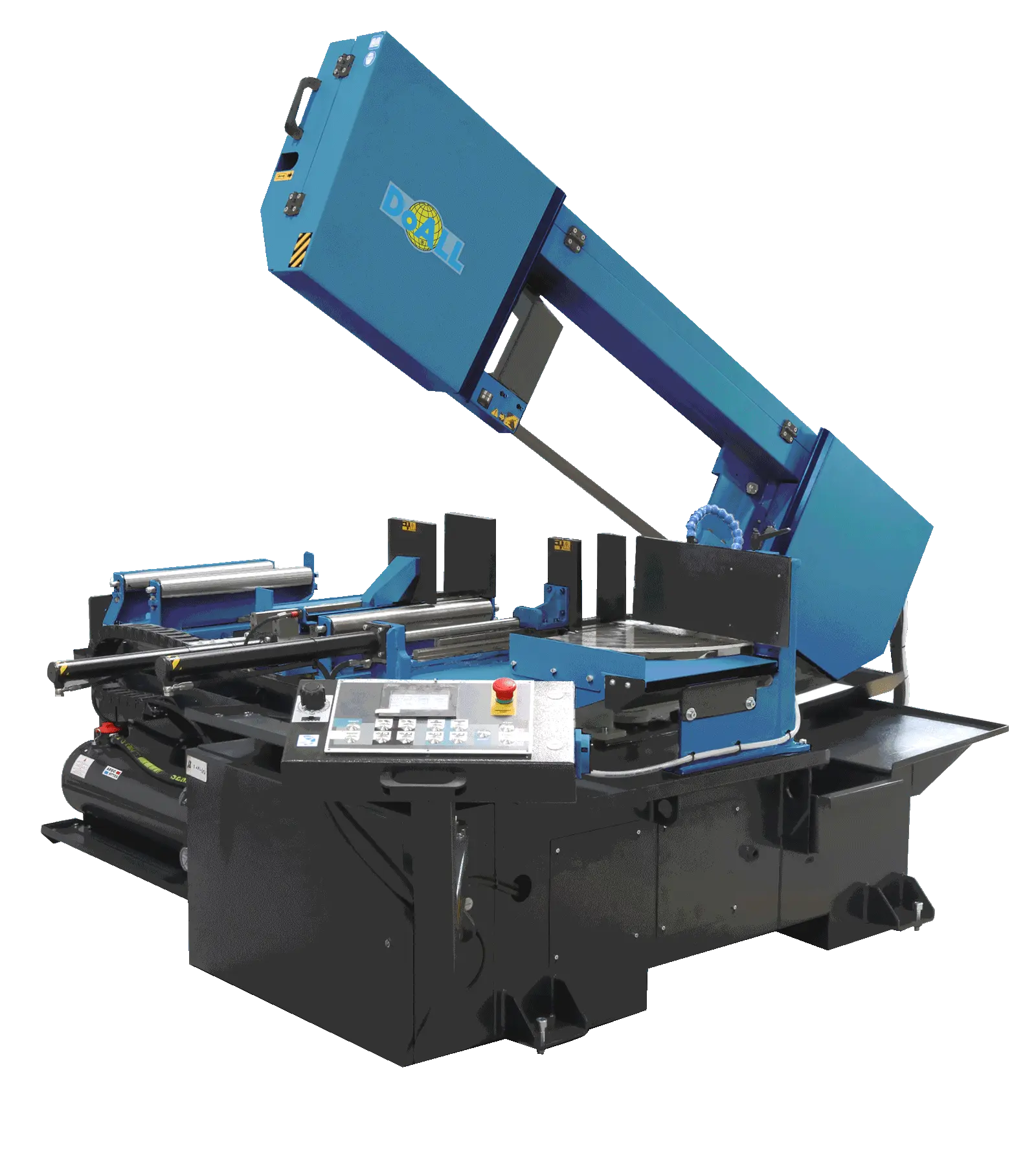

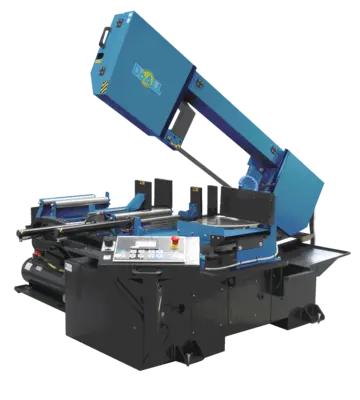

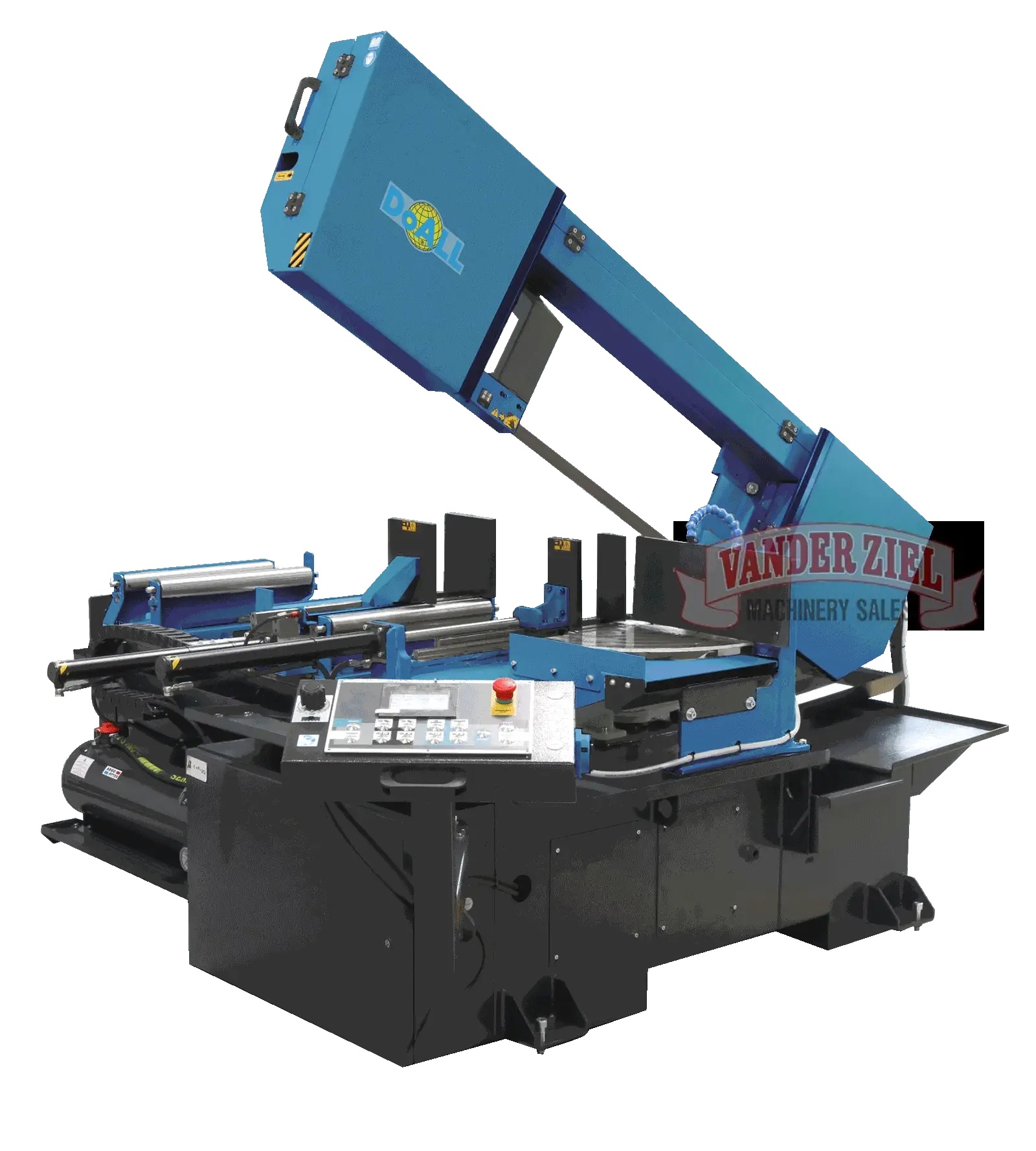

NEW DOALL S-500CNC

DoAll 14″ x 20″ Horizontal Saw, Model 500-SNC – NEW

Machine Capacity: 14″ x 20″ (355x508mm)
Production Level: Intermittent
The DoALL S-500CNC StructurALL® miter, CNC automatic, metal-cutting band saw is ideal for fabricating shops, maintenance facilities, tool and manufacturing plants. The S-500CNC can also be classified as a horizontal structural, scissor-style miter-cutting saw. Hydraulically controlled, this CNC machine provides automatic indexing for multiple material feeds. With the easy-to-use controller, operators need only remove the material that has been cut. Designed for vertical and angular cuts, the S-500CNC is adjustable to 60° to the right in semi-automatic mode only.
Cutting Capacity Round Tube: 14″ (360mm)
Cutting Capacity Rectangle: 14 x 20″ (360x500mm)
Cutting Capacity Round Solid: 9-7/8″ (250mm)
Miter Cutting: 60° right
Nesting Capacity (Min to Max): 0.20″ (5mm) to 23.6 x 9.8″ (600x250mm)
Auto Index Single Stroke Min-Max: 0.12-19.7″ (3-500mm)
Auto Index Multiple Stroke Min-Max: 394″ (9999mm)
Capacity Round at 45°: 14.2″ (360mm)
Capacity Rectangle at 45°: 7 x 14.2″ (180x360mm)
Capacity Round at 60°: 11.8″ (300mm)
Capacity Rectangle at 60°: 13.75 x 10.2″ (350x260mm)
Band Saw Blade: Width: 1-1/4 x 0.042″ (34×1.1mm), Length: 187″ (4750mm)
Band Speed: 65-328 fpm (20-100mpm)
Band Drive Motor: 4 hp (3kW)
Hydraulic Pump: 1.14 hp (0.85kW)
Coolant Pump: 0.07 hp (0.05kW)
Coolant Tank Capacity: 5-1/4 gal (20 lit)
Material Pass Line Height: 31-1/2″ (800mm)
Remnant Length Drop: 0.8″ (20mm)
Machine Weight: 3307 lbs (1500kg)
Dimensions W x L x H: 100 x 100 x 56″ (2550x2550x1420mm)

Standard Features
Mitsubishi saw control
Variable frequency drive
Pulley-driven band brush
Overfeed protection
Digital read out of cutting angle
Hydraulic band tension
Flood coolant
Tool kit
Complimentary DoALL cutting fluids package
One (1) complimentary DoALL bi-metal saw blade
Operations and parts manuals on CD or USB data stick
