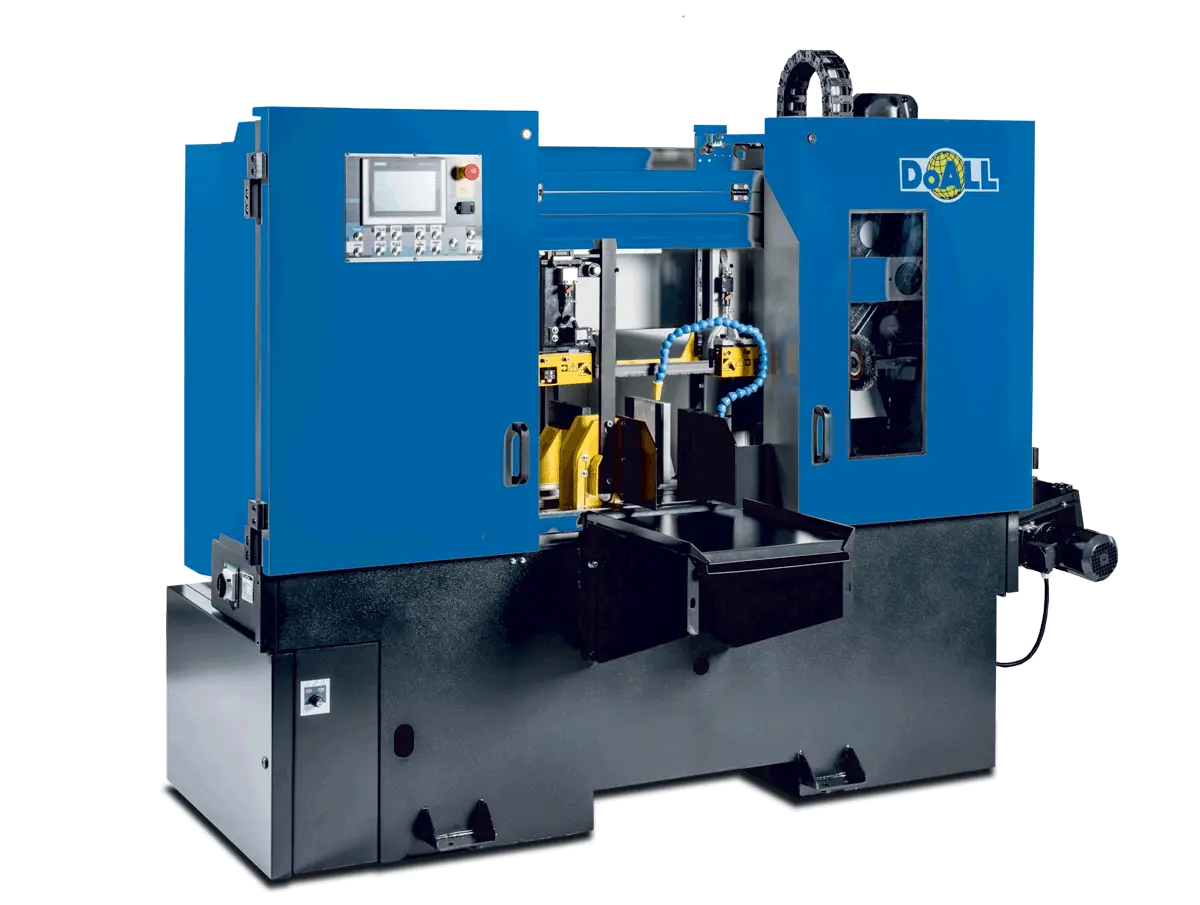

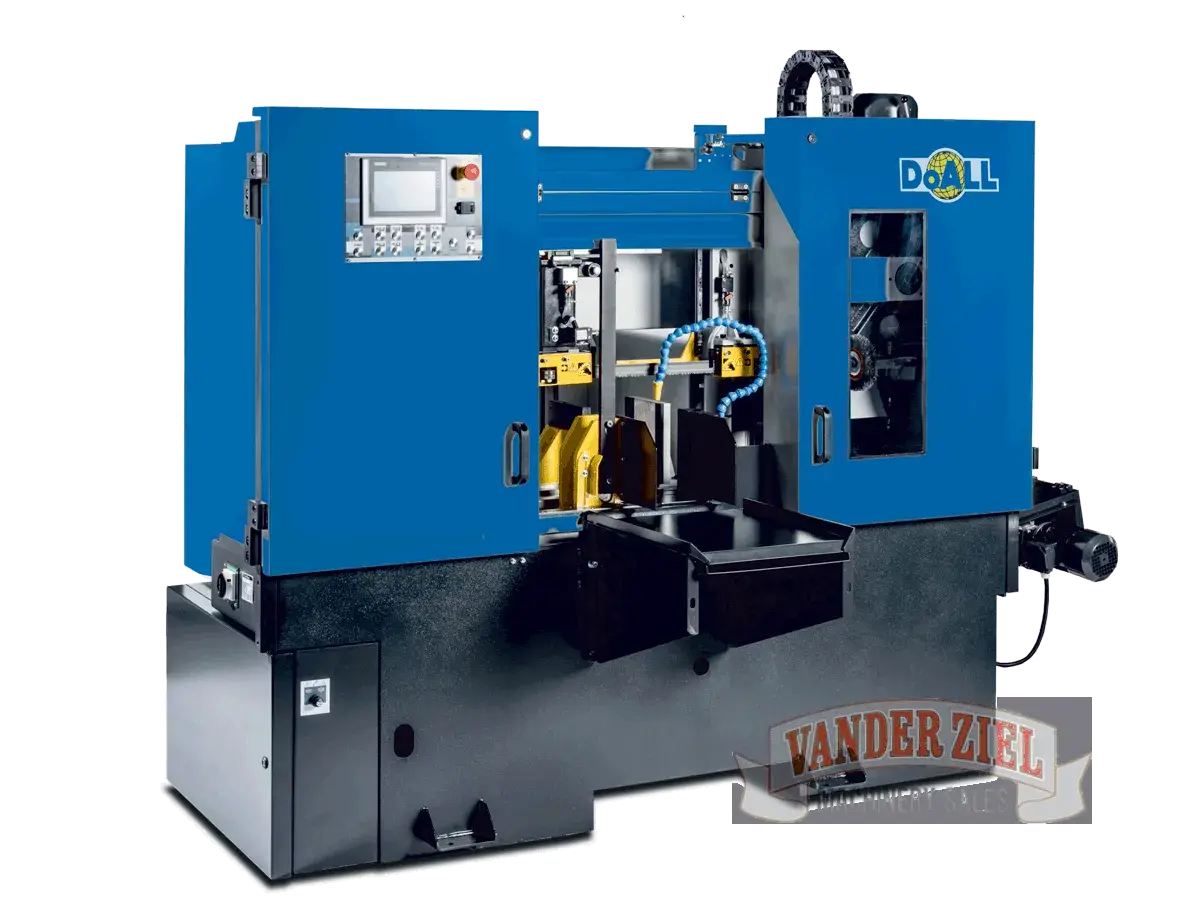

NEW DOALL DC-300CNC

DoAll 12" x 12" Dual Column Enclosed CNC Bandsaw, Model DC-300CNC - NEW
SKU #1120028
Machine Capacity: 12x12" (300x300mm)
Round Tube: 12" (300mm) | Round Solid: 9-7/8" (250mm)
Production Level: Extreme
The DC-300CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-300CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the dual column design of the DC-300CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

Cutting Capacity Round Tube: 11.8" (300mm)

Cutting Capacity Round Solid: 9-7/8" (250mm)

Cutting Capacity Rectangle: 11.8 x 11.8" (300x300mm)

Maximum Bundle Capacity: 11.8 x 8.7" (300x220mm)

Band Saw Blade Width: 1-1/4 x 0.043" (34x1.1mm)

Maximum Blade Length: 178" (4520mm)

Band Speed: 65-328 fpm (20-100mpm)

Band Drive: 5 hp (4kW)

Hydraulic Pump: 1 hp (0.75kW)

Coolant Pump: 0.16 hp (0.12kW)

Material Pass Line Height: 31-1/2" (800mm)

Machine Weight: 3131lbs (1420kg)

Dimensions W x L x H: 87 x 82 x 85" (2200x2080x2140mm)

Index Single Stroke Min-Max: 0.2-19.9" (5-505mm)

Auto Index Multiple Stroke Max: 394" (9999mm)

Standard Equipment:

Siemens saw control

Hydraulic band tension

Work light

Power-driven, band brush

Automatic guide arm setting

Work height sensor

Automatic feed control with programmable feed rates

Variable vise pressure control - Set of 2

Worm chip conveyor

Discharge chute

Automatic retraction of material in cycle for protection of carbide blades

Flood coolant

Tool kit

Complimentary DoALL cutting fluids package

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
