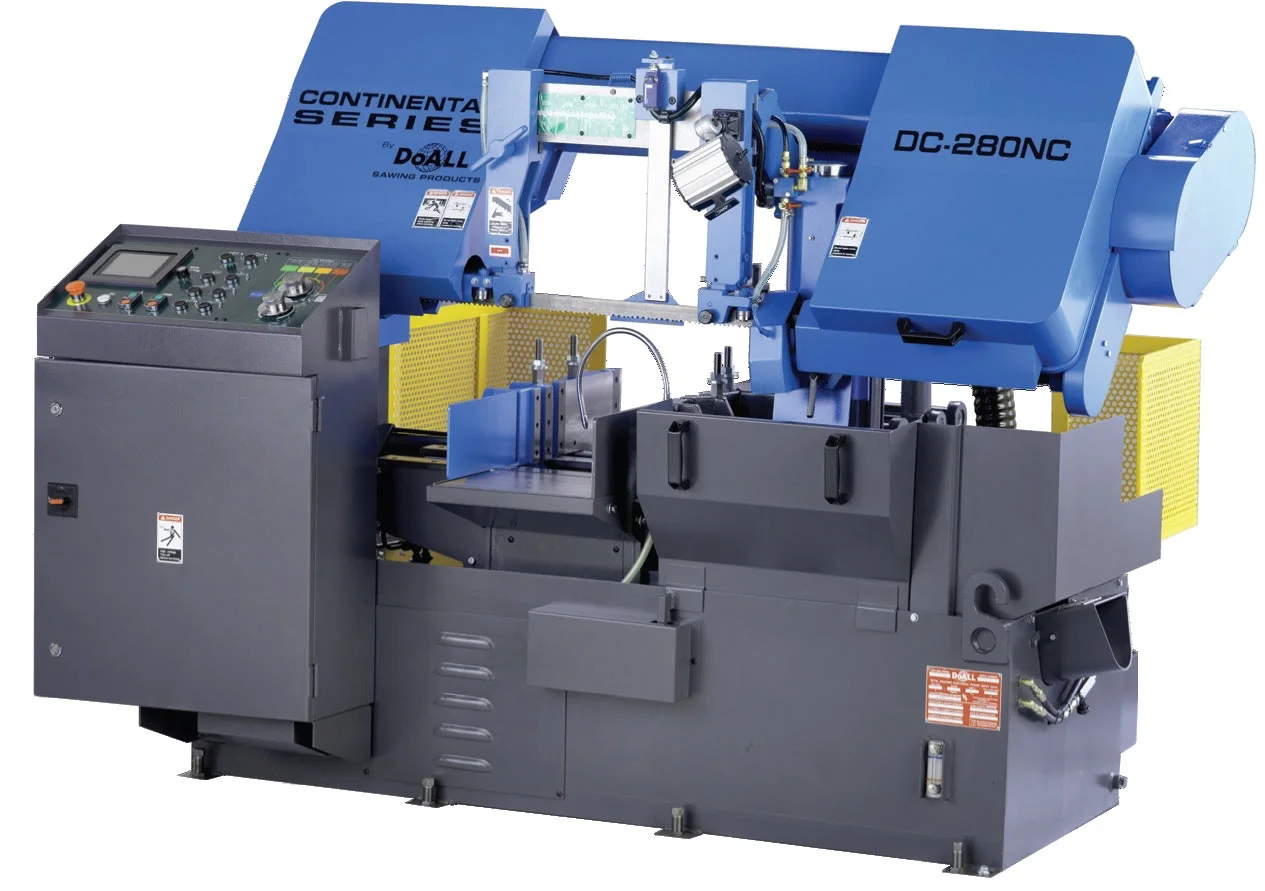

NEW DOALL DC-280NC

DoAll 11.75″ x 11″ Production Horizontal Saw, Model DC-280NC – NEW

Machine Capacity: 11-3/4 x 11″ (300x280mm) | Round: 11″ (280mm)
Production Level: High
The DC-280NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

Cutting Capacity Round: 11″ (280mm)
Cutting Capacity Rectangle: 11-3/4″ W x 11″ H (300mm x 280mm)
Bundle Capacity Maximum: 9-3/4″ W x 4″ H (250mm x 100mm)
Bundle Capacity Minimum: 6-1/2″ W x 5/8″ H (165mm x 15mm)
Band Saw Blade: 1-1/4 x 0.042 x 151″ (32×1.1x3820mm)
Band Speed: 72-390 fpm (22-120mpm)
Band Drive: 5 hp (3.7 kW)
Hydraulic Pump: 1 hp (.75kW)
Hydraulic Tank Capacity: 16 Gal. (60 Liters)
Coolant Tank Capacity: 20 Gal. (80 Liters)
Automatic Index Length Single: 15.75″ (400mm)
Automatic Index Length Multiple: 141.73″ (3600mm)
Material Pass Line Height: 27-1/2″ (700mm)
Floor Space Required: 83 x 79 x 51″ (2100x1990x1300mm)
Machine Weight: 3858 lbs. (1750kb)
Standard Equipment:
PLC control for all electric and hydraulic functions
Infinitely variable speed controlled by VFD
Hydraulic retractable shuttle vise material indexer
Rapid and creep speed index vise control
Multi-step full stroke vises with split front vise and variable vise pressure control
Nesting fixture for bundle cutting
Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Hydraulic blade tension
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One 6 ½ ft. (2M) conveyor
Set up tools and tool box
Complimentary DoALL Cutting Fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
