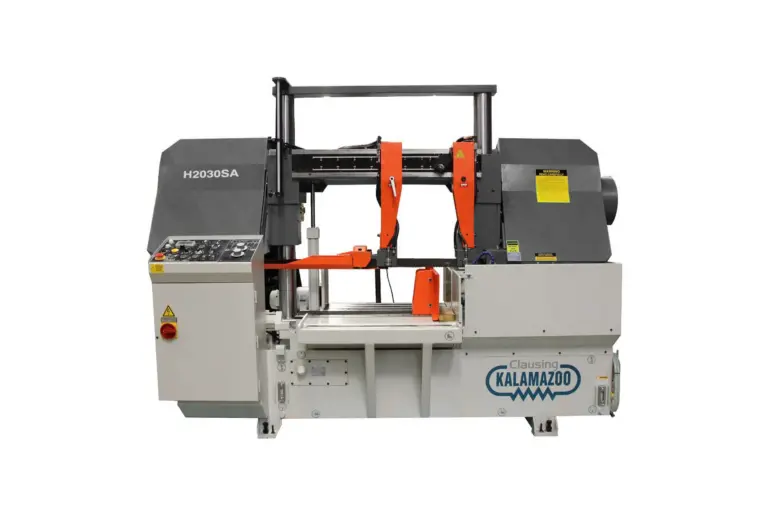

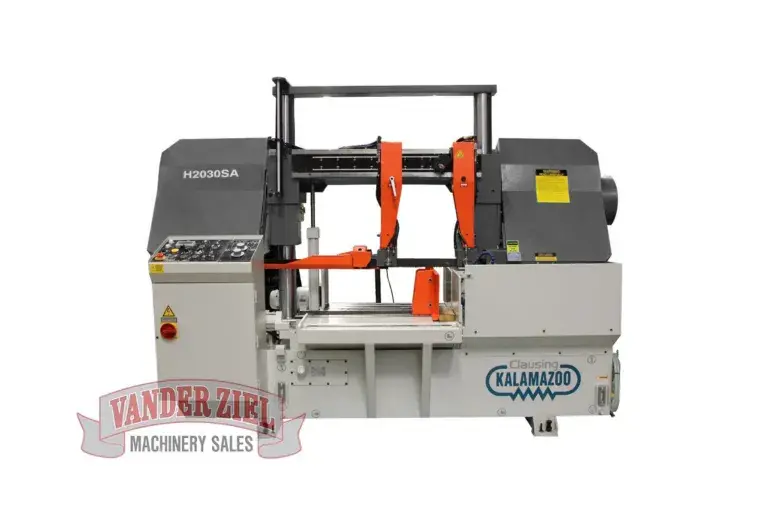

Clausing Kalamazoo 20″ x 29.5″ Semi-Automatic Horizontal Bandsaw, Model H2030SA – NEW
Standard Features…
Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
Infinitely variable blade speed
Digital blade speed indicator
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
Automatic shutoff at end of material or after preset number of cuts
LCD digital blade speed monitor
Precision feed pressure & feed rate
Cast iron vises with replaceable hardened wear plates
Discharge table with built-in coolant return
Blade slippage or breakage detection
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
otor
7.5 Hp (5.5 kw), 230/460v 3ph*
Hydraulic Pump Motor
2 Hp (.75 kw)
Hydraulic Oil Capacity
10 gallons (40 liters)
Blade Speeds (Variable speed)
66-328 fpm (20-100 m/min)
Blade Size (W x T x L)
2″ x .063″ x 238 ” (54 x 1.6 x 6040mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
21.5 gallons (85 liters)
90° Cutting Capacity
Round
20″ (500mm)
Square
20″ (500mm)
Rectangular
20″ x 29.5″ (500 x 750mm)
Length
55.5″ (1410mm)
Width
124″ (3150mm)
Height
79″ (2010mm)
Bed Height
27.5″ (700mm)
Net Weight
4,620 lbs (2100 kg)
Shipping Weight
5,720 lbs (2600 kg)
