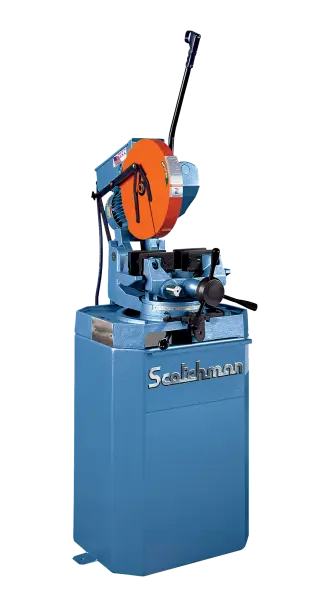

NEW SCOTCHMAN CPO 350

Scotchman 14″ Cold Saw, Model CPO 350 – NEW

Specifications:
Cutting Speeds
Must Specify when Ordering
LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn)
22 rpm / 44 rpm
HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
HT (High Turn) 44 rpm / 88 rpm
VS (Variable Speed) ~ wired 230/460, 3-ph
VS (Variable Speed) 11 / 177 rpm
VS (Variable Speed) ~
wired 220, 1-ph
VS (Variable Speed) ~
11 / 177 rpm
SS (Single Speed) designed for 220v 1 ph applications
SS (Single Speed) 44 rpm
TUBING
Round
SquareRectangleSOLID
Round
Square
90 Degree
4-1/2″ (114 mm)
4-1/4″ x 4-1/4″ (108 x 108 mm)
5-1/2″ x 4″ (140 x 102 mm)90 Degree
2″ (51 mm)
2″ x 2″ (51 x 51 mm)
Factory Wired
Specify
208 3 ph
230 3 ph
460 3 ph
575 volt, 3 ph 60 hz
220 1-ph 60 Hz (SS Model only)
Maximum Diameter Blade
14″
Arbor Bore
1-9/16″
Pin Spacing
4/12/64
Width
21-7/8″
Depth
43-1/2″
Height not including handle
56-1/4″
Height from floor to vise
37-7/16″
Shipping Weight
660 lbs.
