NEW SCOTCHMAN CPO315 HFA NF

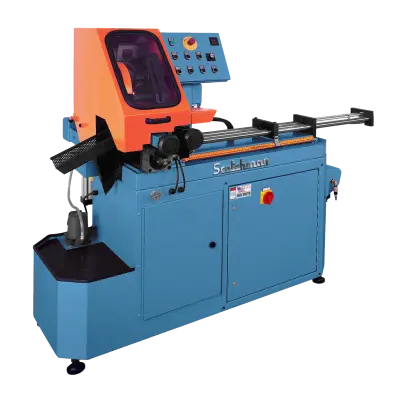

Scotchman 12″ Hitch Feed Automatic Non-Ferrous Cold Saw, Model CPO315 HFA NF – NEW

Specifications:
Cutting Speeds
Based on Mild Steel
CPO 315 HFA NF
Cutting Capacities
Based on Mild Steel
Round Tube
Square TubeRound Solid
Square Solid(NF Saw)
Length Tolerance
+ or – 0.006″ per index
Squareness Tolerance
+ or – 0.002 per diameter inch
Minimum Cut Length
1/8″
Maximum Cut Length
Single Index 30″
Double Index 60″
Triple Index 90″
Motor HP Non-Ferrous Models
5 hp
Power Supply
208/230/460
3 Ph
(must specify voltage)
Air Pressure
90 lbs. Minimum
Maximum Saw Blade Diameter
12-1/2″
Arbor Bore Size
40 mm
Pin Spacing
4/12/64
Dimensions
L-100″ x W-44″ x H-64″
Shipping Weight
1,770 lbs.
