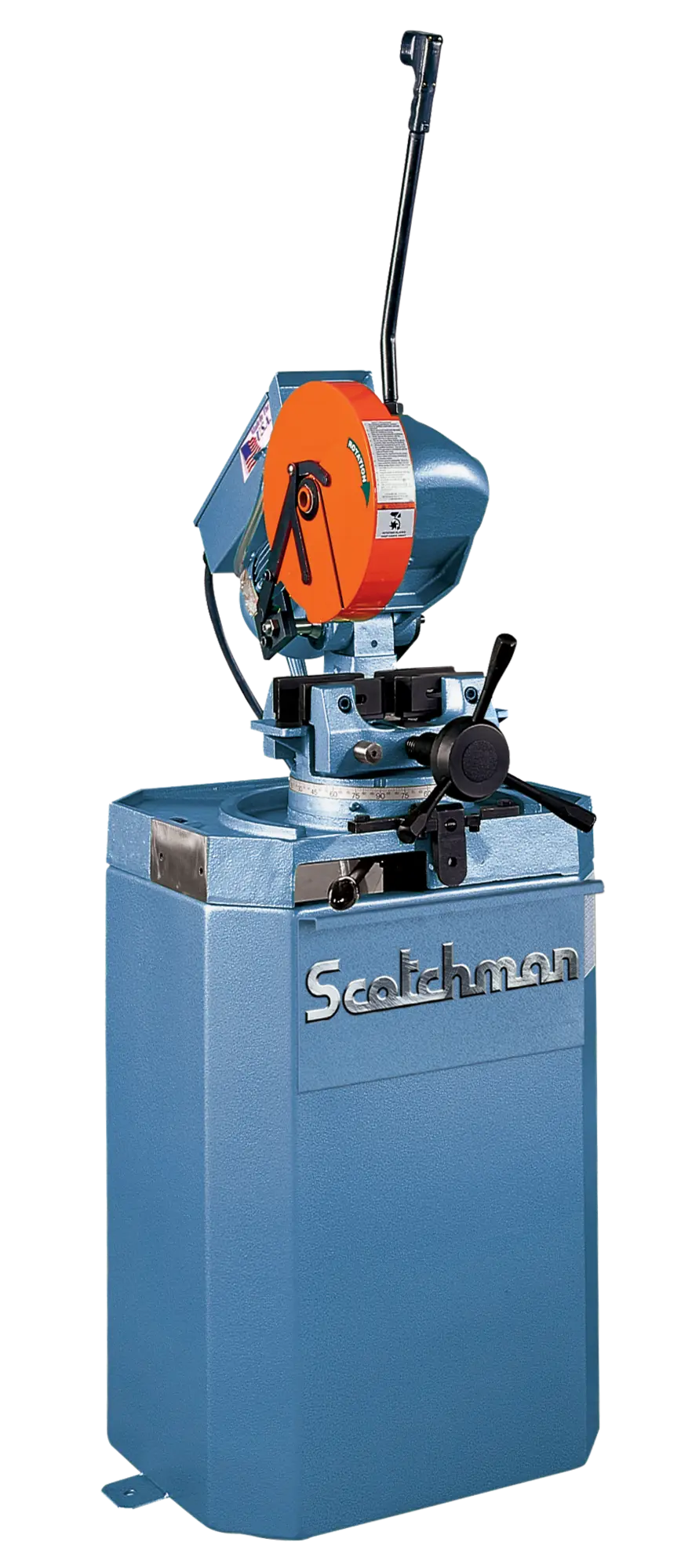

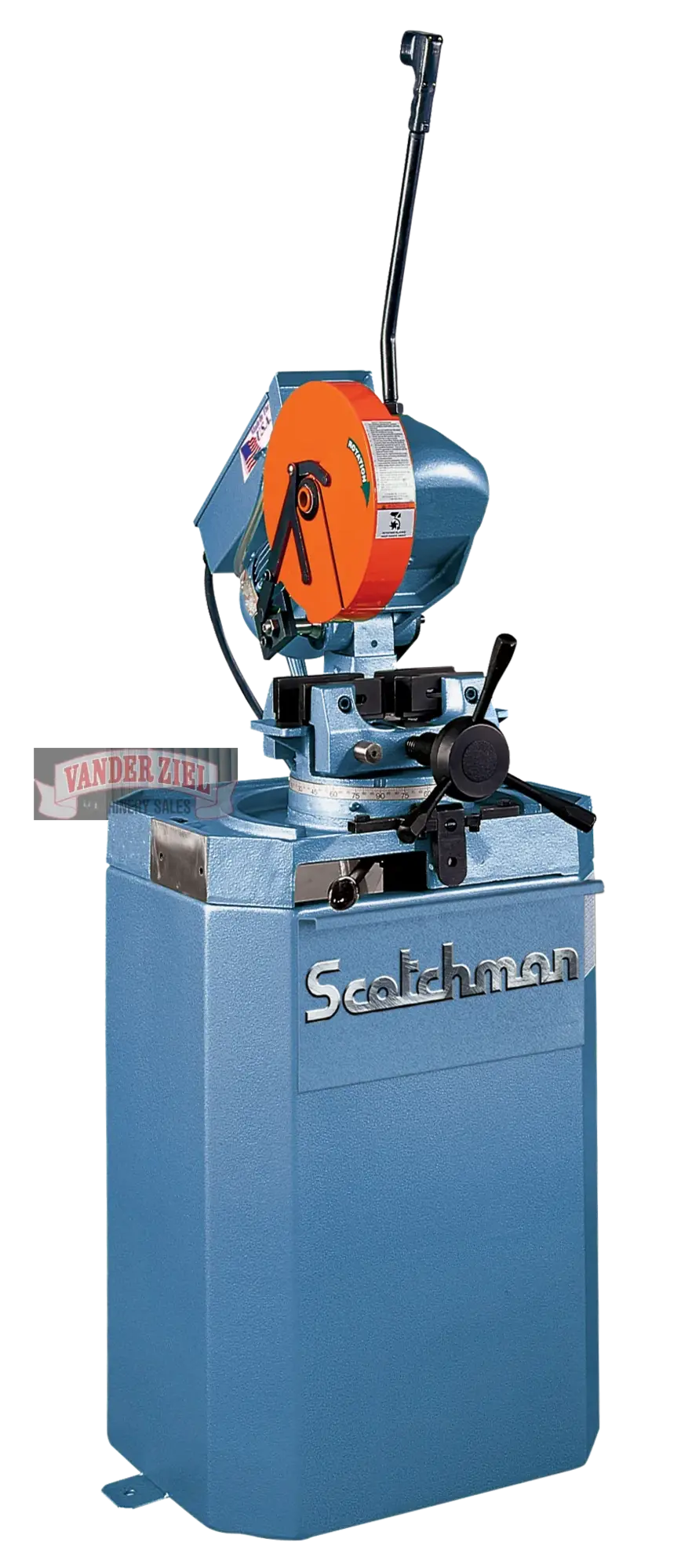

NEW SCOTCHMAN CPO 275

Scotchman 10″ Cold Saw, Model CPO 275 – NEW

Specifications:
Cutting Speeds
Must Specify when Ordering
LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn)
30 rpm / 60 rpm
HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
HT (High Turn)
60 rpm / 120 rpm
SS(Single Speed) designed for 220v 1 ph applications
SS (Single Speed)
60 rpm
TUBING
Round
Square
Rectangle
90 Deg
3-3/8″ (86 mm)
3″ x 3″ (76 x 76 mm)
3″ x 2-3/8″ (76 x 60 mm)
SOLID
Round
Square
90 Deg
1-1/2″ (38 mm)
1-1/2″ x 1-1/2″ (38 x 38 mm)
Factory Wired
Specify
208 3 ph
230 3 ph
460 3 ph
575 volt, 3 ph 60 hz
220 1 ph (SS Model Only)
Maximum Diameter Blade
10-3/4″
Arbor Bore
1-1/4″
Pin Spacing
2/8/45
Width
21-7/8″
Depth
43-1/2″
Height not including handle
53-1/4″
Height from floor to vise
36-1/8″
Shipping Weight
550 lbs.
