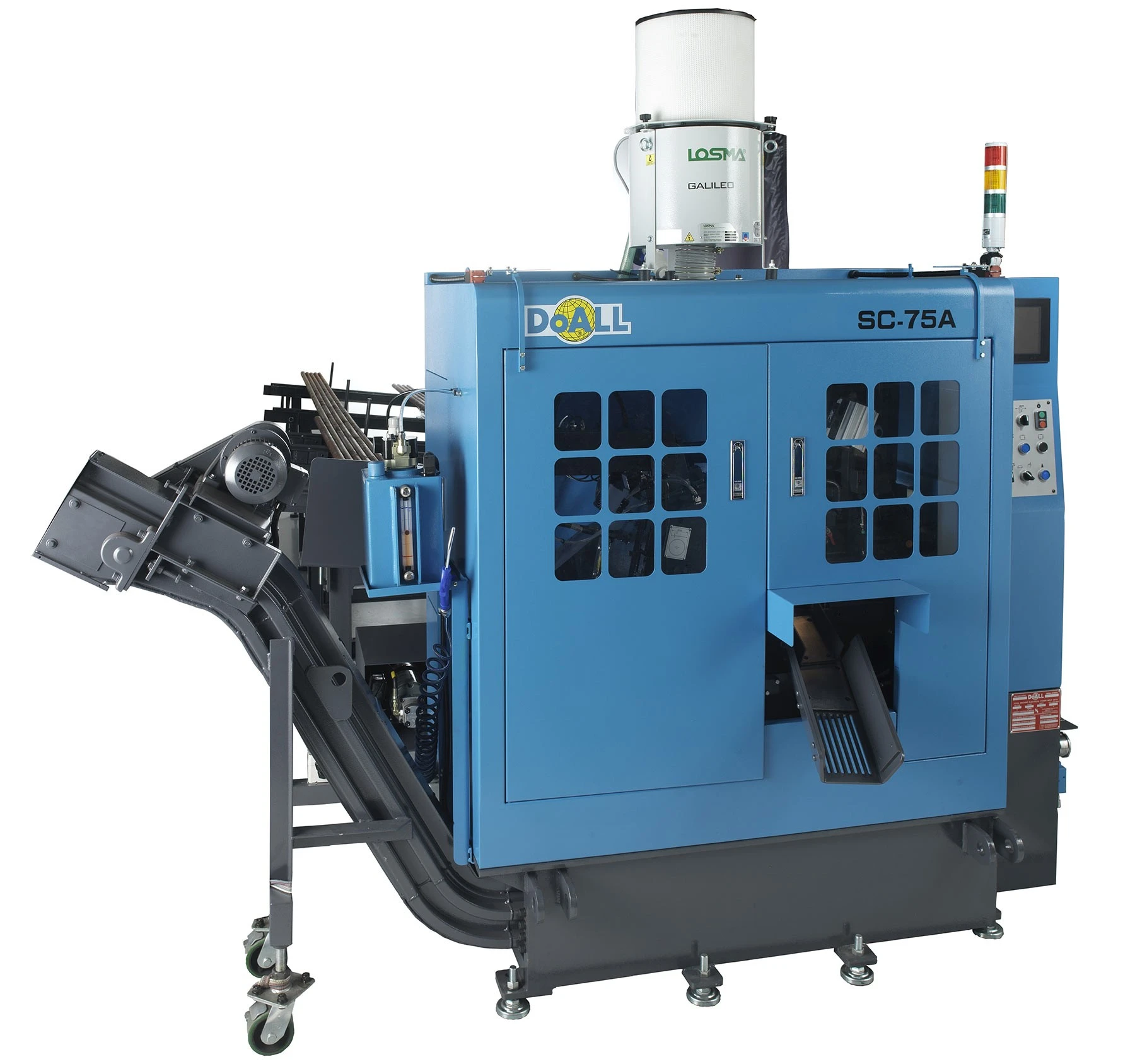

DoAll 11″ Automatic Cold Saw, Model SC-75A – NEW
Machine Capacity: 0.3-2.36″ (8-60mm)
Production Level: High
The DoALL SC-75A circular saw offers automatic operation, numerical control and features solid heavy-duty construction which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. This automatic cut off, cold saw is designed for cutting a wide range of metals on a high production basis.
Cutting Capacity Round: 0.3″ – 3″ (8 – 75mm)
Cutting Capacity Rectangle: 0.3-2.36″ x 0.3-2.36″ (8-60×8-60mm)
Blade Motor: 10 HP (7.5 kW)
Hydraulic Pump Motor: 2 HP (1.47 kW)
Blade Speed: 30 – 150 rpm
Blade Length: 11.2″ (285mm)
Blade Width: 0.079″ x 0.069″ (2×1.75mm)
Feed System: Servo Motor and Ball Screw
Automatic Feed Length Single: 0.24″ to 24″ (6-600mm)
Automatic Feed Length Multiple: 118″ to 236″ (3000-6000mm)
Cooling: Air Compressed Oil Mist
Machine Weight With Table: 6173 lbs. (2800 kg)
Floor Space Machine With Table (LxW): 267″ x 109″ (6,755×2,765mm)
Standard Equipment:
PLC control for all electric and hydraulic functions
Easy conversational HMI
Infinitely variable blade speed controlled by inverter
Hydraulic front & vertical vises
Floating shuttle device
Hydraulic sorting chute
Electro-magnetic power brake
Automatic chip conveyor
Powered band brush
Air blow device for tube cutting
Automatic loading table for round bar
Cutting mist oil – 5 Gallons
Work light
Set up tools and tool box
Instruction and parts manuals on CD
