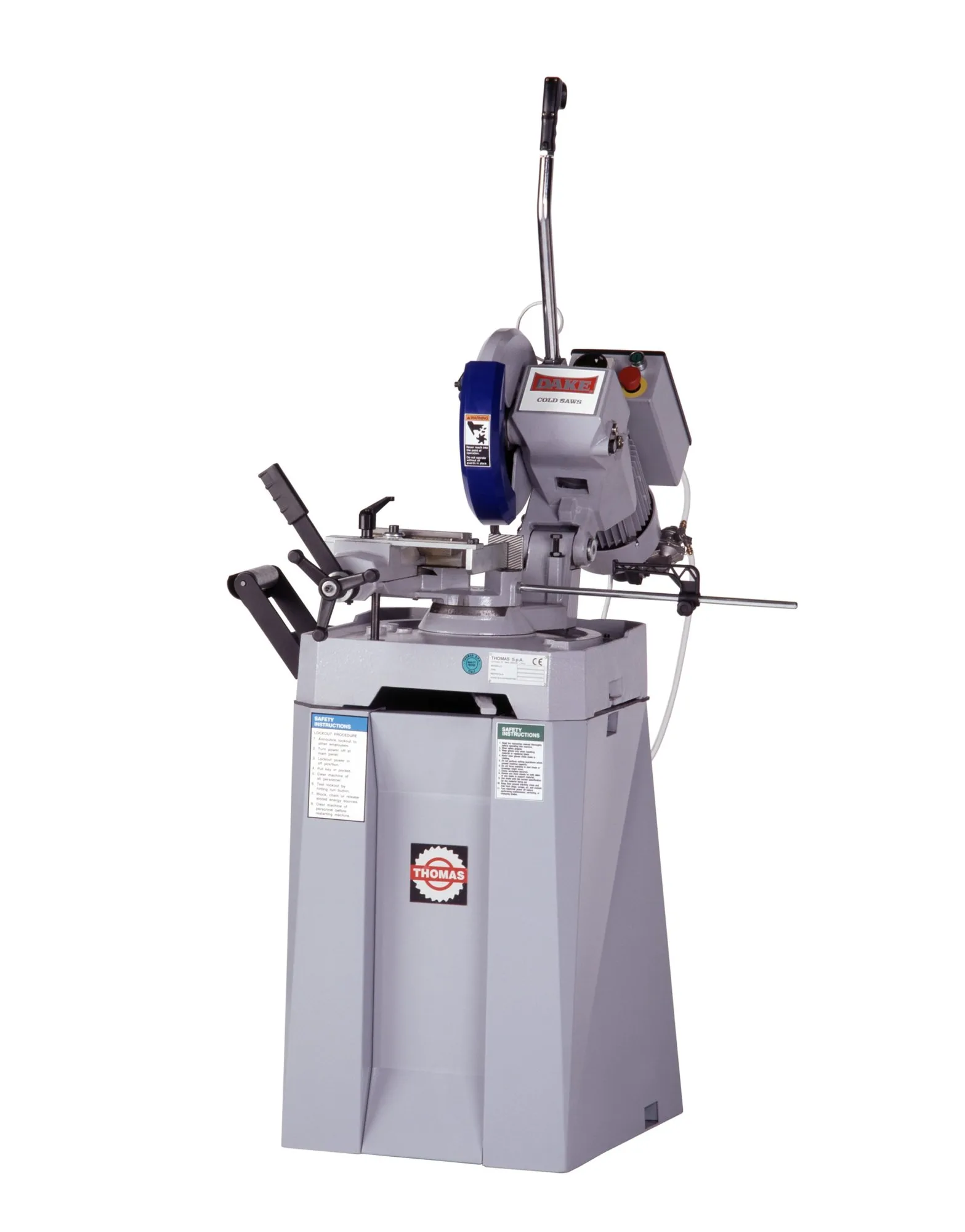

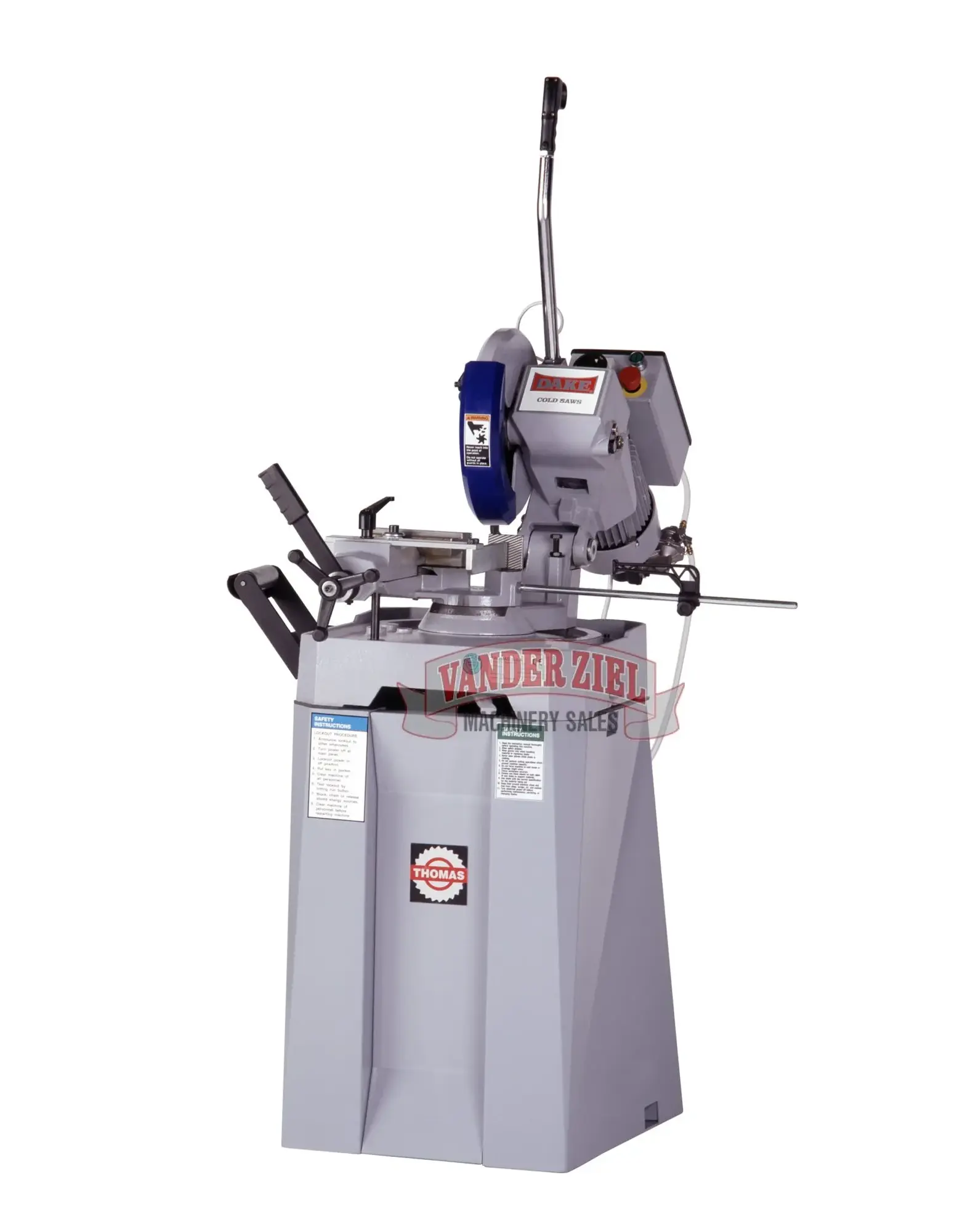

Dake 12 1/2″ Manual Cold Saw, Model Super Cut 315 – NEW
Number
9743151PH-1, 974315-2
Voltage
220V/440V 3 Phase; 120V 1 Phase
Horsepower
1.6 HP – 2.35 HP
Cutting Ability
Ferrous/non-ferrous/plastics
Maximum blade diameter
12-1/2”
Maximum vise opening
4-5/8″
Maximum feed vise opening
n/a
Maximum Angle
45° right/left
Slotting
No
Phase
3 Phase/1 Phase
Speeds
Three Phase: 22/44 rpm Single Phase: 44 rpm
Weight
450 lbs
Solid round 90˚ capacity
2-5/8”
Solid round 45˚ capacity
2-1/2”
Tube 90˚ capacity
3-5/8”
Tube 45˚ capacity
3-1/2”
Square 90˚ capacity
3-1/4”
Square 45˚ capacity
3-1/8”
Rectangle 90˚ capacity
4-1/4” x 2-3/4”
Rectangle 45˚ capacity
3-1/4” x 2-3/4”
Work height
38-1/2”
Height
59”
Width
26″
Depth
36”
