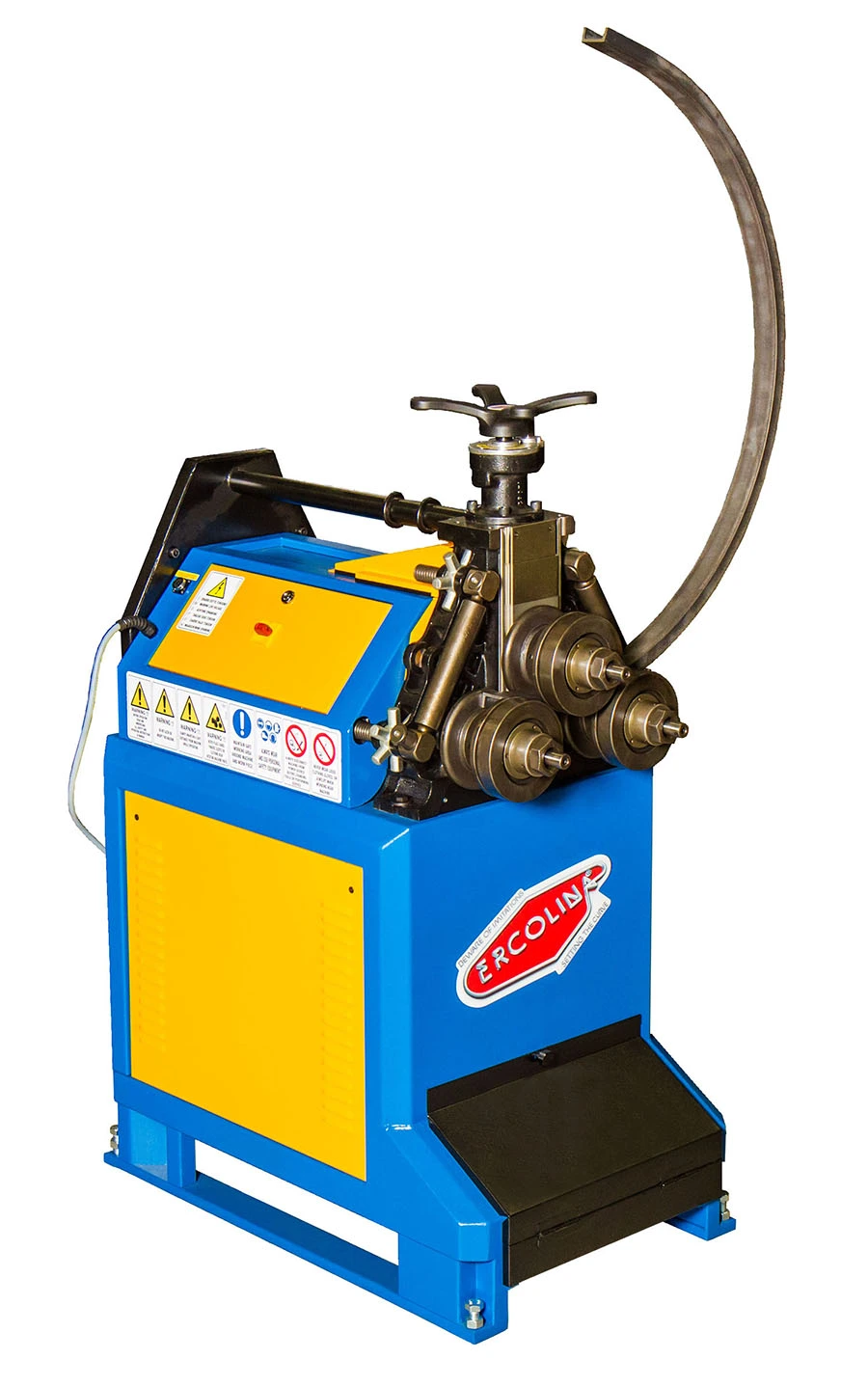

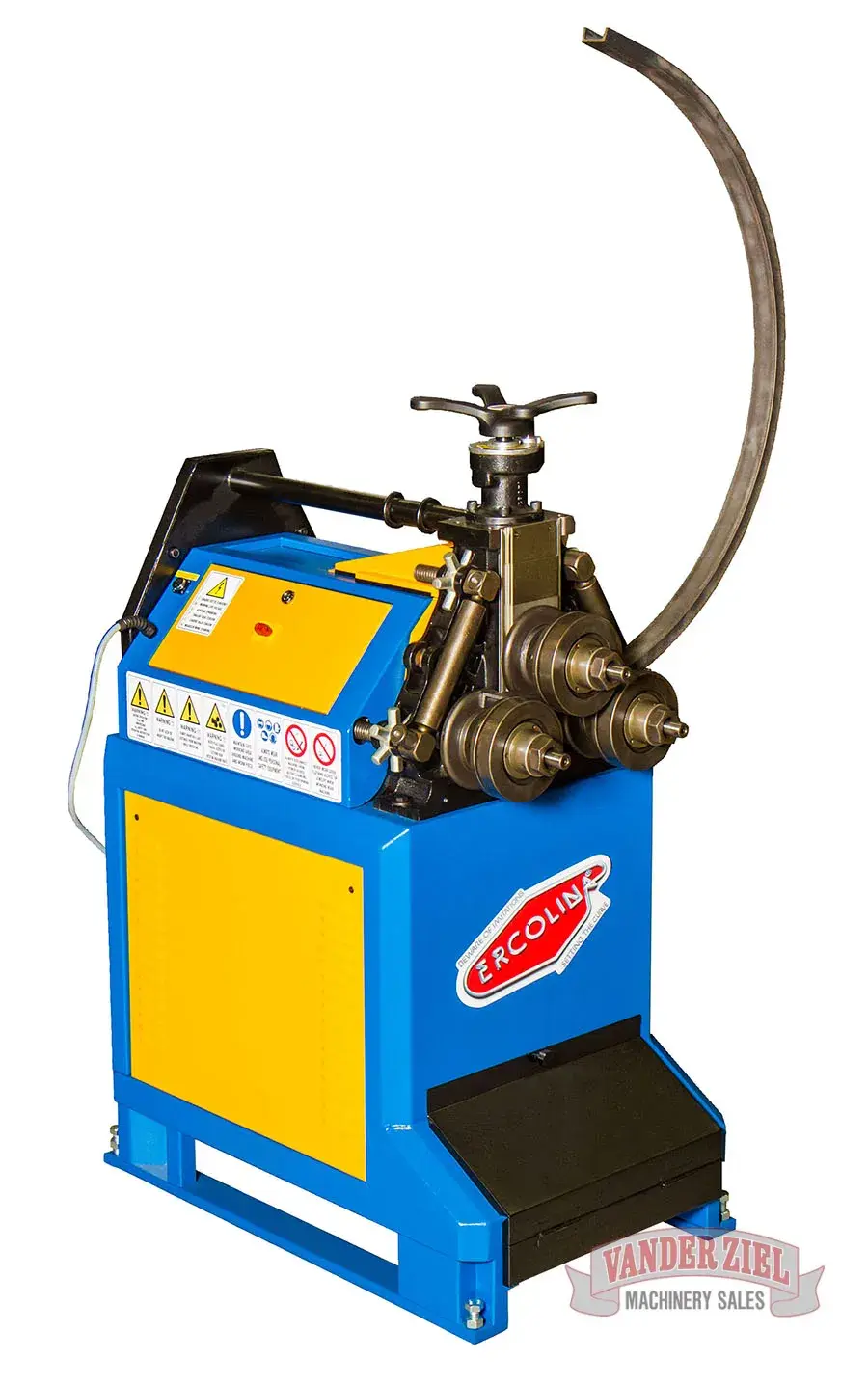

Ercolina 2 1/2″ Manual Angle Roll, Model CE40MR3 – NEW
Universal tooling set forged with smooth surface included with each machine
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Roll shafts supported with conical steel bearings on each side of A Frame
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
In-line direct drive roll shaft system 3-roll driven
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Touchpad controls with digital center roll positioning
Control tower with low voltage controls and foot pedal
2-speed gear box with torque multiplier for positioning center roll
Optional anti-twist correction system required for angle iron “Leg In” applications
Pipe (Max.) 2′′ Sch. 40
Angle (Max.) 2′′ x 2′′ x ¼′′
Tube (Max.) 2½′′ – .125 wall
Roll Shaft Diameter 40mm
Center Roll Positioning Manual with patented torque multiplier
Shaft Speed 10 RPM
Universal Tooling (Included) 6⅝′′ O.D.
Programming Not available
Distance between Shafts 10⅝′′
Operating Voltage 220V or 480V 3ph
Length, Width, Height 39′′ x 26′′ x 59′′
Weight 763 lbs.
All capacities based on mild grade materials;
heavy wall and high tensile materials reduce machine capacity.
