Serial #611096
Equipped with:

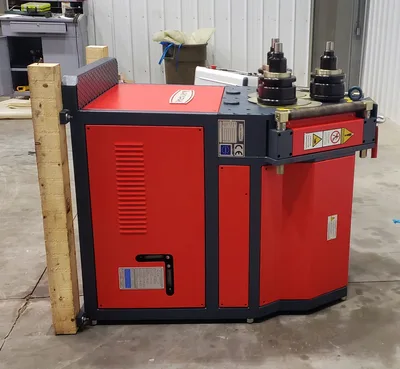

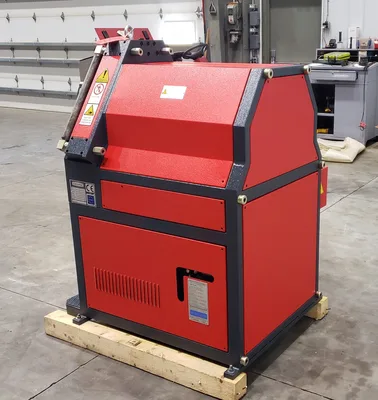

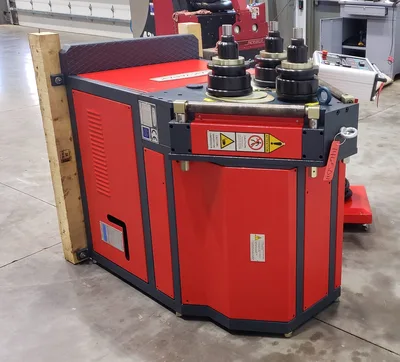

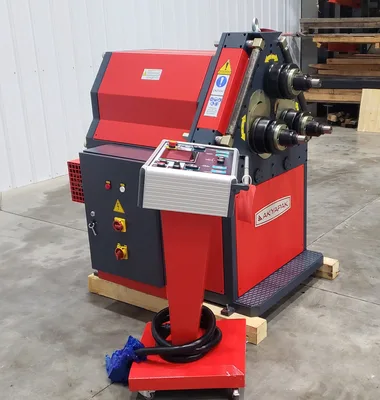

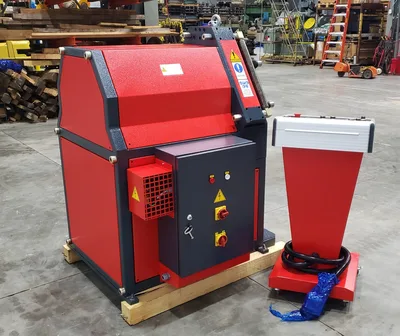

APK 61 Angle Bending Roll
Machine body is steel (ST-52) construction
On APK61 rolls are driven by a hydraulic motor+planetry gearbox and gears
Shafts made of special steel, hardened and grounded
APK61 guide rolls are adjustable manually in one direction

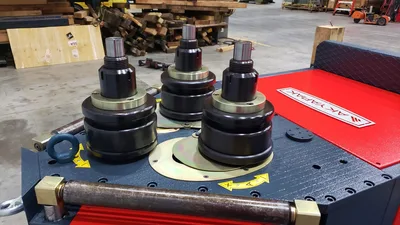

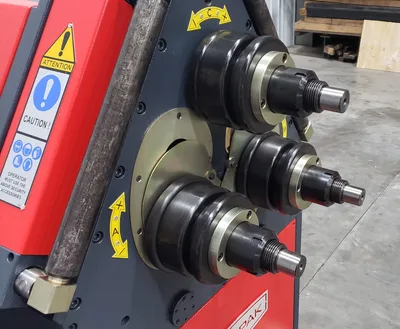

One set standard rolls
Manual lubrication
Lower rolls hydraulic moveable up and down
Digital display for lower rolls

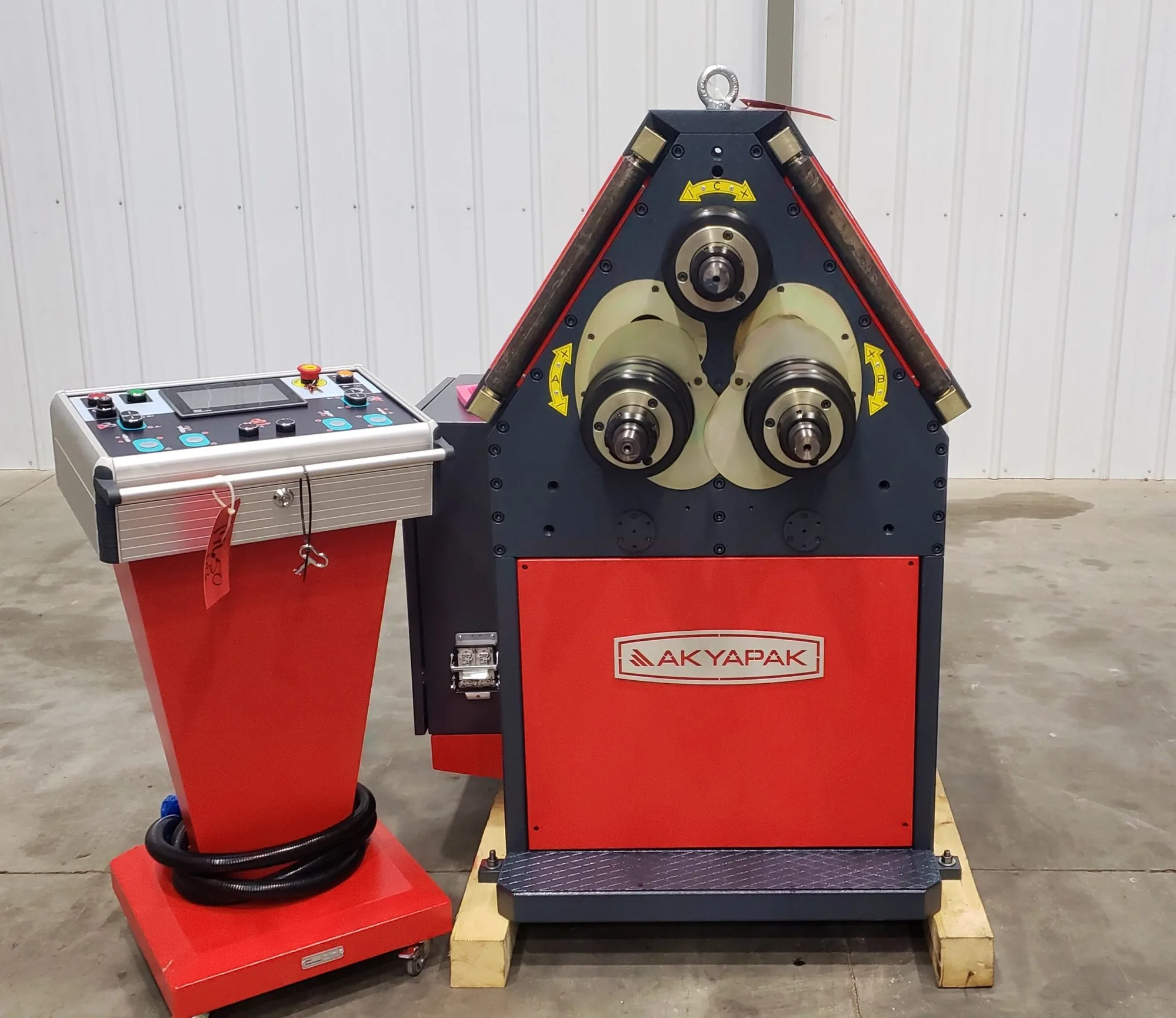

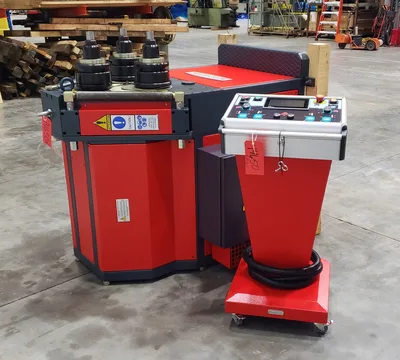

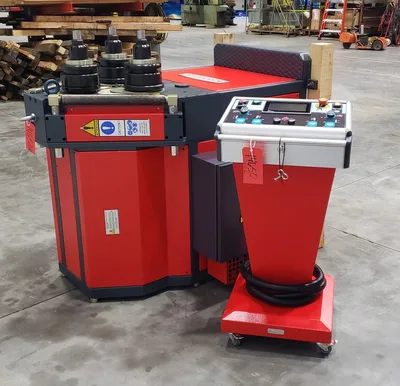

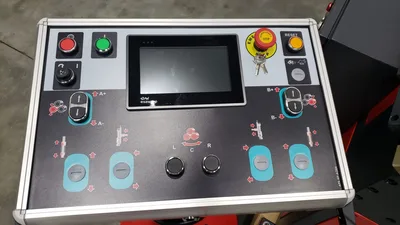

Separate and moveable control panel

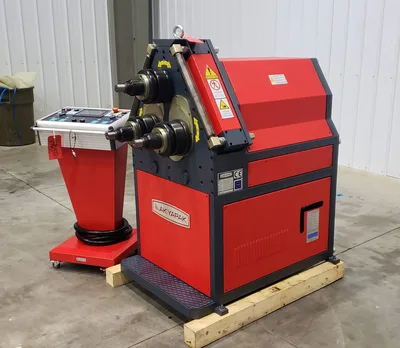

Horizontal & vertical working
Suitable for CE
Digital Readout

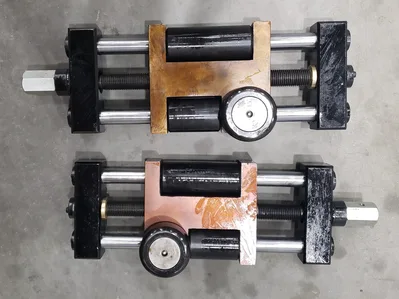

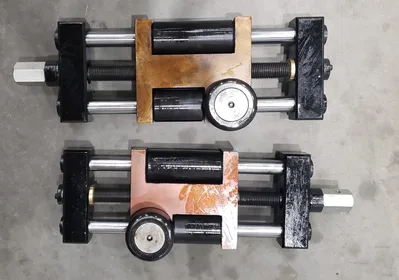

Guide Rolls for Angle Material
TECHNICAL DETAILS
Roll Diameter Ø inch 6.97”
Shaft Ø inch 2.36”
Rolling Speed ft/min 21’ per/min.
Motor Power hp 5.4
Length Ft 4.6’
Height Ft 4.76’
Width Ft 3.12’
Weight Ibs 2,140
Bend Type
Size
inch
Diameter
min Ø
Dies
Angle Leg Out
L1-1/8” x 1/8”
L2” x 2” x ¼”
10
40
AD
Angle Leg In
L1-1/8” x 1/8”
L2” x 2” x 3/16”
16
40
AD
T Section Let Out
2”x2”x1/4”
24”
A
T Section Leg In
2”x2”x1/4
28”
A
Flat, Hard Way
1-3/4” x 3/8”
2-3/8”x 13/16”
3-1/8”x1”
9”
20”
83”
A
Flat, Easy Way
2” x 3/16”
3”x3/4”
8”
48”
A
Square
5/8”
1-3/8”
14”
55”
A
Round
3/4”
1-1/2”
14”
32”
B
Tube
1×0.060
2-3/4”x0.078”
8”
63”
B
Pipe
3/4” sch. 40
2”sch.40
8”
40”
B
Rectangle Tube
3-1-1/8”x0.0125”
266”
B
Square Tube
2” x 0.125”
157”
B
Channel Easy Way
Legs Out
3” x 2”x1/4”
32”
D
Channel Easy Way
Legs In
3”x2”x1/4”
32”
D
