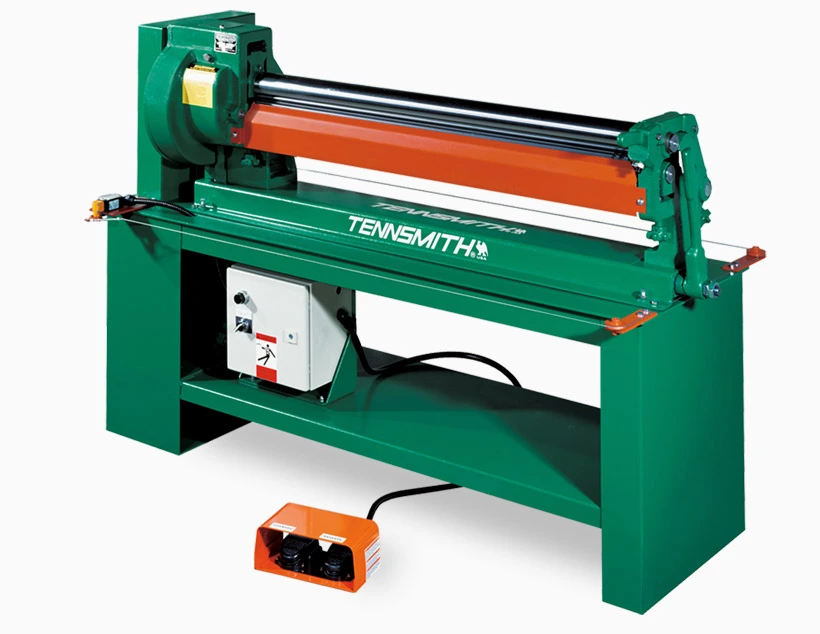

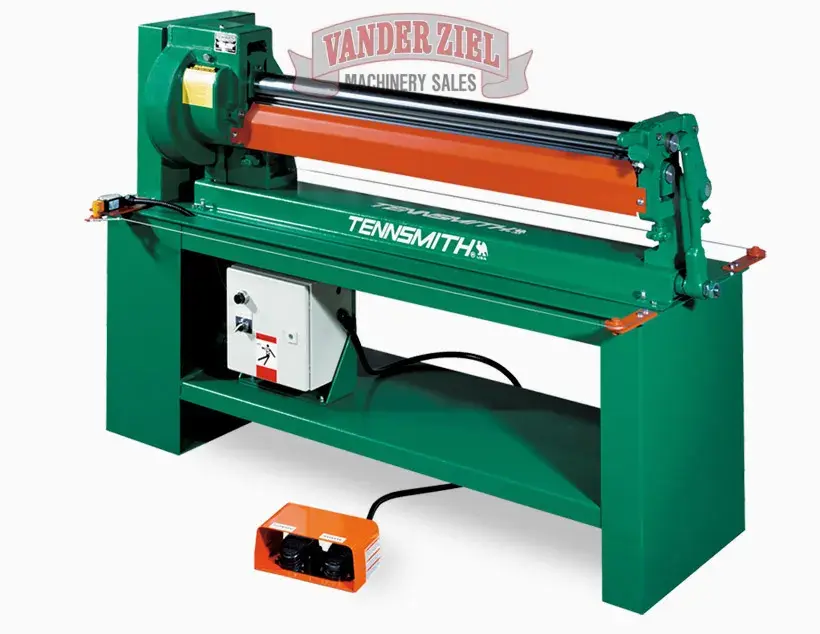

NEW TENNSMITH SR48P

Tennsmith 4′ x 16 GA Manual Initial Pinch Slip Roll, Model SR48P – NEW

Specifications:
Drive power for the SR48P is supplied by a heavy-duty, industrial quality gear reduction motor and roller chain directly to the gear train. The roll drive is controlled by a toggle action, shrouded foot pedal for instant forward and reverse action. The drive motor is equipped with an electromagnetic brake to prevent roll creep and over-forming.Electrical and operator safety features include a full-length, front and back wire cable safety mechanism which instantly stops the rolls when tripped; two magnetic motor starters; fully enclosed electrical box with pilot light; insulated reinforced conduit for all wiring; and fully enclosed drive train. The rolls and gears are mounted in hardened bronze bushings for long life and precision operation.
Powered Slip Roll
SR48P
Capacity, mild steel
16 gauge
1.6 mm
Maximum forming length
49 in.
1244 mm
Diameter of rolls
3 in.
76 mm
Minimum forming radius
1-1/2 in.
38mm
Wire grooves
3/8, 1/2, 5/8 in.
9.5, 12.7, 15.8mm
Gearing ratio
4 : 1
Roll speed
22 RPM/17.28 sfpm
Motor-230/640v, 3-phase, 60Hz
3/4 hp
Dimensions LxWxH
77 x 29 x 50 in.
1956 x 737 x 1270 mm
Shipping weight
1100 Ibs.
499 kg
