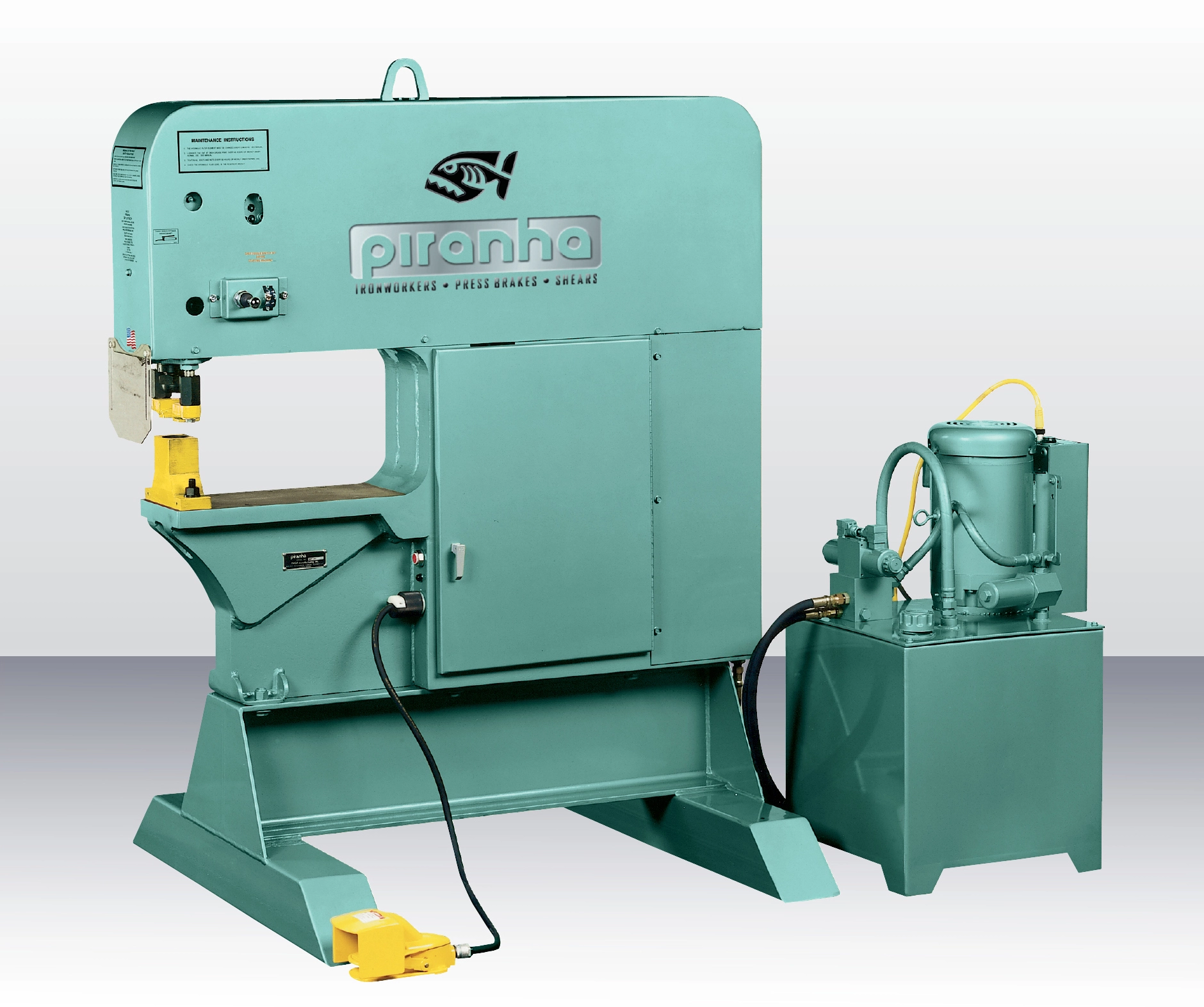

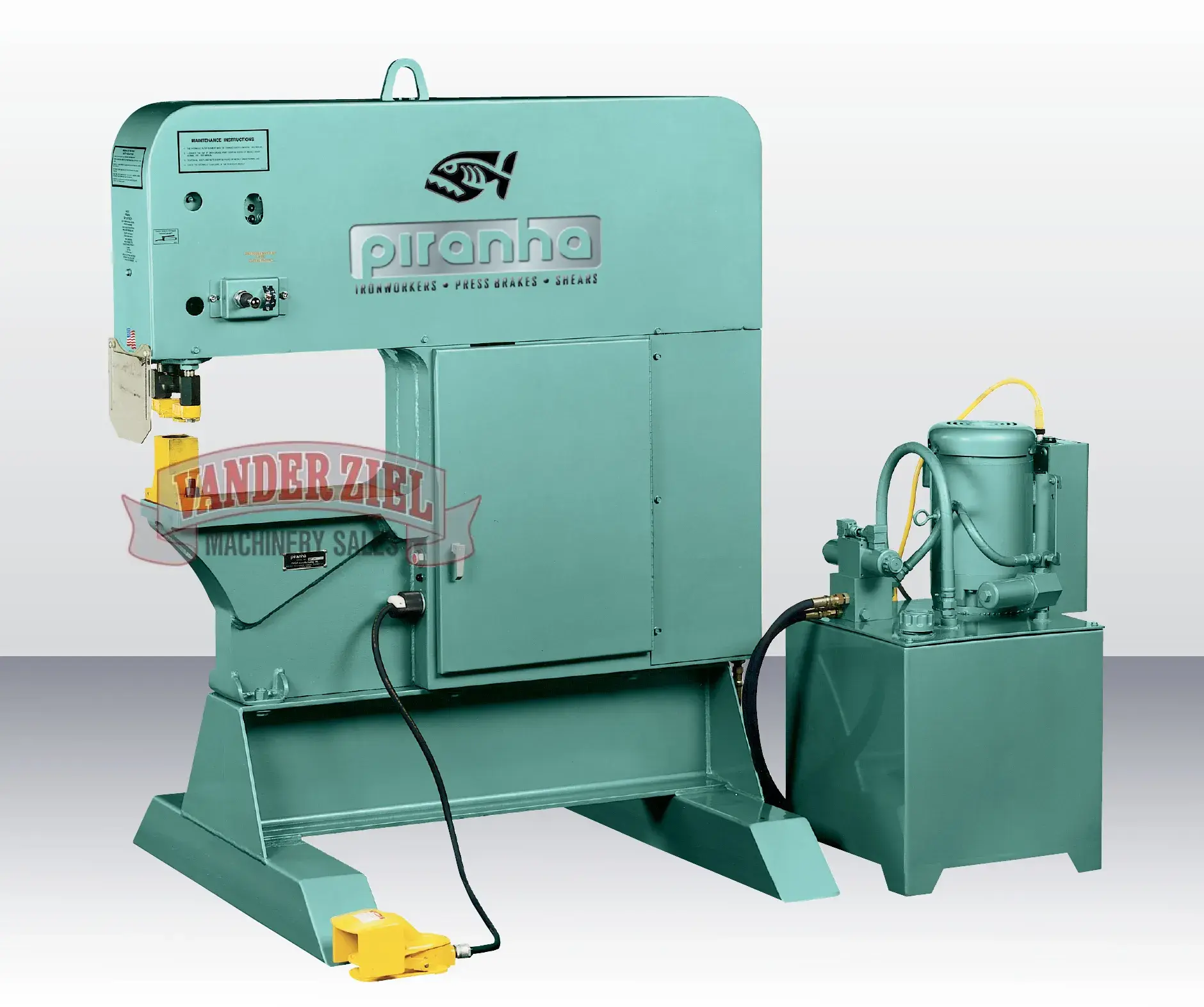

NEW PIRANHA SEP-120

Piranha 120 Ton Single End Punch Press, Model SEP-120

Specifications:
Throat Depth
21.5″
Coper-Notcher (Tons)
(Max.)
N/A
Open Height
12-1/4″
Bending Attach. (Optional)
18″
Closed Height
w/o Die Block
10-1/4″
Punch End
Strokes Per Minute
16 @ 1″
Stroke Length
2″
Work Station Height
Approx.
42″
Platen Table Size (D-W)
20″ x 10″
Hydraulics
Pump GPM
System R/V PSI
10.5
2850
Punch
Hole Size (Max. Material)
Max. Hole Size (Material)
120 Tons
1-1/2″ (1″)
5″ (1/4″)
Fluid Capacity (gal.)
30
Plate Shear
N/A
Motor Std. 230/460 3 Ph.
1800 RPM
Opt Phase & Voltage Available
10 HP 3 Ph.
Angle Shear
N/A
Dimensions (Net)
W-L-H Approx.
48″ x 60″ x 72″
Bar Shear
Round (min. to max.)
Square (min. to max.)
N/A
Weight (Net)
Lbs. Approx.
4100
