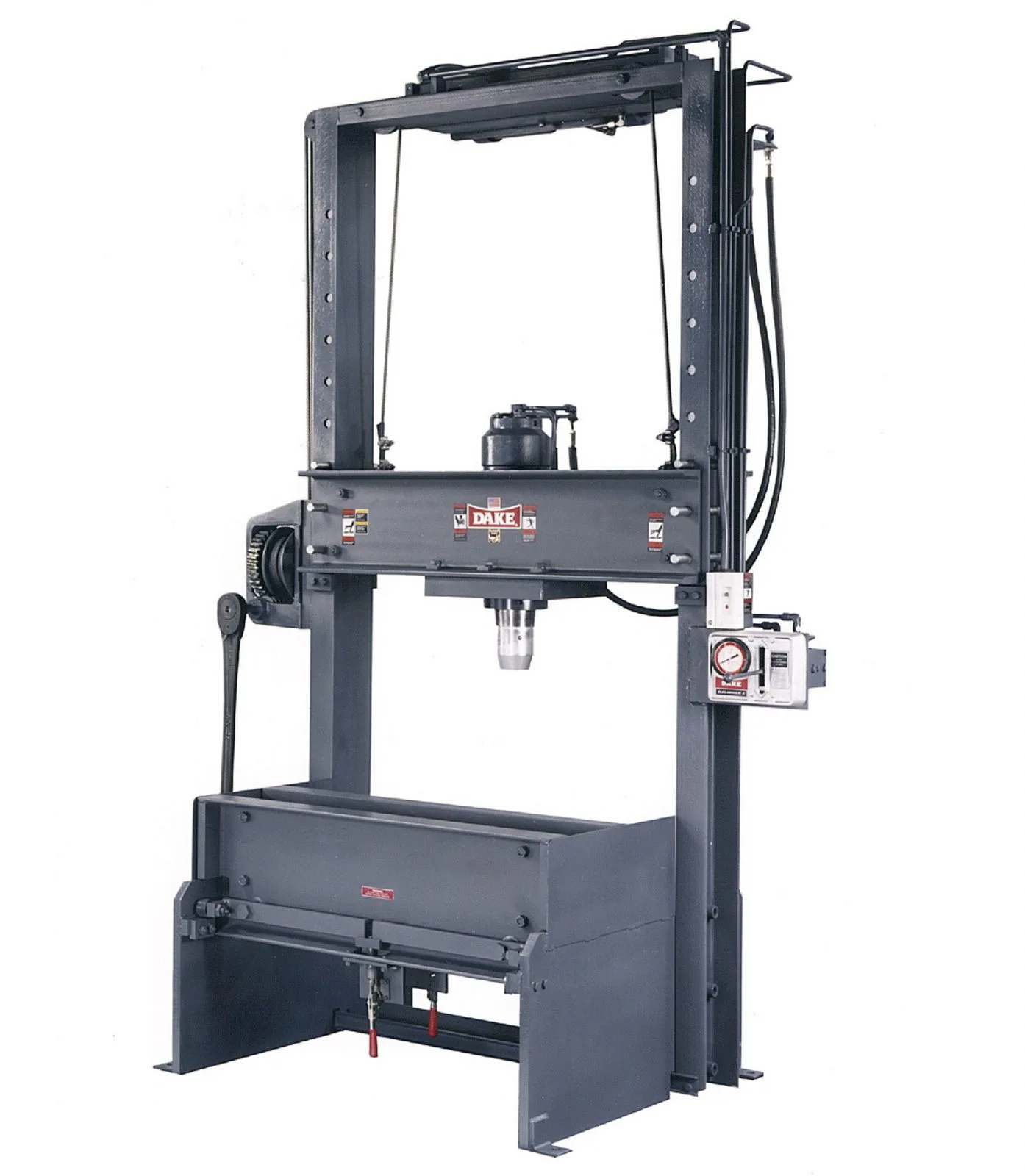

Dake 75 Ton Moveable Table H-Frame Press, Model 42-502 – NEW
Number
942502
Capacity
75 tons
Operation
Elec-Draulic
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
44”
Width between table channels
8-¼”
Minimum ram to table
13”
Maximum ram to table
43-⅜”
Ram travel
10”
Screw Travel
n/a
Horizontal workhead travel
n/a
Footprint
47” x 52”
Height
116”
Weight
2,950 lbs
Base
47” x 52”
Ram advance speed
n/a
Pressing speed
5 ipm
RPM
n/a
Air Pressure
n/a
