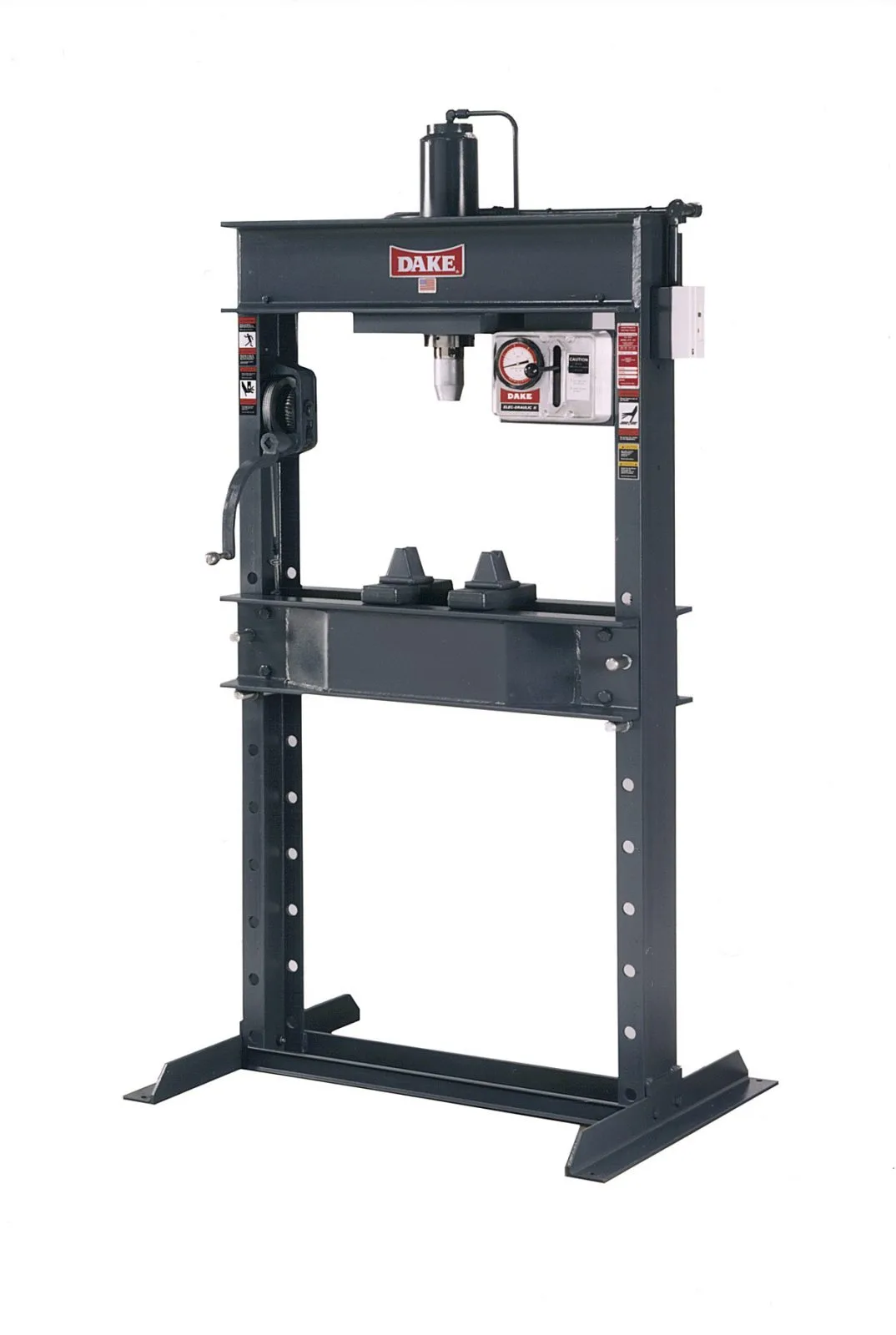

Dake 75 Ton Elec-Draulic II H-Frame Press, Model 8-075 – NEW
Number
908075
Capacity
75 tons pressing, 28 tons pulling
Operation
Electric
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
44″
Width between table channels
8-1/4″
Minimum ram to table
7-5/8″
Maximum ram to table
37-5/8″
Ram travel
10″
Screw Travel
n/a
Horizontal workhead travel
n/a
Footprint
55-1/2″ x 36″
Height
86″
Weight
1,950 lbs
Base
55-1/2″ x 36″
Ram advance speed
n/a
Pressing speed
5 ipm
RPM
1,800
Air Pressure
n/a
