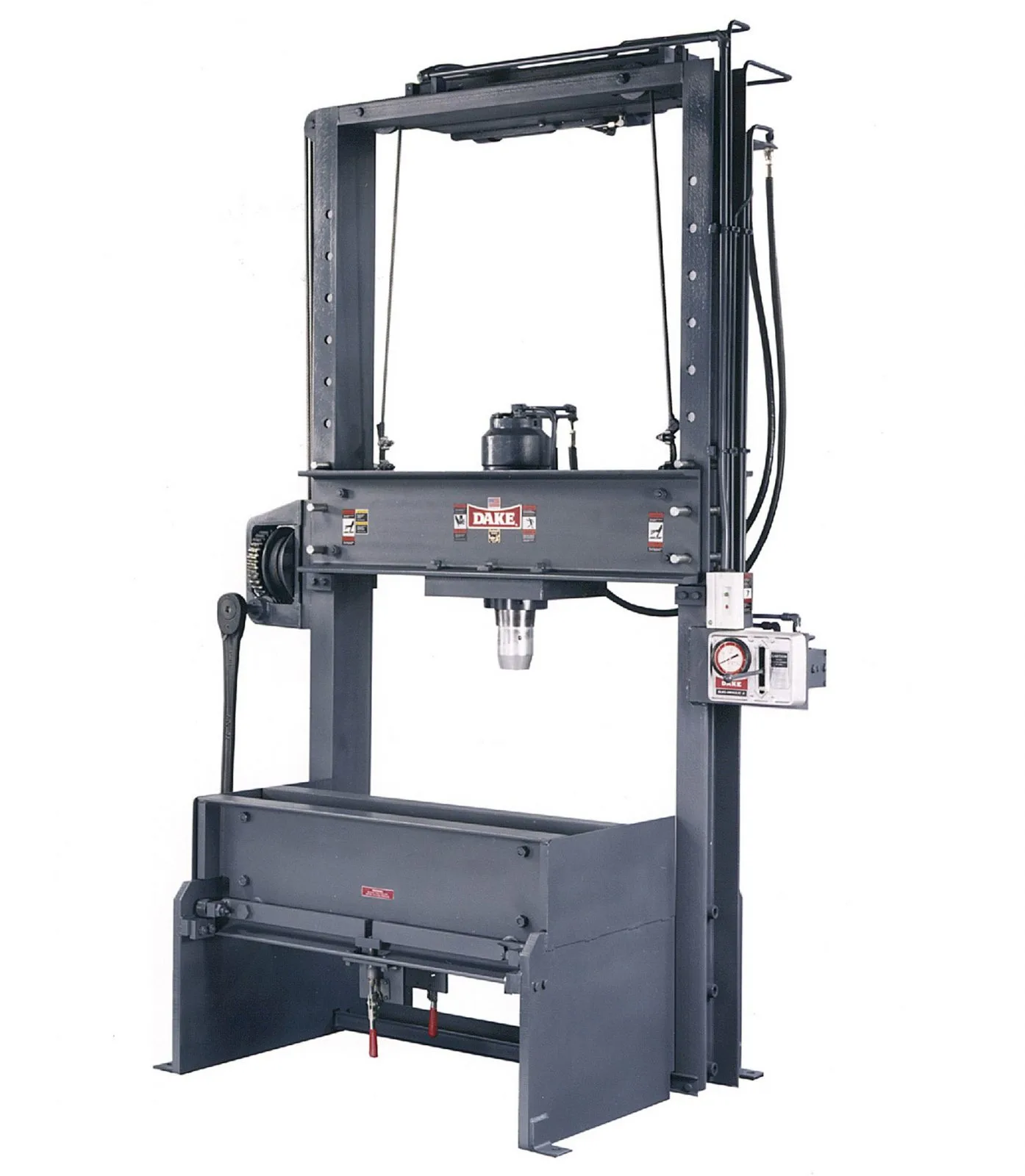

Dake 50 Ton Moveable Table H-Frame Press, Model 42-501 – NEW
Number
942501
Capacity
50 tons
Operation
Elec-Draulic
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
32-¾”
Width between table channels
7-¼”
Minimum ram to table
14”
Maximum ram to table
44”
Ram travel
10”
Screw Travel
n/a
Horizontal workhead travel
n/a
Footprint
37” x 43”
Height
114”
Weight
2,200 lbs
Base
37” x 43”
Ram advance speed
n/a
Pressing speed
8 ipm
RPM
n/a
Air Pressure
n/a
