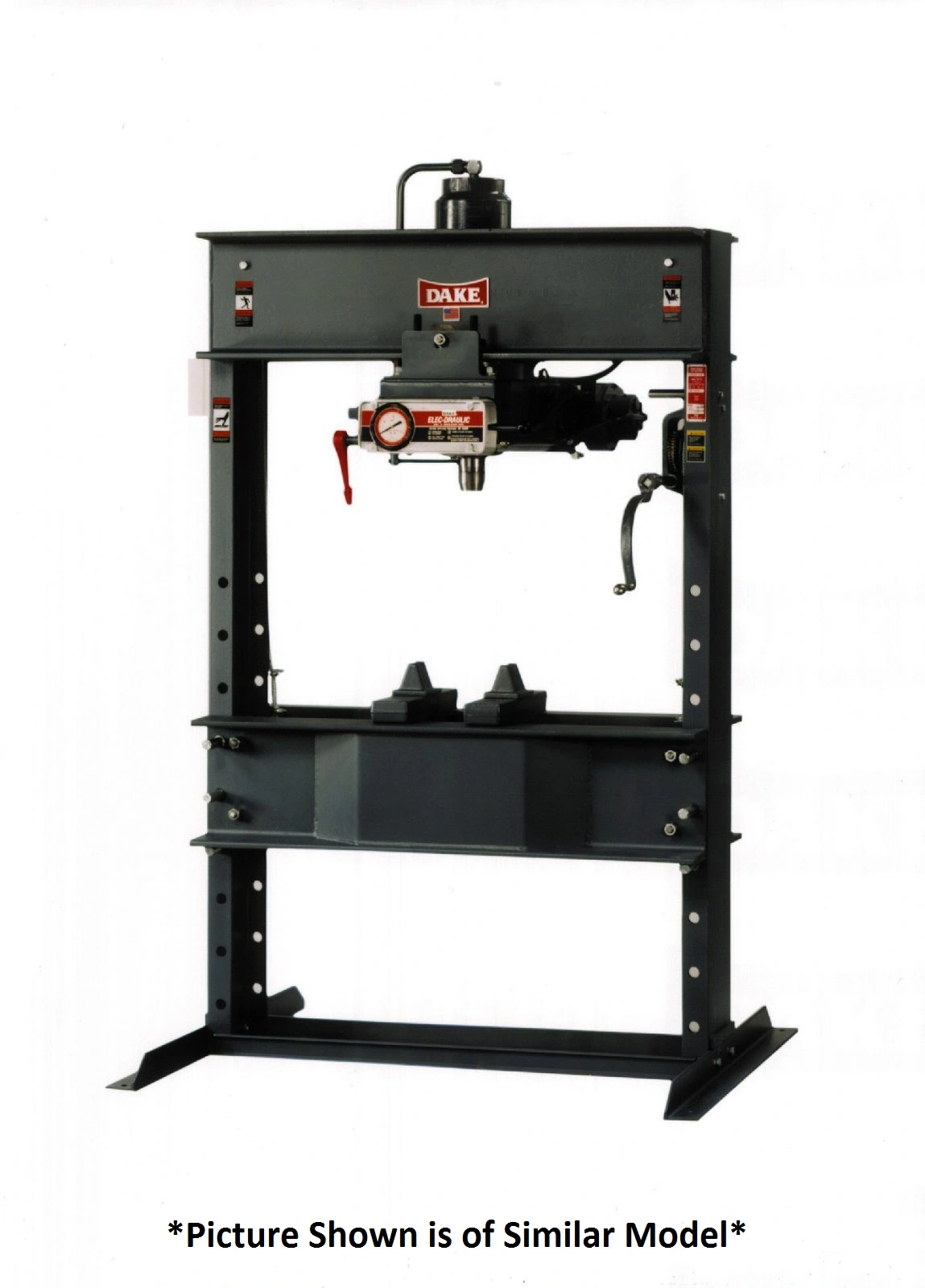

Dake 75 Ton Elec-Draulic I H-Frame Press, Model 5-075 – NEW
Number
905075
Capacity
75 tons
Operation
Electric
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
44″
Width between table channels
8-1/4″
Minimum ram to table
6″
Maximum ram to table
36″
Ram travel
10″
Screw Travel
n/a
Horizontal workhead travel
24″
Footprint
55-1/2″ x 36″
Height
86″
Weight
1,650 lbs
Base
55-1/2″ x 36″
Ram advance speed
28 ipm
Pressing speed
5 ipm
RPM
1,800
Air Pressure
n/a
