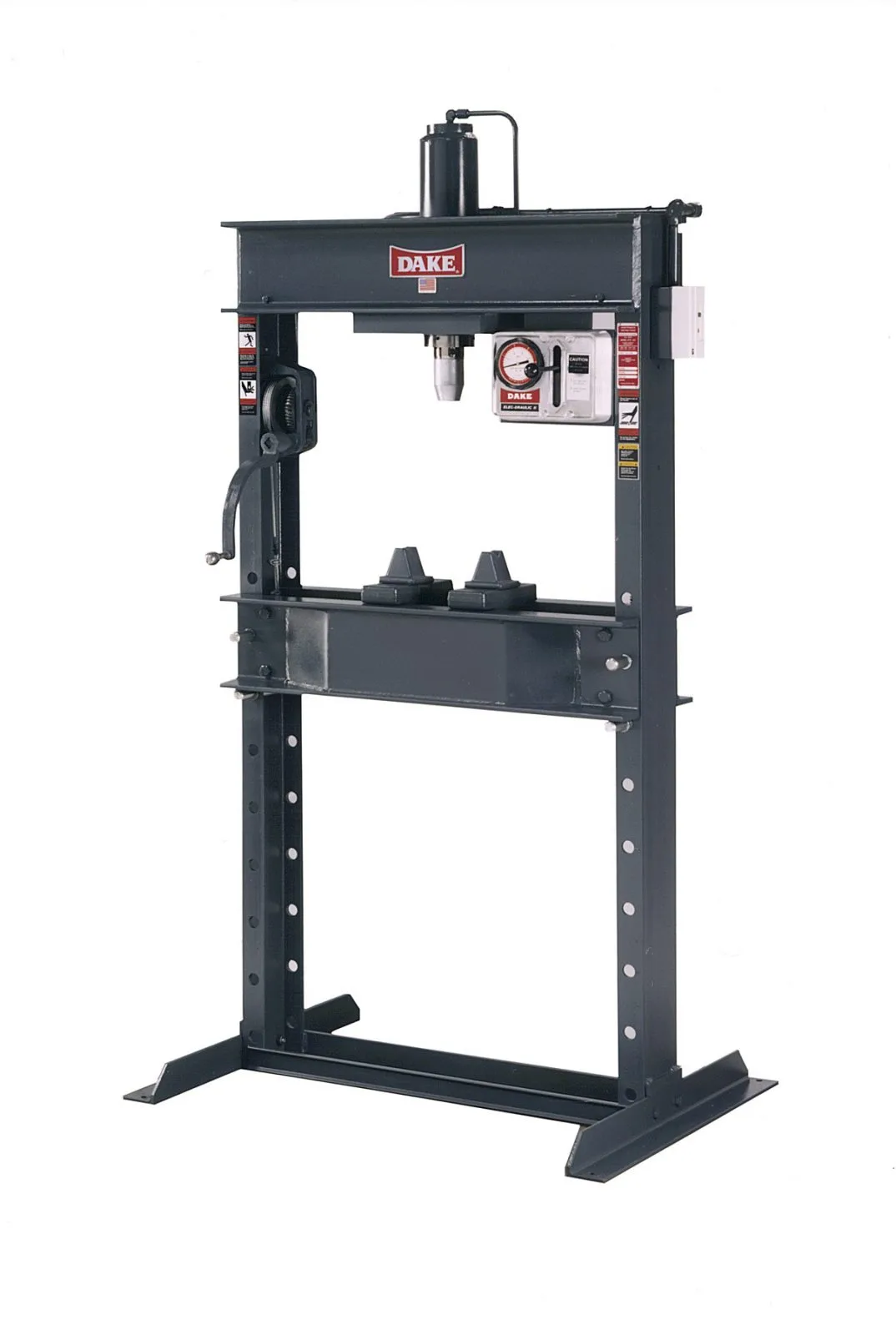

Dake 50 Ton Elec-Draulic II H-Frame Press, Model 8-050 – NEW
Number
908050
Capacity
50 tons pressing, 18 tons pulling
Operation
Electric
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
32-3/4″
Width between table channels
7-1/4″
Minimum ram to table
10-1/8″
Maximum ram to table
45-1/8″
Ram travel
10″
Screw Travel
n/a
Horizontal workhead travel
n/a
Footprint
43-1/2″ x 36″
Height
86″
Weight
1,360 lbs
Base
43-1/2″ x 36″
Ram advance speed
n/a
Pressing speed
8 ipm
RPM
1,800
Air Pressure
n/a
