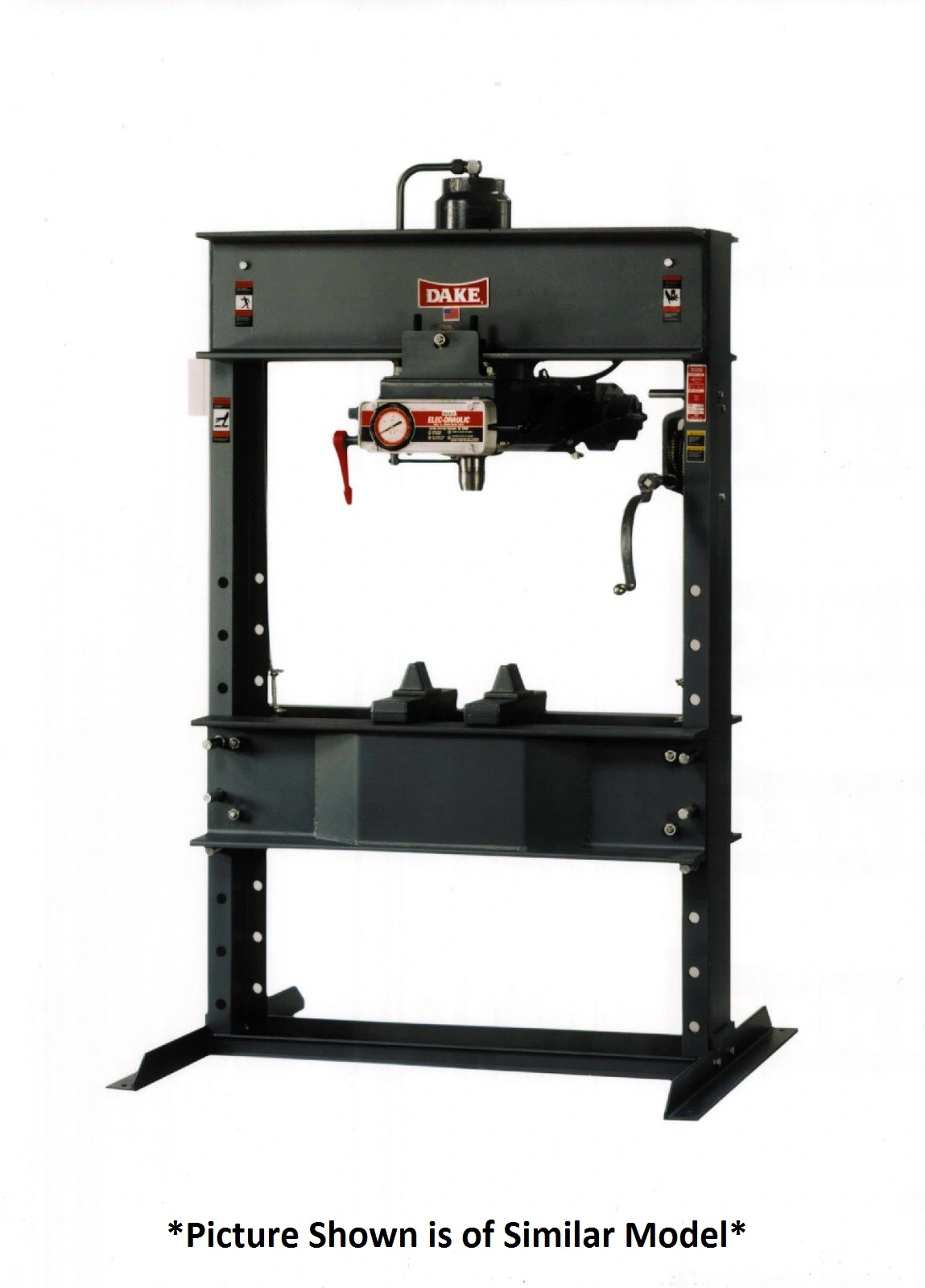

Dake 50 Ton Elec-Draulic I H-Frame Press, Model 5-050 – NEW
Number
905050
Capacity
50 tons
Operation
Electric
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
32-3/4″
Width between table channels
7-1/4″
Minimum ram to table
5″
Maximum ram to table
40″
Ram travel
10″
Screw Travel
n/a
Horizontal workhead travel
14-3/8″
Footprint
43-1/2″ x 36″
Height
87″
Weight
1,320 lbs
Base
43-1/2″ x 36″
Ram advance speed
40 ipm
Pressing speed
7 ipm
RPM
1,800
Air Pressure
n/a
