NEW DAKE 8-025

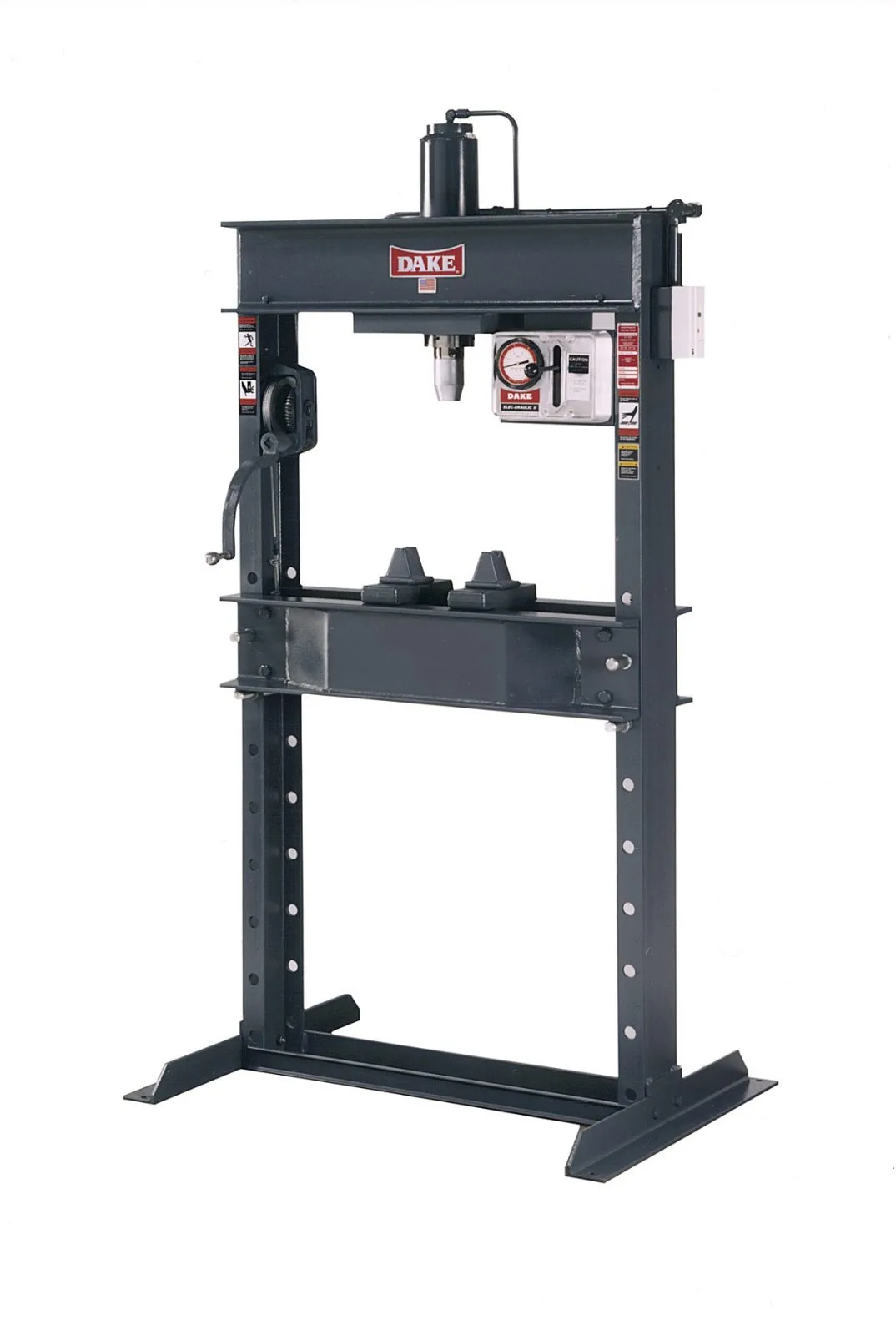

Dake 25 Ton Elec-Draulic II H-Frame Press, Model 8-025 – NEW

Number
908025
Capacity
25 tons pressing, 10 tons pulling
Operation
Electric
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
32-3/4″
Width between table channels
7-1/4″
Minimum ram to table
11-3/4″
Maximum ram to table
46-3/4″
Ram travel
10″
Screw Travel
n/a
Horizontal workhead travel
n/a
Footprint
43-1/2″ x 36″
Height
83″
Weight
1,060 lbs
Base
43-1/2″ x 36″
Ram advance speed
n/a
Pressing speed
15 ipm
RPM
1,800
Air Pressure
n/a
