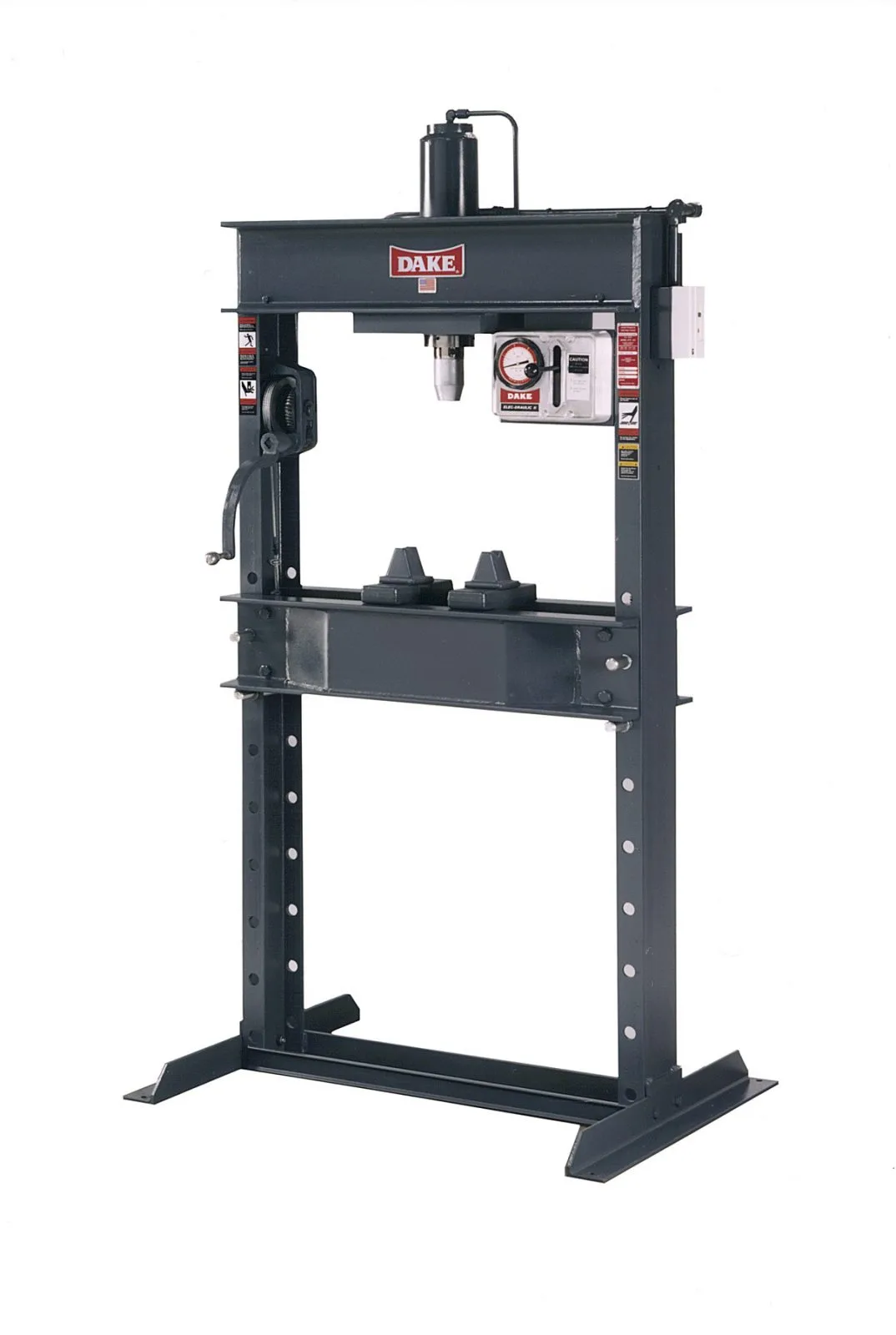

Dake 150 Ton Elec-Draulic II H-Frame Press, Model 8-150 – NEW
Number
908150
Capacity
150 tons pressing, 65 tons pulling
Operation
Electric
Horsepower
10
Voltage
220V/440V, 3-Phase
Width between uprights
48″
Width between table channels
12-1/4″
Minimum ram to table
11-3/4″
Maximum ram to table
31-3/4″
Ram travel
16″
Screw Travel
n/a
Horizontal workhead travel
n/a
Footprint
66″ x 42″
Height
95″
Weight
3,620 lbs
Base
66″ x 42″
Ram advance speed
n/a
Pressing speed
17 ipm
RPM
1,800
Air Pressure
n/a
